Guide to Using the Lonsdor BDC03 Solder-Free Clip

The Lonsdor K518 PRO and K518 Series programmers are capable of copying both genuine BMW BDC3 keys and BCP keys. However, the method differs:

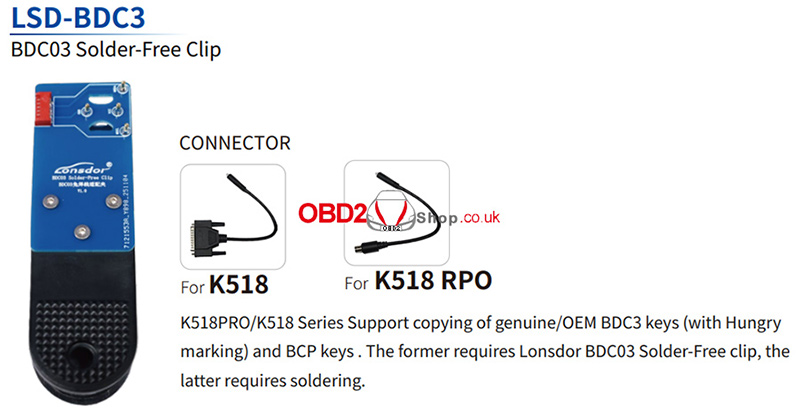

For genuine/OEM BDC3 keys, the Lonsdor BDC03 Solder-Free Clip is the required tool.
For BCP keys, the traditional soldering method is still necessary.

This guide focuses on cloning a genuine BMW BDC3 key using the solder-free clip.

Step-by-Step Instructions:

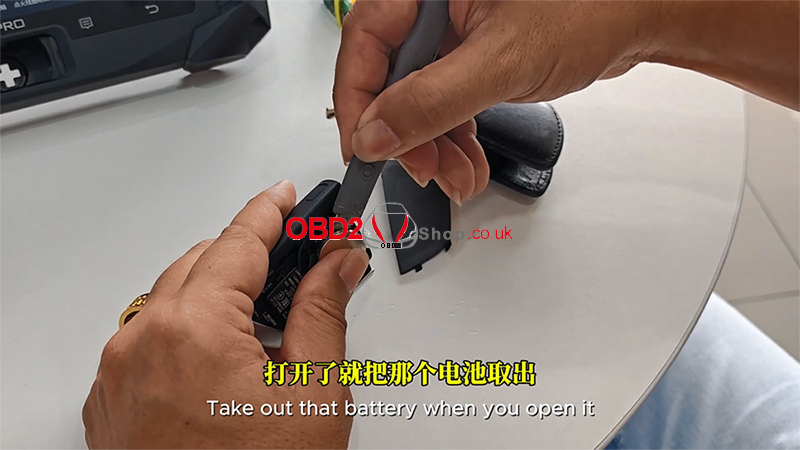

1. Disassemble the Original Key
Begin by taking apart the original car key. Open the back cover and remove the battery to access the internal circuit board.

2. Identify a Genuine BMW BDC3 Key

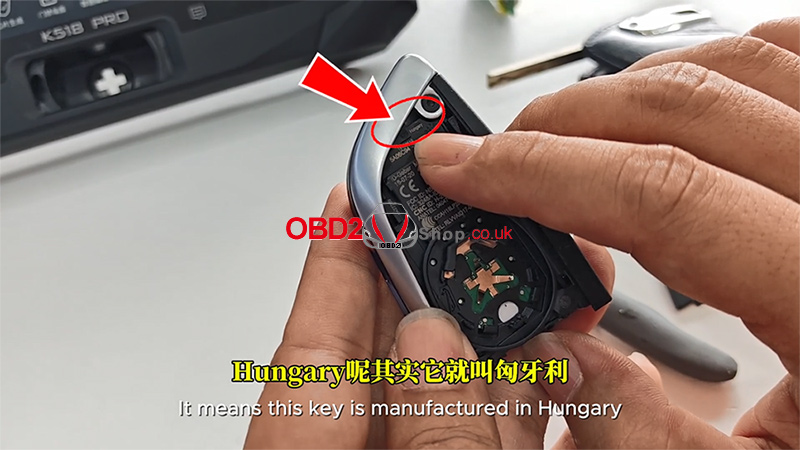

Upon opening the key, look for the marking "Hungary" on the circuit board. This indicates the key is a genuine BMW BDC3 unit manufactured in Hungary.

Important: Only genuine BMW BDC3 keys with this "Hungary" marking are compatible with this cloning procedure.

3. Connect the Solder-Free Clip

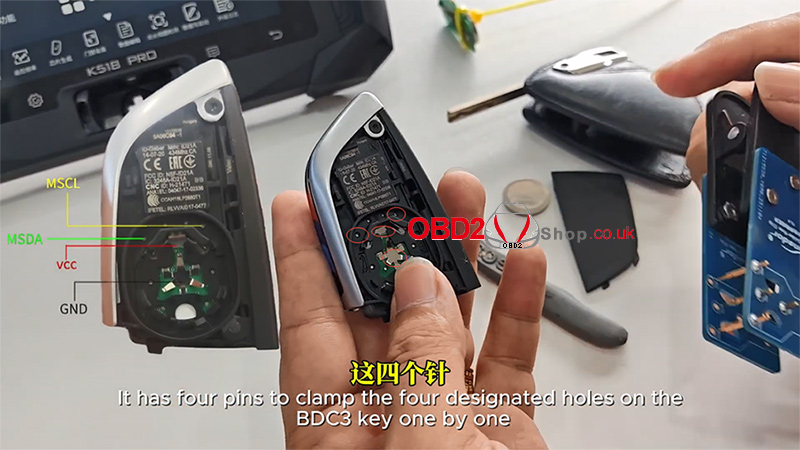

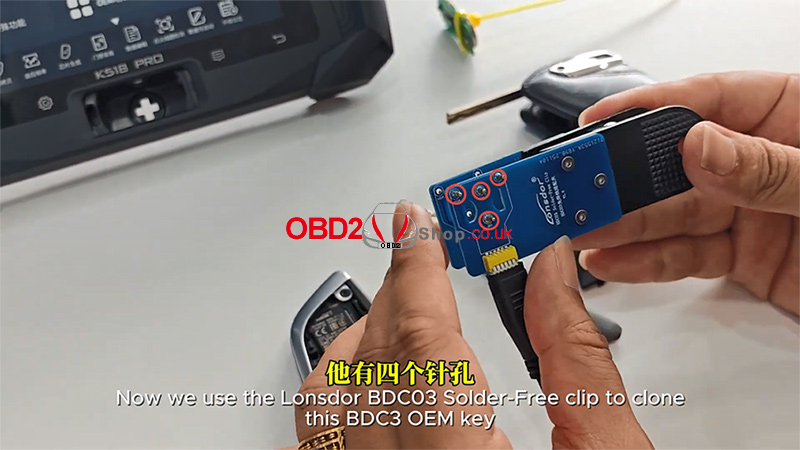

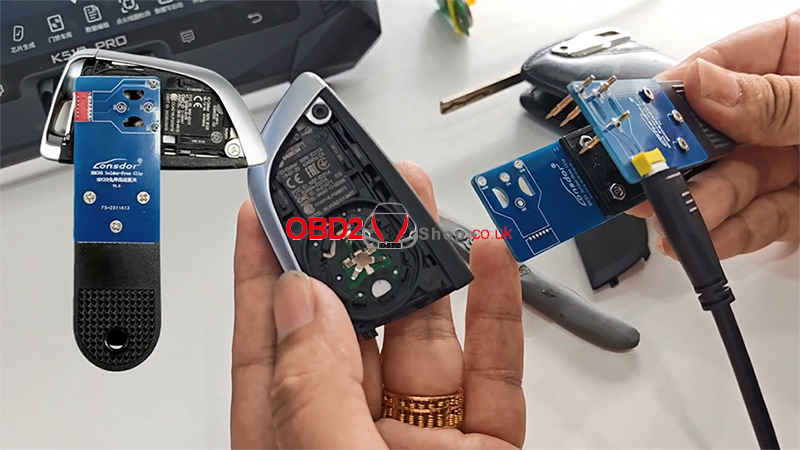

Take the Lonsdor BDC03 Solder-Free Clip. It features four pins designed to match four specific holes on the BDC3 key's circuit board.

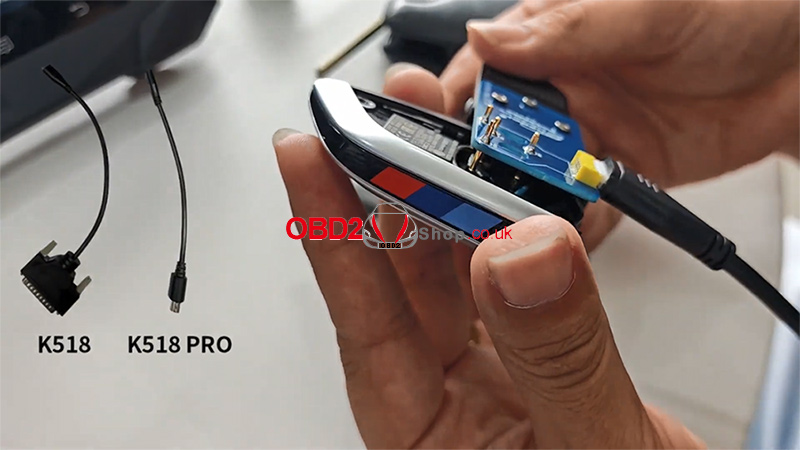

Carefully align these four pins with the four designated holes on the key. Once aligned, clamp the clip securely onto the BMW BDC3 keyboard.

4. Connect to the Lonsdor Tool

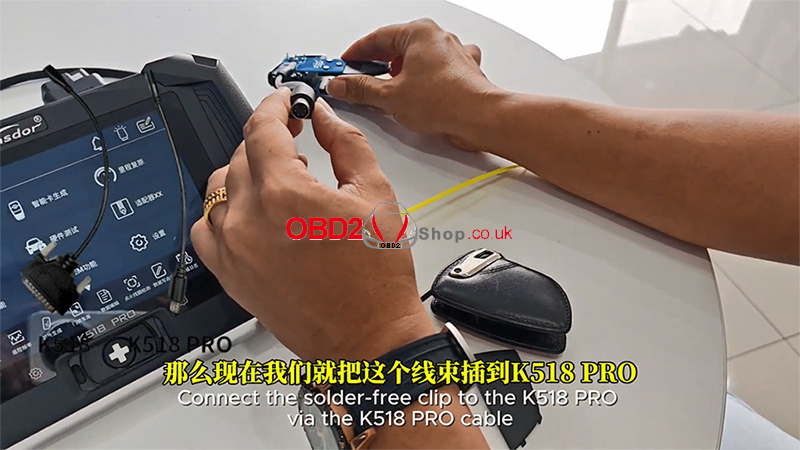

Connect the other end of the solder-free clip to your Lonsdor K518 PRO or K518 device using the appropriate cable.

You are now ready to proceed with the cloning process via the Lonsdor device's software interface.

For more details, you can refer to this video:
https://youtu.be/AZv0E0rCYs4

www.obd2shop.co.uk

Oznake: lonsdor bdc03 solder-free clip

11.12.2025. u 09:04 • 0 Komentara • Print • # • ^

srijeda, 10.12.2025.

OBDSTAR New Arrival: CAN DIRECT-V2 Introducing

The OBDSTAR CAN DIRECT-V2 is a powerful tool designed to bypass gateway modules found in many modern vehicles, providing direct access to the CAN bus when standard OBD diagnostic ports are blocked. This direct connection allows technicians to perform proximity key programming, cluster calibration, CAN frame acquisition, and various automotive repair functions with ease. The device is also fully compatible with third-party diagnostic tools, making it an essential addition for automotive locksmiths and workshops.

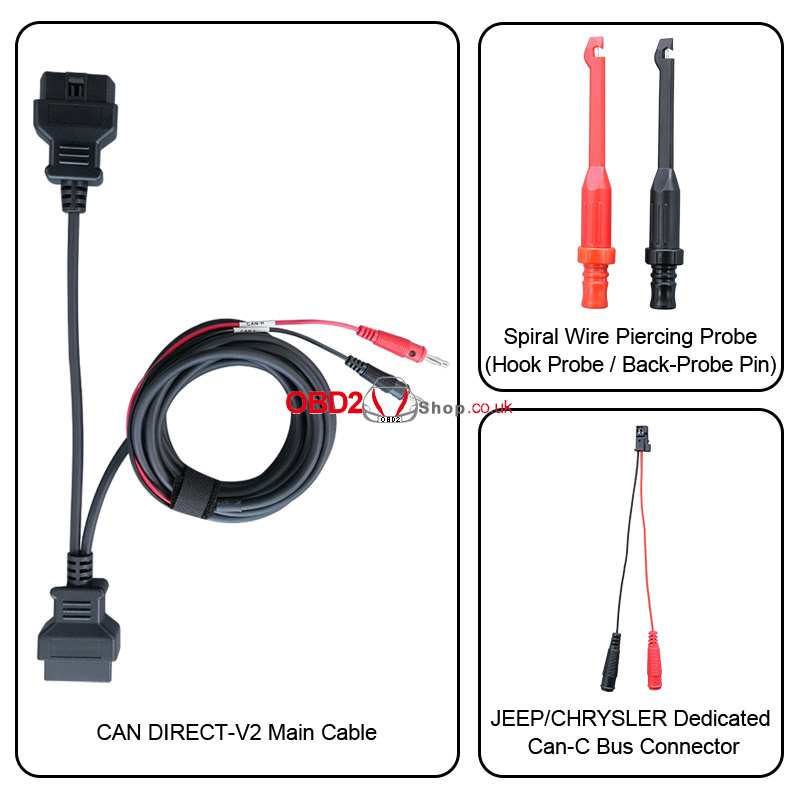

Included Components:
1. CAN DIRECT-V2 Main Cable
2. Spiral Wire Piercing Probe (Hook Probe / Back-Probe Pin)
3. JEEP/CHRYSLER Dedicated CAN-C Bus Connector

IMMO:
TOYOTA/LEXUS (proximity key programming)
Support below (4A) models:
2019- TOYOTA COROLLA
2021- TOYOTA COROLLA CROSS
2021- TOYOTA COROLLA SPORT
2021- TOYOTA COROLLA SPORT HV
2021- TOYOTA COROLLA TOURING
2021- TOYOTA COROLLA TOURING HV
2021- TOYOTA COROLLA HV
2019- TOYOTA LEVIN
2021- TOYOTA LEVIN HV
2021- TOYOTA ALLION
2021- TOYOTA LEVIN

Support below (8A) model:
2021- TOYOTA Yaris Cross

Support below (8A-A8) models:
2018- TOYOTA PRADO
2018- TOYOTA LAND CRUISER
2018- TOYOTA CROWN
2018- TOYOTA HIGHLANDER

Support below (8A-A9) models:
2018- TOYOTA CAMRY
2018- TOYOTA C-HR
2018- TOYOTA IZOA
2018- TOYOTA PRIUS
2018- TOYOTA VELLFIRE
2018- TOYOTA ALPHARO
2018- LEXUS RX450H
2018- LEXUS LC

Support below (8A-AA) models:
2018- TOYOTA HIGHLANDER HV
2018- TOYOTA RAV4
2018- TOYOTA RAV4 HV
2018- TOYOTA AVALON
2018- TOYOTA CROWN KLUGER HV
2018- LEXUS ES
2018- LEXUS UX
2018- LEXUS RX
2018- LEXUS LS

Support model below:
2021- TOYOTA COROLLA CROSS HV

RENAULT
2020- RENAULT Clio 5
2020- RENAULT Captur
2020- RENAULT Arkana
2020- RENAULT Kangoo
2020 RENAULT Espace
2021- RENAULT Scenic
2020- RENAULT Zoe
2022- RENAULT Traffic
2021- RENAULT MEGANE 4 PH2

PSA
2023- PEUGEOT 308 Prox (For UDS+ systems)
2023- PEUGEOT 208 Prox (For UDS+ systems)

OPEL
2022- OPEL Astra L (For UDS+ systems)

FCA
2018- DODGE Charger
2019- DODGE Ram
2018- DODGE Challenger
2018- DODGE Durango
2018- DODGE Journey
2018- JEEP Renegade Prox
2019- JEEP Renegade
2019- JEEP Compass Blade
2018- JEEP Compass Prox
2018- JEEP CHEROKEE
2018- JEEP GRAND CHEROKEE
2018- JEEP WRANGLER
2018- JEEP RENEGADE
2017- CHRYSLER Pacifica Prox
2015- CHRYSLER 300/300C
2018- MASERATI models, including GHIBLI, LEVANTE, and QUATTROPORTE, etc.
2018- FIAT models, including 500, 500C, and 500X, etc.
2018- Alfa Romeo models, including GIULIA, STELVIO, and TONALE, etc.

Cluster Calibration Function:
Support below TOYOTA/LEXUS dashboard types:
2019- LEXUS ES S6J3001 DENSO
2023- LEXUS GX550 R7F701401 DENSO
2023- LEXUS LM350H R7F701401 DENSO
2019- LEXUS LS S6J3001 DENSO
2023- LEXUS LS500 R7F701401 DENSO
2022- LEXUS LX600 S6J3001 DENSO
2023- LEXUS NX R7F701441 DENSO
2023- LEXUS NX350 R7F701401 DENSO
2023- LEXUS RX R7F701441 DENSO
2023- LEXUS RX350 R7F701401 DENSO
2023- LEXUS RX450H R7F701401 DENSO
2023- LEXUS RX500H R7F701401 DENSO
2018- LEXUS UX S6J3001 DENSO
2019-TOYOTA 4RUNNER S6J3001 DENSO
2019-TOYOTA ALLION S6J3001 DENSO
2023-TOYOTA ALPHARD R7F701401 DENSO
2018-TOYOTA AVALON S6J3001 DENSO
2024-TOYOTA AVANZA R7F701442
2023-TOYOTA AVANZA VELOZ Q S6J3001 DENSO
2023-TOYOTA BX4 R7F701441 DENSO
2023-TOYOTA BZ4 R7F701441 DENSO
2023-TOYOTA BZ4X R7F701401 DENSO
2023-TOYOTA BZ4X R7F701441 DENSO
2024-TOYOTA CAMRY R7F701401 DENSO(80)
2018-TOYOTA CAMRY S6J3001 DENSO
2018-TOYOTA CH-R S6J3001 DENSO
2024-TOYOTA COROLLA R7F701442
2023-TOYOTA COROLLA R7F701401 DENSO
2018-TOYOTA COROLLA S6J3001 DENSO
TOYOTA COROLLA R7F701441 DENSO
2023-TOYOTA COROLLA CROSS R7F701401 DENSO
2021-TOYOTA COROLLA CROSS S6J3001 DENSO
2024-TOYOTA CROWN R7F701401 DENSO
2018-TOYOTA CROWN KLUGER S6J3001 DENSO
TOYOTA FRONTLANDER R7F701441 DENSO
2019-TOYOTA GRANACE S6J3001 DENSO
TOYOTA GRANVIA S6J3001 DENSO
2020-TOYOTA HARRIER R7F701401 DENSO
2016-TOYOTA HARRIER S6J3001 DENSO
2019-TOYOTA HIACE S6J3001 DENSO
2023-TOYOTA HIGHLANDER R7F701401 DENSO(70)
2018-TOYOTA HIGHLANDER S6J3001 DENSO
2018-TOYOTA KLUGER S6J3001 DENSO
2024-TOYOTA LEVIN R7F701401 DENSO
2019-TOYOTA LEVIN S6J3001 DENSO
TOYOTA LEVIN R7F701441 DENSO
2019-TOYOTA LINSHANG S6J3001 DENSO
2023 TOYOTA RAIZE S6J3001 DENSO
2023-TOYOTA RAV4 R7F701401 DENSO
2019-TOYOTA RAV4 S6J3001 DENSO
2022 TOYOTA SIENNA R7F701401 FULL TFT
2019-TOYOTA SIENNA S6J3001 DENSO
2018-TOYOTA TACOMA S6J3001 DENSO
2023-TOYOTA TACOMA IV R7F701401 DENSO
2022-TOYOTA TUNDRA R7F701401 DENSO
2023-TOYOTA VELLFIRE III R7F701401 DENSO
2023 TOYOTA VENZA R7F701401 DENSO
2019-TOYOTA VENZA S6J3001 DENSO
2023-TOYOTA VIOS S6J3001 DENSO
2020-TOYOTA WILDLANDER R7F701401 DENSO
2019-TOYOTA WILDLANDER S6J3001 DENSO
2024-TOYOTA YARIS R7F701442
2020-TOYOTA YARIS R7F701441 DENSO
2019-TOYOTA YARIS CROSS S6J3001 DENSO
2019-TOYOTA YARIS IV S6J3001 DENSO

www.obd2shop.co.uk

Oznake: obdstar can direcT-V2

10.12.2025. u 09:53 • 0 Komentara • Print • # • ^

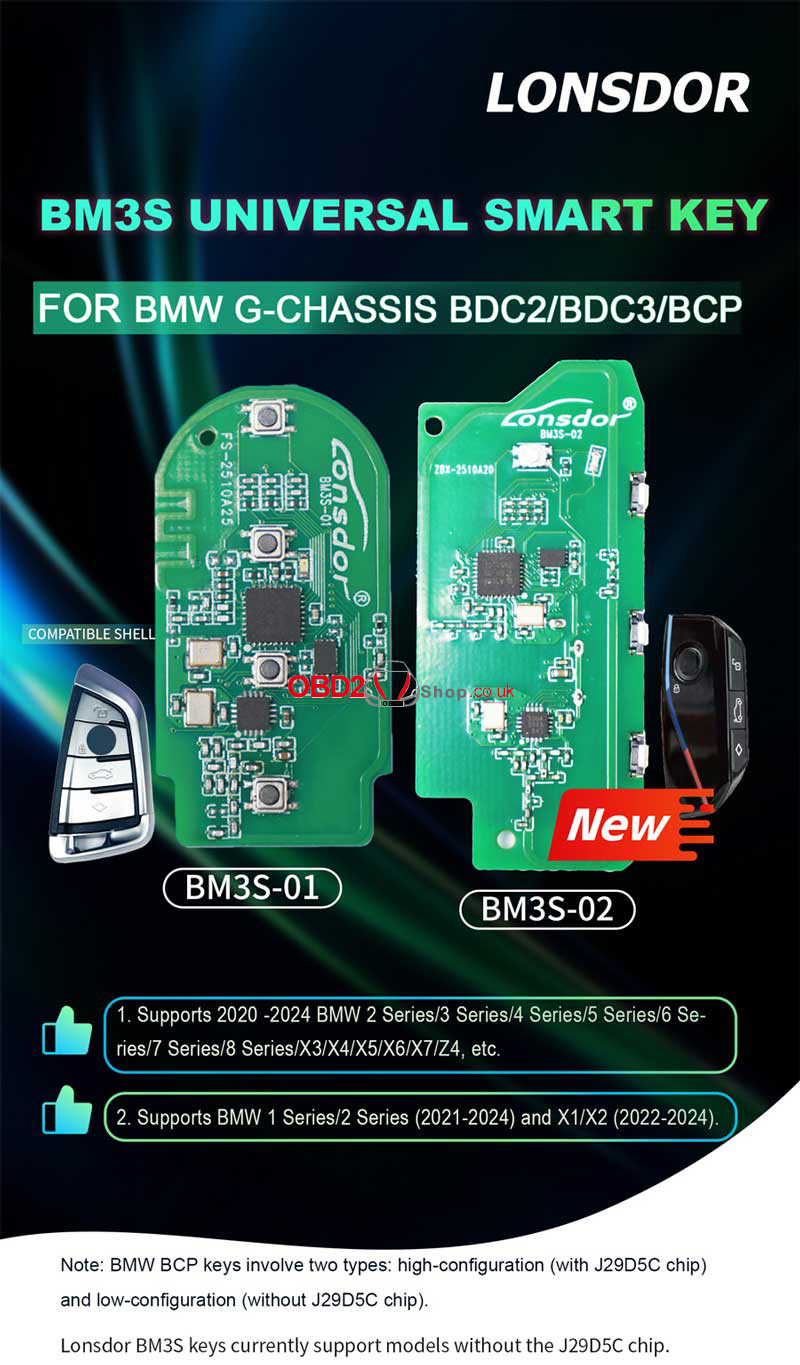

Lonsdor BM3S Smart Key: Unlock 2020-2024 BMW G-Chassis

Lonsdor introduces the next essential upgrade for every BMW owner - the BM3S Universal Smart Key. Designed for modern G-Chassis BMWs with BDC2, BDC3, and BCP system vehicles.

Wide Compatibility & Advanced Support
The Lonsdor BM3S seamlessly supports:
l2020-2024 BMW Models, including:
2, 3, 4, 5, 6, 7, 8 Series
X3, X4, X5, X6, X7
Z4 and more
l2021-2024 BMW 1 Series & 2 Series
l2022-2024 BMW X1 & X2

Core Advantages
1. Plug & Play Compatibility - Instantly works with mainstream 2020–2024 BMW models.

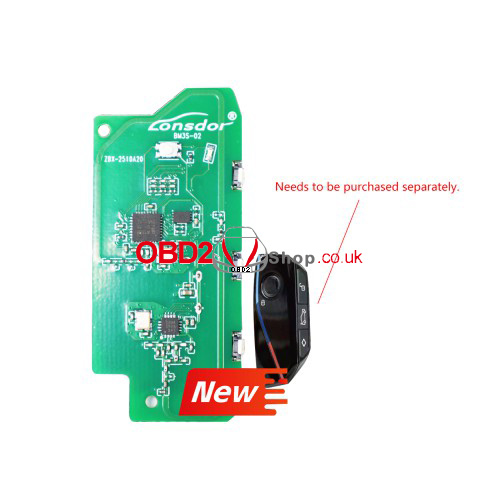

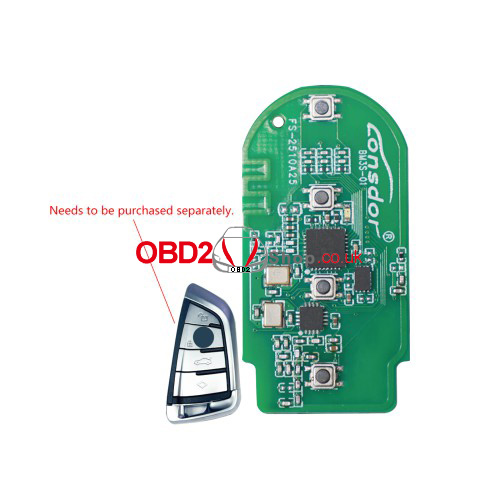

2. Two Circuit Board Options - Choose between BM3S-01 or BM3S-02 to match your style.
3. Targeted Performance - Engineered specifically for low-configuration BCP keys (without the J29D5C chip).
4. Professional Pairing - For seamless programming, pair it with the trusted Lonsdor K518 Key Programmer.

Who Is This For?
1. BMW owners who want a reliable spare or replacement smart key.
2. Anyone with a compatible 2020–2024 BMW model.
3. Those looking for a cost-effective and trusted alternative to dealership keys.

Ready to access more? Experience smarter control with Lonsdor.

www.obd2shop.co.uk

Oznake: lonsdor bm3s smart key

10.12.2025. u 07:44 • 0 Komentara • Print • # • ^

utorak, 09.12.2025.

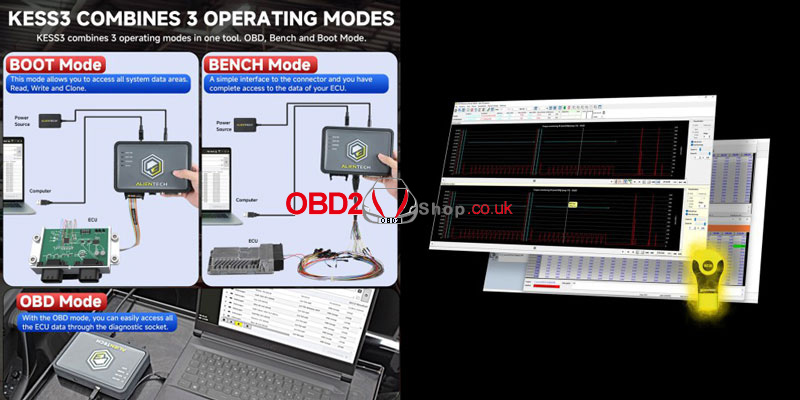

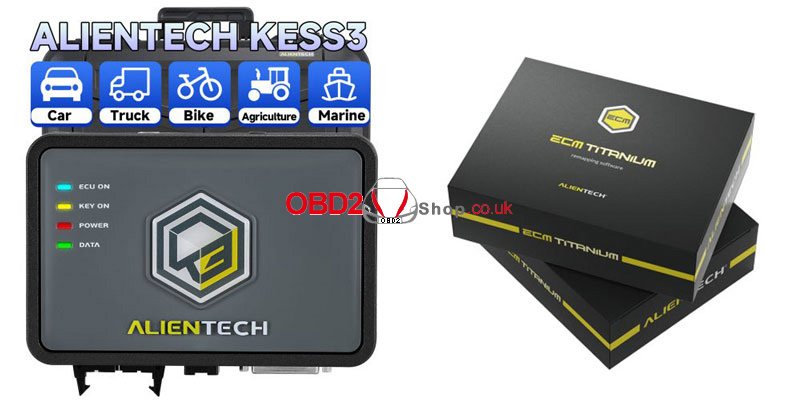

Alientech KESS V3 & ECU Titanium Up to 40% Off - 100 Units Only

Hurry! Only 100 Bundles Available. Sale Ends Jan 12, 2026. Tired of paying full price for premium diagnostics? This is your chance.

For a limited time only, Alientech's "Winter Special" slashes prices on the industry-leading KESS V3 tools and ECM Titanium software. Grab discounts of up to 40% before this exclusive offer disappears on January 12, 2026.

This offer is strictly limited to the first 100 redemption bundles. Don't miss out.

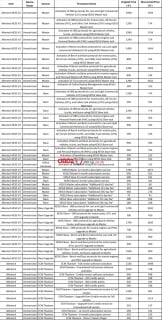

Flash Deal Highlights:

Why Buy Now?
1. Highest Discounts of the Year: This is the best pricing on Alientech products.
2. Limited Availability: Only 100 promotional bundles. First-come, first-served.
3. Universal Eligibility: Open to all - new customers, existing users, and even those with expired subscriptions.
4. Future-Proof Your Workshop: Acquire top-tier tools now, dominate the market tomorrow.

The clock is ticking. This offer vanishes on January 12, 2026, or when the 100-bundle limit is reached - whichever comes first.

Act Now. Upgrade Your Game. Dominate the Competition.

www.obd2shop.co.uk

Oznake: alientech kess v3

09.12.2025. u 07:18 • 0 Komentara • Print • # • ^

ponedjeljak, 08.12.2025.

ACDP (PC Version) – How to Quickly Find Saved Data

This guide explains how to locate saved vehicle data files in the ACDP PC Version.
Ensure your software is up to date before proceeding.

Software Version Requirements
To use this feature, ensure your ACDP software is updated to the following versions or above:
ACDP1 PC Version: V1.0.65+
ACDP2 PC Version: V2.0.9+
1. Launch the ACDP PC application.
2. Go to [Me] ’ [About].
3. Confirm that your ACDP1 or ACDP2 PC version meets the required update level.

Locate Saved Vehicle Data Files
1. Click [My File].
2. The system will automatically open the UserData folder.
3. This folder contains all vehicle model data files generated during your operations.
4. Browse and select the file you need.

Watch the full tutorial here:
https://youtu.be/-SoisU-0_Pw

For tools, updates, and more guides, visit:
www.obd2shop.co.uk

Oznake: yanhua mini acdp

08.12.2025. u 03:28 • 0 Komentara • Print • # • ^

petak, 05.12.2025.

OBDSTAR DC706 Guide: Reading & Writing Data for ZOTYE 6DCT360 TCM

This guide demonstrates the procedure for reading and writing Transmission Control Module (TCM) data on the ZOTYE 6DCT360 using the OBDSTAR DC706 ECU Tool (also compatible with Keymaster G3).

Required Tools & Equipment:
OBDSTAR DC706 / Keymaster G3
High-power DC Regulated Power Supply
Main Cable
ECU Clone Jumper
MP001 Programmer
ZOTYE 6DCT360 TCM Unit

Step-by-Step Procedure:
1. Preparation & Software
Ensure your OBDSTAR DC706 device is updated with the latest software version.
Launch the ECU Flasher application and select the Passenger Car > TCM category.
Use the search function (top right) to quickly locate the ZOTYE 6DCT360 model.

2. Guided Instructions & Connection
Tap the Guide section. Carefully review the Warm Reminder, Menu Description, Operation Guide, Connection Methods, and Special Notes.
Tap Pinout and select BENCH mode. Verify that the displayed module matches your TCM's appearance.
Tap Connector Pinout and connect your cables to the TCM accordingly, following the diagram.

3. Reading & Writing Data
After completing the physical connections, tap Start.
The tool will now establish communication with the ECU.
First, create a data backup (READ): Always back up the original data first. You can customize the backup file name. The storage location is shown on the left side of the screen.
Write data (WRITE): Proceed to write the required data file into the module. The file management system allows you to filter files by name, modification time, or size.
Verification: If the data file has not been modified, verification is typically not required.
Completion: Once the process is finished, the operation is complete.

For a visual walkthrough, follow along with our video guide:
https://youtu.be/CoQ7MjJfdtM

www.obd2shop.co.uk

Oznake: obdstar dc706

05.12.2025. u 07:26 • 0 Komentara • Print • # • ^

četvrtak, 04.12.2025.

How to Download and Upgrade Launch CR HD V2 Software

Keeping your Launch CR HD V2 device updated ensures optimal performance, improved compatibility, and access to the latest diagnostic features. Follow the step-by-step guide below to download and upgrade the software using the official Launch upgrade tool.

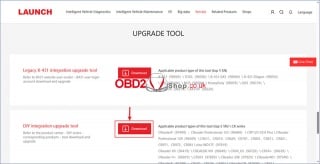

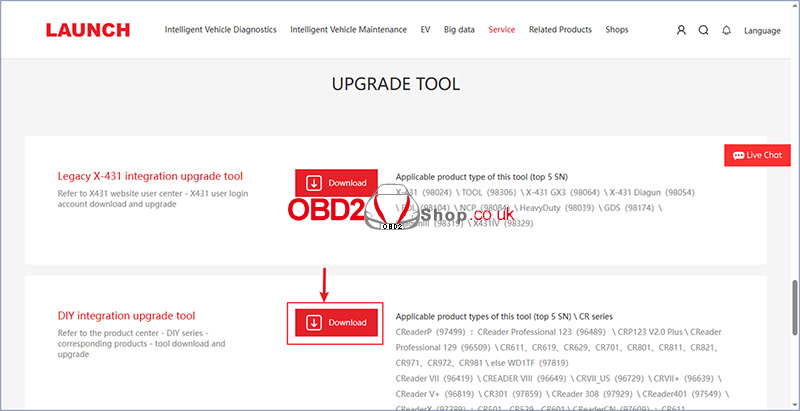

Step 1: Download the DIY Integration Upgrade Tool

Open your browser and go to the official Launch download page:
https://en.cnlaunch.com/download/
Locate the option labeled [DIY Integration Upgrade Tool].
Click [Download] to begin downloading the installer.

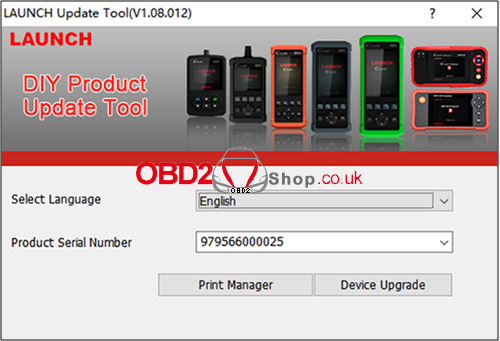

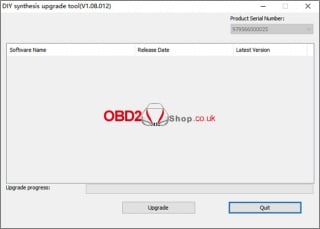

Step 2: Install and Open the Upgrade Tool

After the download is complete, install the software following the on-screen instructions.
Launch the client software.
Select your preferred language (English is set as the default).
Enter the serial number of your CR HD V2 device.
Click [Device Upgrade] to continue.

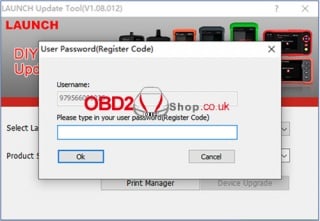

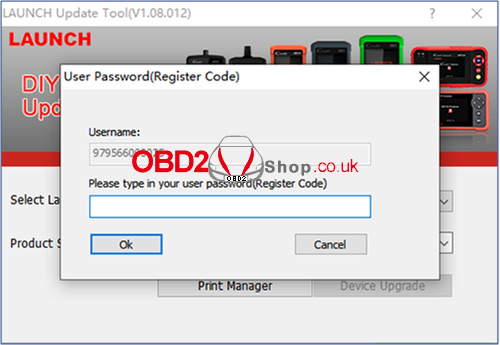

Step 3: Enter the Registration Code

The system will prompt you to enter the Registration Code.

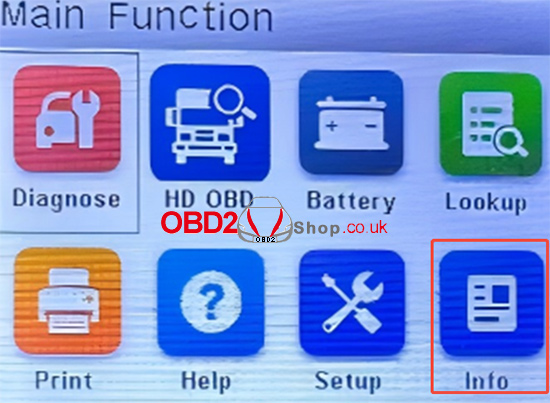

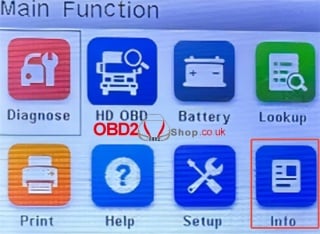

On your CR HD V2 device, go to:

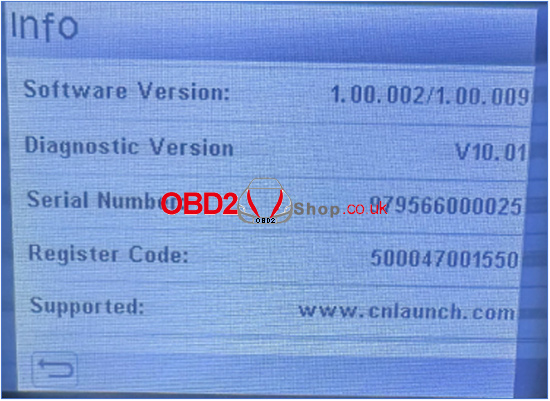

Function Homepage ’ Info ’ Register Code
Copy the registration code displayed on your device and enter it into the upgrade tool.

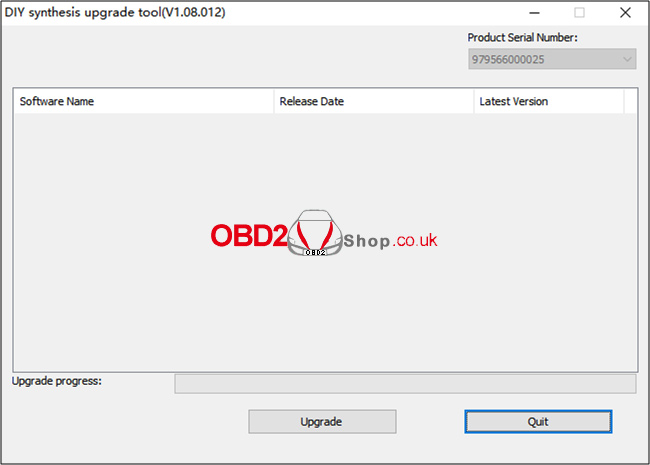

Step 4: Select and Install Available Updates

Once the registration code is verified, the available software versions will be displayed.
Select the updates you want to install.
If your device is already up to date, the software list will appear empty.
Click [Upgrade] to begin updating your device.

For more diagnostic tools and accessories, visit:
www.obd2shop.co.uk

Oznake: launch cr hd v2

04.12.2025. u 07:43 • 0 Komentara • Print • # • ^

ACDP Folder Export Tutorial on iOS (Version 3.6.5 and Above)

This guide will show you how to export folders from the Yanhua ACDP app on an iOS device. Before starting, make sure your ACDP app is updated to version 3.6.5 or above.

Step 1: Check Your App Version
Launch the ACDP app.
Go to [Me] ’ [About].
Confirm that your app version is 3.6.5 or higher.

Step 2: Open “My File”
Tap [My File].
All vehicle model folders you have worked on will appear on this page.
Locate the folder you want to export and prepare to compress it.
In this tutorial, we use the BMW folder as an example.

Step 3: Compress the Folder
Long-press the BMW folder.
Select [Zip].
A message will appear:
“A zip file has been created in the current directory: bmw.zip.”

Long-press the newly created bmw.zip file and tap [Share].

Step 4: Export Through Third-Party Software
Choose a third-party app for export.
In this example, we select WeChat.
Choose a contact and send the zipped file.

For a full demonstration, watch the video tutorial:
https://www.youtube.com/embed/NceJyQ56Bsk

www.obd2shop.co.uk

Oznake: yanhua acdp

04.12.2025. u 02:47 • 0 Komentara • Print • # • ^

srijeda, 03.12.2025.

Lonsdor K518 PRO Program 2024 Honda CR-V All Keys Lost OK

This tutorial guides you through programming a new smart key for the 2024 Honda CR-V when all keys are lost using the Lonsdor K518 PRO.

Tools Needed
Lonsdor K518 Key Programmer
OBD communication cable
Lonsdor Honda Smart Key

Step-by-Step Procedure
Step 1: Generate Smart Key
1. Connect K518 PRO to the OBD port, select: Generate Smart Key’ HONDA ’ CRV ’ CRV 4A
2. Place the new smart key in the card slot.
3. Click "Generate." Wait for "Generate successfully".

Step 2: Program All Keys Lost
1. Return to the main menu, choose: IMMO & Remote ’ HONDA ’ Select From Vehicle ’Asia ’ CR-V ’2023- ’ Smart Key’PUSH Button ’ All Smart Key Lost
2. Follow the on-screen prompts and click OK:
` Turn the ignition OFF.
a Place the new smart key inside the vehicle. Ensure no other keys are within 5 meters.
b Press the start button twice. Ignition will not turn on (all keys lost), press Cancel.
c Long-press the start button until ignition turns on.
d Click OK and enter the number of keys to program.
e Within 15 seconds, turn the ignition OFF, then back ON. Wait for the security light to go off, then click OK. Repeat the OFF/ON cycle within 15 seconds.
f The K518 tool will confirm: "Number of programmed keys."
The key programming is completed.

Step 3: Test the Key
1. Turn the ignition OFF and restart.
2. Test the key:
` Step on the brake and press the start button - the engine should start.
a Test remote lock/unlock - functions should work normally.

For more tutorials and automotive programming tips, stay tuned.
www.obd2shop.co.uk

Oznake: lonsdor k518 pro

03.12.2025. u 08:20 • 0 Komentara • Print • # • ^

utorak, 02.12.2025.

ACDP Folder Export Tutorial for Android (Version 3.0.142 and Above)

This guide explains how to export vehicle model folders from the ACDP Android app.

Step 1: Preparation
Ensure your ACDP application is updated to Version 3.0.142 or above. Launch the app and navigate to the [Me] tab, then tap [About] to verify your version.

Step 2: Access Your Files
From the [Me] section, tap [My files]. You will now see a list of all vehicle model folders you have previously worked on.

Step 3: Compress the Target Folder
Locate the specific folder you wish to export (e.g., BDC2_ICP_OBD_IMMO). Tap the icon on the right side of that folder and select the [Zip] option from the menu.
You can edit the name of the compressed file if needed. Confirm by tapping [OK].

Step 4: Share and Export
Once the compressed .zip file appears in the folder list, tap the icon on its right side and choose [Share].
You can now export the file using any third-party application. This tutorial uses WeChat as an example—simply select WeChat and send the file to a contact or group.

Video Guide:
https://www.youtube.com/embed/14EzE4BipXk

For more information, please visit www.obd2shop.co.uk

Oznake: yanhua mini acdp

02.12.2025. u 09:43 • 0 Komentara • Print • # • ^

OTOFIX D1 Review: Powerful Diagnostics Meets Affordable Price

For technicians seeking a reliable diagnostic solution, the OTOFIX D1 delivers professional performance at an affordable price. Powered by AUTEL, this Android tablet boasts serious diagnostic capabilities in a compact design. The OTOFIX Diagnostic Tool brings shop-grade capabilities to your toolbox without the complexity.

Key Features at a Glance:
1. Bi-Directional Control: Perform active tests, reset modules, and verify repairs with precision.
2. AUTEL-Grade Performance: Built with trusted algorithms and protocols used by industry leaders.

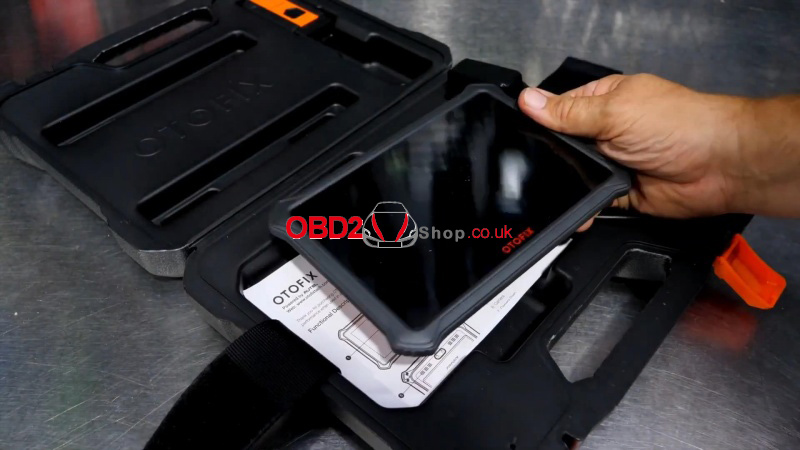

3. Portable & Lightweight: A slim Android tablet that’s easy to handle and transport.
4. 2 Years of Free Updates: No hidden costs - stay current with regular software and vehicle coverage updates.
5. Broad Vehicle Coverage: Supports over 140 manufacturers, including GM, BMW, Aston Martin, and more.

Real-World Performance:

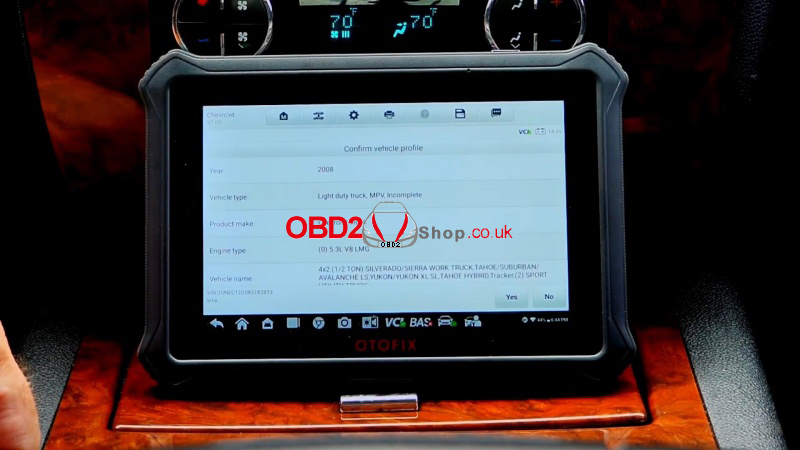

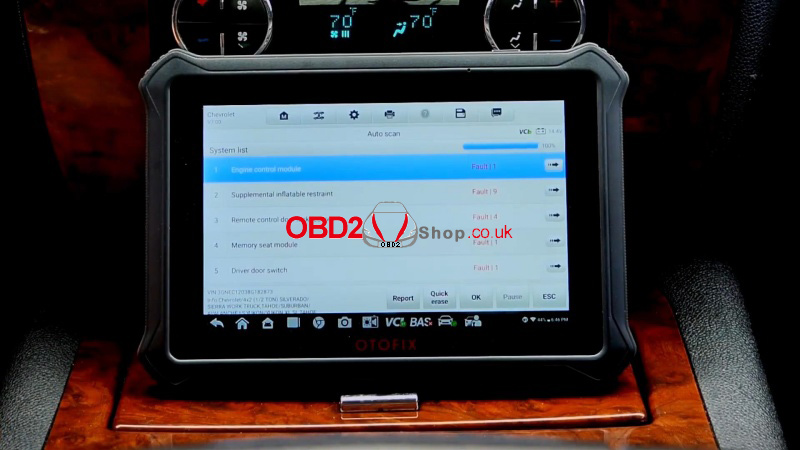

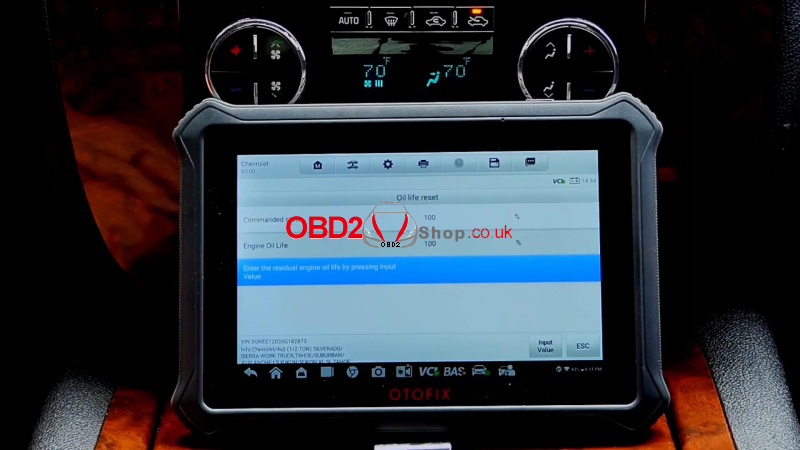

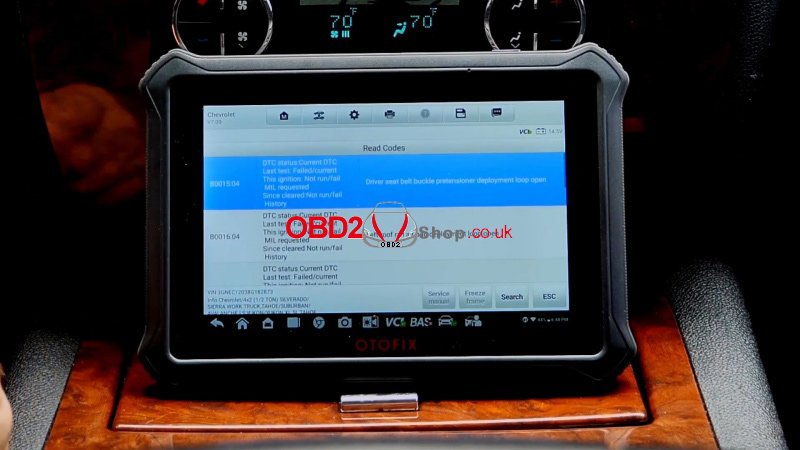

In a real-time test on a mid-2000s GM truck, the OTOFIX D1 quickly connected via Bluetooth, identified multiple fault codes (including airbag and TPMS issues related to a past rollover), and enabled live data streaming and module resets. Functions like oil life reset, injector testing, and tire size programming were easily accessible through the user-friendly interface.

Why We Recommend the OTOFIX D1:

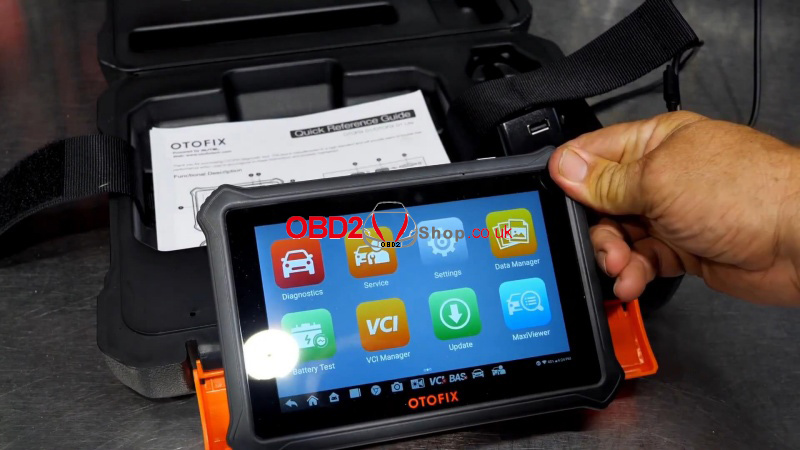

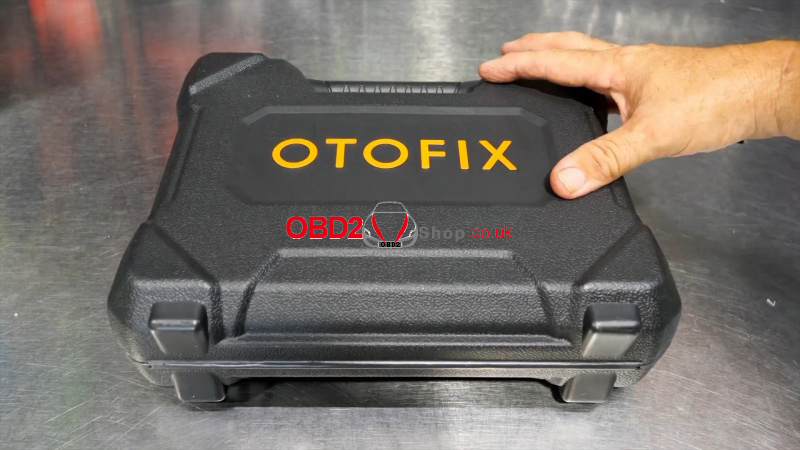

lEasy Setup & Updates
Out of the box, the tablet is ready to use. Updates are straightforward and included for two years.

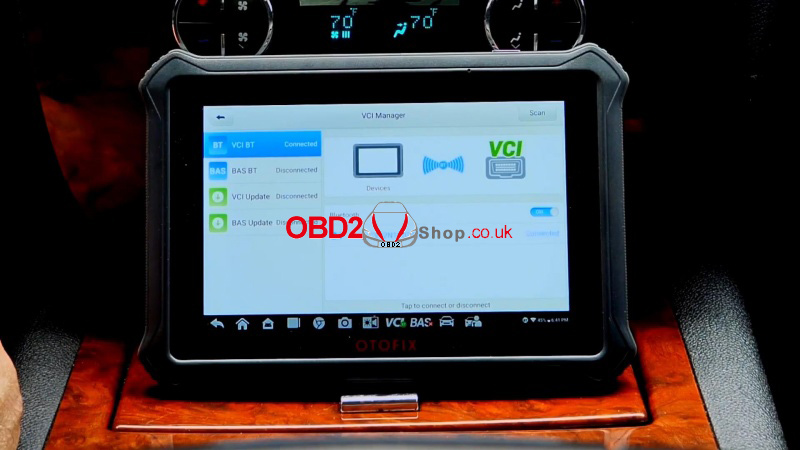

lVersatile Connectivity
Use the Bluetooth dongle for wireless diagnostics or connect via USB-C for a wired setup.

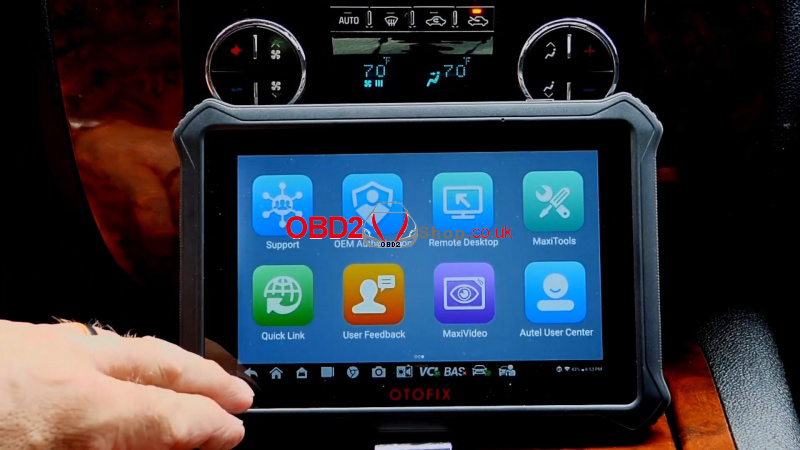

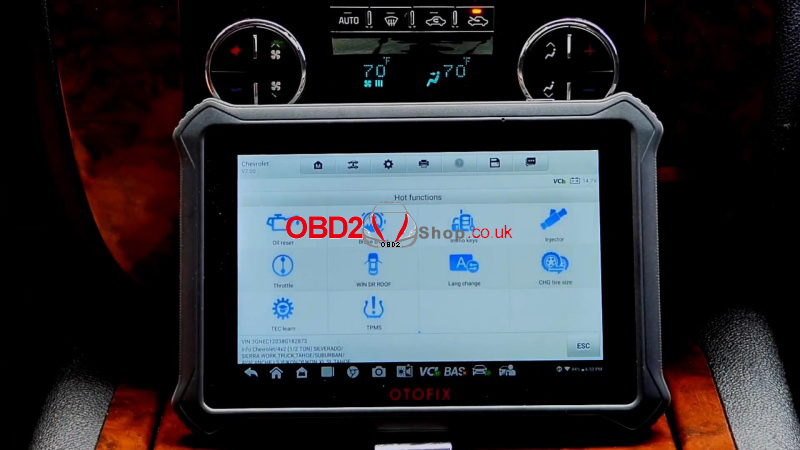

lHelpful Hot Functions
From brake bleeds to key programming, the D1 offers a range of special functions that save time and effort.

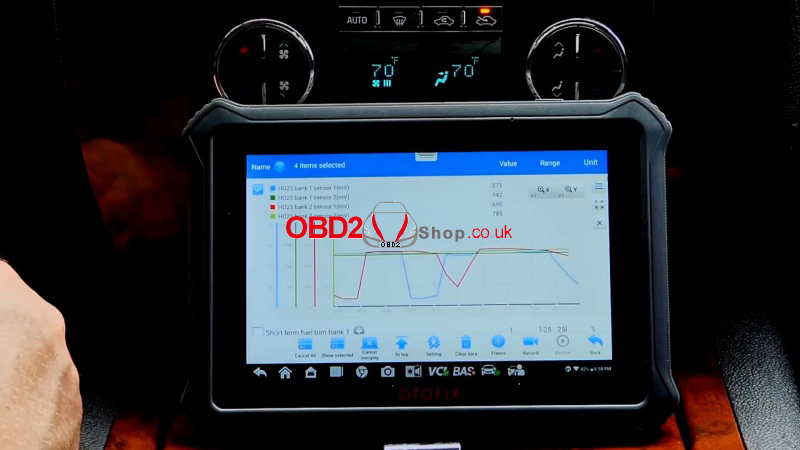

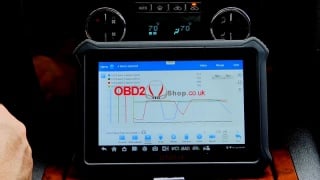

lClear Live Data & Graphing
Monitor sensor readings, misfire counts, O2 sensor data, and more - all in real time.

Conclusion:
The OTOFIX D1 delivers professional-level diagnostics in a portable, affordable package. Whether you're in a shop or on the go, this OTOFIX D1 Diagnostic Tool offers the power and reliability you need without the high price tag. With free updates for two years and broad vehicle support, it’s a smart investment for any automotive professional.

www.obd2shop.co.uk

Oznake: OTOFIX D1

02.12.2025. u 03:17 • 0 Komentara • Print • # • ^

<< Arhiva >>
