OBDSTAR IMMO Update: Add VW/ Audi/ Mitsubishi AKL & More

The latest OBDSTAR software update has added critical new functions, including proximity key programming (AKL support), IMMO data readingand PIN code retrieval for VW, Audi, SEAT, Skoda, Mitsubishi, etc. Optimizations improve existing tools like the OBDSTAR X300 Classic G3, X300 PRO4, and X300 MINI VW. Boost your capabilities - update now!

VW [Version: V45.53]
1. Add Read IMMO DATA function (by VW4-AKL cable) for below models:
VW TIGUAN NEC+95320 873B

2. Add proximity key programming function (by C4-06, supported AKL) for below models (which supports online synchronization code calculation):
VW MQB48-5A D70F3529-V2
SEAT MQB48-5A D70F3529-V2
AUDI MQB48-5A D70F3529-V2
SKODA MQB48-5A D70F3529-V2

3. Optimized software.

FIAT [Version: V43.15]
1. Add Manual Select System BSI (PRE-CODING)CONTINENTALMPC5606B (ID4A) Show IMMO Info TYPE 2.

2. Optimized software

MITSUBISHI [Version: V41.04]
1. Add proximity key programming (All Keys Lost), Read PinCode functions for the below models (by C4-06):
AUSTRALIA OUTLANDER(GM#) 2021-
CHINA OUTLANDER 2021-
EUROPE OUTLANDER(GM#) 2021-
JAPAN OUTLANDER(GM#) 2021-
NORTH AMERICAN OUTLANDER(GM#) 2021-
OTHER OUTLANDER(GM#) 2021-

2. Add proximity key programming (Supported AKL), Read Pin Code functions for the below models (by C4-06):
OTHER L200 2023-
JAPAN L200 2023-
AUSTRALIA L200 2023-
EUROPE L200 2023-
NORTH AMERICAN L200 2023-
CHINA L200 2023-

Supported Tools
Key Master G3
Key Master 5
X300MINI VW

BAIC [Version: V41.01]
1. Add proximity key programming (Supported AKL), Read Pin Code functions for the below models:
BAIC BEIJING BJ40C
BAIC BEIJING BJ60

2. Optimized software.

TRUMPCHI [Version: V40.57]
Add proximity key programming (Supported AKL), Program ECM, Program TBOX, Program ESCL functions for below models:
TRUMPCHI HYCAN A06
TRUMPCHI iA5
TRUMPCHI HYCAN G05A
TRUMPCHI iX4
TRUMPCHI HYCAN Z03
TRUMPCHI EA6

CHERY [Version: V41.02]
1. Add proximity key programming function (TYPE 1) for below models:
TIGGO3X
CHERY JAECOO J7

2. Optimized software.

Supported Tools
Key Master G3
Key Master 5

www.obd2shop.co.uk

Oznake: obdstar immo update

28.07.2025. u 08:57 • 0 Komentara • Print • # • ^

četvrtak, 24.07.2025.

Changing XKGHG1EN Garage Remote Frequency with Key Tool MAX Pro

This guide provides step-by-step instructions on disassembling the XKGHG1EN Masker Garage Remote and modifying its frequency using the Xhorse VVDI Key Tool MAX Pro.

Step 1: Disassembling the XKGHG1EN Garage Remote
1. Remove the key cover:
Peel off the Xhorse logo sticker.
Use a screwdriver to remove the back screw.

2. Open the remote:
Take off the back cover.
Carefully remove the PCB board from the remote casing.

Step 2: Changing the Garage Remote Frequency
1. Connect the remote to VVDI Key Tool MAX Pro:
Use a USB cable to link the garage remote to the device.

2. Access the frequency settings:
Go to Special Function > VVDI Remote Function > Garage Door Key Customization > Read.
The current frequency (e.g., 315MHz) will be displayed.

3. Modify the frequency:
Click on the 315MHz value and enter the new frequency (e.g., 433MHz).
Click on the 055 (offset value in KHz) and adjust it within the allowed range.

4. Save the settings:
Click "Settings" to confirm the changes.
A "Successful Setup" message will appear.

5. Verify the new frequency:
Re-read the remote frequency to confirm it has changed (e.g., now 433MHz).

Conclusion
With the Xhorse VVDI Key Tool MAX Pro, modifying the XKGHG1EN Garage Remote frequency is a quick and straightforward process. Follow the steps above to adjust the frequency as needed.

For more information, visit: www.obd2shop.co.uk

Oznake: xhorse remote key

24.07.2025. u 05:17 • 0 Komentara • Print • # • ^

VAPON VP996 Key Programmer Update: 2024+ Suzuki & Honda Support

VAPON has released a major software update (Version 2.00) for its VP996 Key Programmer on July 21, 2025, expanding its capabilities for Suzuki and Honda vehicles. This update brings powerful new features, including PIN code reading and smart key programming, making the VP996 an even more versatile tool for automotive locksmiths and technicians.

Features of the Update
1. Suzuki Support (2018-2024 Models)
PIN Code Reading Function - Now compatible with all Suzuki models from 2018 to 2024, allowing for seamless key programming without dealership dependency.

2. Honda Support (2022+ Models)
1) Smart Card System Programming - Full coverage for popular models like CR-V, XR-V, Accord, and Civic (2022 and newer).

2) All 2022+ Honda Models - Enhanced support for advanced smart key systems.

Why Choose the VP996 Key Programmer?
lNo Internet Required - Works offline for faster, more reliable programming.
lFast & Efficient - Reduces programming time, improving workflow efficiency.
lFree Future Updates - More enhancements are coming soon, ensuring long-term usability.

Conclusion
The VAPON VP996continues to set the standard in automotive key programming with this latest update. Whether you're working on Suzuki or Honda vehicles, this tool delivers speed, convenience, and expanded functionality - all without needing an internet connection.

Stay tuned for more updates, and upgrade your VP996 today to take advantage of these powerful new features!

www.obd2shop.co.uk

Oznake: VAPON VP996

24.07.2025. u 03:54 • 0 Komentara • Print • # • ^

petak, 18.07.2025.

Coming Soon: OBDSTAR C4-09 (MB91F526) Adapter Kit

OBDSTAR is proud to introduce the upcoming C4-09 Adapter Kit, a powerful solution tailored for FLASH, DFLASH, and immobilizer data operations on a wide range of Magneti Marelli and Denso ECUs featuring the MB91F526 chip. Designed for use with the MP001 multifunctional programmer, this adapter kit expands your workshop capabilities, ensuring reliable data read/write and decryption.

OBDSTAR C4-09 adapter Support Functions:

1. Read/ Write FLASH, DFLASH, and immobilizer data decryption for the following models:
ALFA ROMEO GIULIA MAGNETIMARELLIMB91F526 BCM
ALFA ROMEO STELVIO MAGNETIMARELLI MB91F526 BCM
FERRARI488 GTB MAGNETIMARELLIMB91F526 BCM
FERRARI PORTOFINO MAGNETIMARELLIMB91F526 BCM
FIAT ARGO(BRAZIL)MAGNETIMARELLIMB91F526 BCM
FIAT CRONOS(BRAZIL)MAGNETIMARELLIMB91F526 BCM
FIAT DUCATO (2023->)MAGNETIMARELLIMB91F526 BCM
FIAT FASTBACK(BRAZIL)MAGNETIMARELLIMB91F526 BCM
FIAT PULSE(BRAZIL)MAGNETIMARELLIMB91F526 BCM
FIAT TORO(BRAZIL)MAGNETIMARELLIMB91F526 BCM
FIAT RAMPAGE(BRAZIL)MAGNETIMARELLIMB91F526 BCM
JEEP RENEGADE(BRAZIL)MAGNETIMARELLIMB91F526 BCM

2. Read/Write Flash for the below model:
MAZDA 3 DENSO MB91F526 BDMC

OBDSTAR C4-09 adapter Support Tools:
Use with OBDSTAR X300 Classic G3, DC706.

OBDSTAR C4-09 Adapter Kit Includes:
C4-09 Adapter (MB91F526)
W004 Connection Cable
W006 Cable

: Note: Must be used with the MP001 multifunctional programmer.

For more information, please visit www.obd2shop.co.uk.

Oznake: obdstar c4 09 adapter kit

18.07.2025. u 10:44 • 0 Komentara • Print • # • ^

New Arrival: OBDSTAR C4-07 Kit for 7G-Tronic TCM Programming

The OBDSTAR C4-07 Adapter Kit is a cutting-edge tool designed for precise access and data operations on Mercedes-Benz FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Modules (TCMs). This specialized adapter kit simplifies complex TCM tasks such as virginizing and personalization—without requiring soldering skills—making it ideal for both workshops and field technicians.

Key Functions & Capabilities:

Solder-free TCM Virginizing: Supports JTAG mode for used TCM re-initialization without the need for advanced soldering.
Personalization (Data Transfer): Offers data operations via BENCH or OBD, achieving the same result as a full TCM clone.
Broad Compatibility: Works with all VGS4-0 NAG2 7G-Tronic TCU of Mercedes-Benz FBS4/DAS4 generation vehicles.

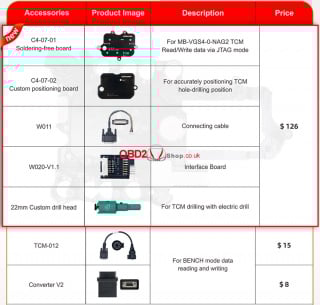

What's Included in the Adapter Kit?

OBDSTAR C4-07 Adapter Kit
1pc x C4-07-01 soldering-free board
1pc x C4-07-02 custom positioning board
1pc x W011 cable
1pc x W020-V1.1 interface board
1pc x 22mm custom drill head

OBDSTAR C4-07 Adapter Kit Full Configuration
1pc x C4-07-01 soldering-free board
1pc x C4-07-02 custom positioning board
1pc x W011 cable
1pc x W020-V1.1 interface board
1pc x 22mm custom drill head
1pc x TCM-012 cable
1pc x Converter V2

Note:
Requires MP001 multifunctional programmer.
If you already own TCM-012 and Converter V2, you do not need to purchase them again.

Compatible Tools
Works seamlessly with OBDSTAR X300 Classic G3, DC706, and other supported devices.

Why Choose the C4-07 Adapter Kit?
This tool eliminates complex soldering steps, streamlines your TCM programming workflow, and enhances operational safety—all while offering professional-grade reliability.

For orders and more details, visit:
www.obd2shop.co.uk

Oznake: obdstar c4 07 kit

18.07.2025. u 04:27 • 0 Komentara • Print • # • ^

četvrtak, 17.07.2025.

Solved: MINI Key Tool Error – "Combine SN with Xhorse App!"

Problem: When using the Xhorse VVDI MINI Key Tool to clone ID48 (96-bit), the device shows the following error message:
"Sending data file (Envio de archivo de datos): Please combine SN with Xhorse App!"
However, the SN (serial number) was already combined with the Xhorse App.

Solution:
Make sure you are logged into the same Xhorse account on the MINI Key Tool that was used to bind the serial number.

Important: Do NOT log in with a different or new account, or the error will persist.

Once you log in with the correct account, the issue will be resolved.

Technical Support:
www.obd2shop.co.uk

Oznake: vvdi mini key tool

17.07.2025. u 04:38 • 0 Komentara • Print • # • ^

srijeda, 16.07.2025.

Launch X431 VAG Gateway License Now Available - Purchase Guide

Launch announces the addition of a 1-year VAG Gateway License to its e-commerce software mall on July 8, 2025, compatible with X431-PAD and PRO series diagnostic devices (including X431 CRP919EBT/CRP919XBT). Here’s what you need to know:

Details
lPrice: $299 (excl. tax), payable via PayPal.

lPackage Includes:
VAG Gateway License (1-year validity).

lAvailability:
Excluded Regions: Europe (partial region including Spain and Portugal), USA, Canada, China, Syria, Russia, Belarus, and North Korea. All other areas are eligible.

How to Purchase?
1. Navigate to the Mall on your Launch X431 device.
2. Select the VAG package under Other Goods.
3. Complete checkout via PayPal and confirm delivery details.

Note: Interface styles may vary slightly across devices.

This update empowers automotive professionals with expanded access to VAG vehicle diagnostics. For more information, please visit www.obd2shop.co.uk.

Oznake: Launch X431

16.07.2025. u 09:40 • 0 Komentara • Print • # • ^

ponedjeljak, 14.07.2025.

How to Get APPRO2 Check Code for BMW F/G Series Mileage Reset?

If you use the APPRO2 Programmer to reset mileage on BMW F/G series vehicles, you’ll encounter a check code prompt. Previously, users had to manually send a random code to support and wait for a response - a slow process due to time zone delays.

Now, APPRO2 has upgraded its system to provide instant online check codes, making the process faster and more efficient.

How to Get the APPRO2 Check Code Automatically?
1. Update to the Latest APPRO2 Software - Ensure you have the newest version installed.

2. Connect to the Internet - The software will now automatically calculate the check code via the APPRO2 server.

Important Note:
lThe server allows only 5 automatic check code calculations per day.
lAdditional requests require manual processing through support.

Why This Upgrade Matters:
No more delays - Get check codes instantly.
Simplified workflow - No need to contact support for every request.
Faster mileage adjustments - Streamline your BMW F/G series programming.

For best results, always keep your APPRO2 software updated and ensure a stable internet connection. Need more than 5 check codes daily? Plan or request manual support when needed.

www.obd2shop.co.uk

Oznake: APPRO2 programmer

14.07.2025. u 09:19 • 0 Komentara • Print • # • ^

četvrtak, 10.07.2025.

Modifying HON66 to VA2T Key Blank via Xhorse Condor XC-MINI Plus II

The Xhorse Condor XC-MINI Plus II and Dolphin II Key Cutting Machines feature the "Modify Key" function. This guide demonstrates how to convert an HON66 key blank into a VA2T key blank using this capability.

Step 1: Modify HON66 to VA2T
Since the HON66 blank is wider than the VA2T, we need to remove the excess material.
1. Select "Modify Key" ’ Choose VA2T as the target blank.
2. Follow the on-screen instructions to install the HON66 blank.
3. Start cutting with default settings ’ The machine will begin automatically.
4. Wait until the process completes—the edge of the HON66 will now be partially trimmed.
5. Reinstall the key blank in reverse to cut the remaining excess.
6. You now have a custom VA2T key blank!

Step 2: Copy a VA2T Key
Now, we can use the modified blank to duplicate a VA2T key.
1. Navigate: Automotive ’ Key Blank ’ VA2T.
2. Rotate the M5 clamp to Side B and insert the original key.
3. Select "Decode Key" to learn the cuts.
4. Once decoded, remove the original key and insert the new blank.
5. Start cutting ’ Repeat for the other side.
6. Cutting completed!
The new key works perfectly and opens the lock smoothly.

Watch the Full Video Tutorial
For a complete demonstration, check out the video:
https://youtu.be/Bz9gytDF_tI

www.obd2shop.co.uk

Oznake: condor xc mini plus ii

10.07.2025. u 09:18 • 0 Komentara • Print • # • ^

srijeda, 09.07.2025.

TOPDON AD800-BT vs AD900-BT vs UltraDiag vs AD900 Lite

Choosing the best car diagnostic tool can be tricky. In this comparison, we break down the Topdon AD800-BT, AD900-BT, UltraDiag, and AD900 Lite - highlighting key differences in display size, battery life, vehicle coverage, and advanced features. This guide helps you pick the perfect scanner for faster, smarter auto diagnostics. Read on to find your ideal match!

Comparision Table

Recommendations
1. For Professional Mechanics (Advanced Features)
TOPDON ArtiDiag 900 BT: Best for professionals needing bi-directional control, special functions, and extensive vehicle coverage (130+ brands). The 7-inch display and 6300mAh battery strike a balance between portability and performance.

2. For Heavy-Duty Use (Long Battery Life)
TOPDON UltraDiag or AD900 Lite: Both feature a large 8-inch display and a massive 10000mAh battery. Ideal for prolonged diagnostics, but with fewer service functions (8 vs. 28) and limited vehicle coverage (65+ brands).

3. For Beginners or Budget Users
TOPDON ArtiDiag 800 BT: Affordable entry-level option with basic diagnostics (110+ brands) and free software updates. Lacks advanced features like bi-directional control, but covers essential needs.

4. For Multi-Language Support
AD800-BT or AD900-BT: Support 17 languages, making them suitable for non-English users. UltraDiag and AD900 Lite have limited language options.

Summary
Choosing the right TOPDON diagnostic tool depends on your needs:
lProfessionals: AD900-BT for advanced features.
lLong sessions: UltraDiag/AD900 Lite for battery life.
lBeginners: AD800-BT for affordability.
lMulti-language: AD800-BT or AD900-BT.

For detailed specs, www.obd2shop.co.uk!

Oznake: topdon diagnostic tool

09.07.2025. u 09:39 • 0 Komentara • Print • # • ^

utorak, 08.07.2025.

XirDecoder DTC Chip Tuning FAQ: Setup & Troubleshooting Guide

What is XirDecoder?
XirDecoder DTC is a cutting-edge software platform specializing in advanced chip tuning for vehicles. With a database of over 130,000 files, it provides unparalleled diversity and precision in tuning solutions. Unlike competitors, XirDecoder uses unique DAMOS mapping to ensure a 100% success rate and minimize risks. The system delivers custom-matched tuning files tailored to your specific vehicle and requirements, eliminating the need for solutions.

Features:
l Supports Stage 1 to Stage 3 tuning.
l Solutions for DPF/EGR/AdBlue disabling, Launch Control, and more.
l No dongle is required - the license is instantly activated and linked to your computer.
l Expert support for Standard and Ultimate package users, with custom solutions delivered within 1 hour.
l Three versions are available: the Standard Version, the Basic Version, and the Ultimate Version.

Frequently Asked Questions

1. How Do I Activate XirDecoder After Payment?
After completing your payment, you’ll receive an email with a download link and activation instructions. Reply to the email with the required details, and your license will be activated shortly. You can then start using the software immediately.

2. How Do I Open a Support Ticket?
If you can’t find a solution for your ECU file, follow these steps to open a ticket:
1) Copy the ECU info from the software (found in the information section).
2) Click the Help Desk button.
3) Paste the ECU info and specify your request (e.g., "Stage 1 and AdBlue off").
4) Send the message.
5) Track your ticket’s progress in the "Ticket" section of the software.
Once processed, you can upload the updated file and proceed with tuning.

3. What Should I Do If I Encounter License Issues?
l Ensure your internet connection is stable.
l Close any remote access programs (e.g., AnyDesk, TeamViewer), as these can interfere with the software.
l Check your antivirus settings - some programs may block XirDecoder.
If the problem persists, contact support for further assistance.

4. Can I Test XirDecoder Before Making a Purchase?
We do not offer free trials to prevent misuse. However, you can evaluate our file quality using the free "EDC17C46" ECU file available in our software. Additionally, check genuine user reviews on Mhh Auto, a trusted forum where feedback comes from real users.

Additional Information
l Upgrades: You can upgrade your package at any time by paying the difference. Contact us via email for details.

l Renewals: An annual renewal fee is required to maintain an active account. Unpaid accounts will be deactivated until payment is completed.

Why Choose XirDecoder?
130,000+ files for unmatched vehicle coverage.
DAMOS mapping for 100% success and safety.
Instant activation - no dongles or delays.
Expert-backed solutions for all tuning needs.

For more details, visit our website or contact our support team!

www.obd2shop.co.uk

Oznake: XirDecoder DTC Chip Tuning

08.07.2025. u 09:29 • 0 Komentara • Print • # • ^

petak, 04.07.2025.

APPRO2 Key Programmer – Software Installation & System Requirements

To ensure proper functionality of the APPRO2 APP2 Key Programmer, please review the following system requirements and installation instructions:

1. Supported Operating Systems
The APPRO2 software is compatible with the following operating systems in both 32-bit and 64-bit versions:

Windows XP
Windows 7
Windows 8
Windows 10
Windows 11

2. Required Runtime Environment
The APPRO2 software must be run on a computer that has Microsoft .NET Framework 3.5 SP1 installed.

3. How to Install Microsoft .NET Framework 3.5 SP1
For Windows XP Users:
Please contact us to obtain the full offline installer of .NET Framework 3.5 SP1. Once received, simply run the installer to complete the setup.

For Windows 7, 8, 10, and 11 Users:
Go to:
Control Panel ’ Programs and Features ’ Turn Windows features on or off, then locate and enable:
“.NET Framework 3.5 (includes .NET 2.0 and 3.0)”
Ensure the checkbox is selected (either checked or filled).

For more detailed installation instructions, please refer to the APPRO2 User Manual.
You can also follow the video installation guide linked below.
https://youtu.be/Meqk_bqnb2Q

Need more technical assistance? Visit our website:
www.obd2shop.co.uk

Oznake: appro2 key programmer

04.07.2025. u 11:02 • 0 Komentara • Print • # • ^

srijeda, 02.07.2025.

Solved: OBDSTAR P50/DC706 "Please login first!" Upgrade Issue

Issue Description: Users of OBDSTAR P50 and DC706 diagnostic tools may encounter the error "Please login first!" when attempting to perform a one-click upgrade. This prevents the device from updating its software, limiting functionality.

Probable Cause
The error typically occurs due to an inactive or expired login session. The device requires users to authenticate their account before allowing software upgrades.

Solution
Follow these steps to resolve the issue:
1. Log In Again
- Open the OBDSTAR software and navigate to the Personal Center.
- Enter your credentials to log in. Ensure your account is active and properly registered.

2. Retry the Upgrade
- After logging in, return to the One-Click Upgrade section.
- Download and install the latest software version.

3. Check Account Status
If the issue persists, verify your account status on the official OBDSTAR website or contact support.

Additional Tips
l Ensure a stable internet connection during the upgrade process.
l Clear the device cache if login attempts fail repeatedly.

For further assistance, visit www.obd2shop.co.uk.

Oznake: obdstar p50

02.07.2025. u 05:15 • 0 Komentara • Print • # • ^

<< Prethodni mjesec | Sljedeći mjesec >>
