Guide to Replacing the MLB Tool Chip for MQB Key Data Reading

To enable the MQB key data reading feature, you need to perform a hardware upgrade by replacing the internal chip of the Xhorse MLB Tool. Please follow the steps below carefully:

Step 1: Disassemble the Device
1. Remove the outer casing: Unscrew the four corner screws securing the device’s casing and carefully take off the cover.
2. Access the internal board: Locate and unscrew the screws holding the main board in place.

Step 2: Replace the Chip

1. Remove the existing chip: After exposing the front side of the board, gently detach the original chip using appropriate tools.

2. Install the enhanced chip: Insert the upgraded chip into the designated slot, ensuring proper alignment and secure contact.

Step 3: Reassemble the Device
1. Secure the board: Reattach the screws to fix the board back into its original position.
2. Close the casing: Replace the outer casing and tighten the four corner screws.

Important Notes
Please ensure the device and the adapter are powered on during future use.

For detailed function usage, please refer to the MQB Key Function Tutorial.

The hardware upgrade will be completed successfully by following these steps, enabling seamless operation of the enhanced MQB key data reading functionality.

www.obd2shop.co.uk

Oznake: xhorse mlb tool

30.04.2025. u 08:21 • 0 Komentara • Print • # • ^

utorak, 29.04.2025.

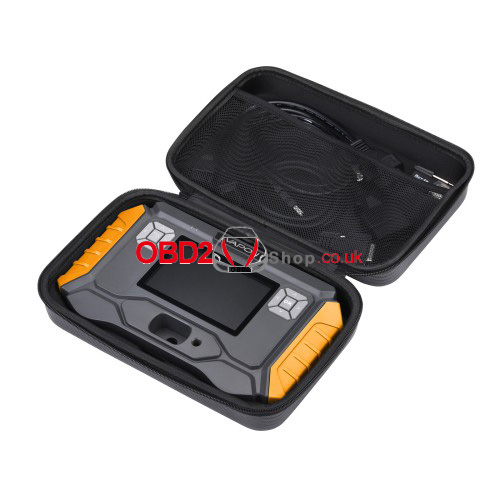

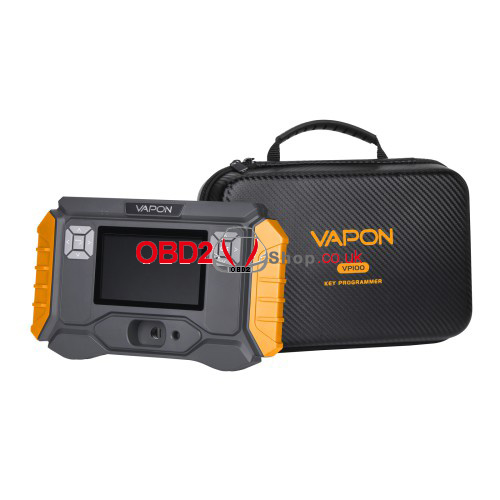

VAPON VP100: No Tokens, Free BMW Key Programming (2015-2021)

Are you tired of dealer fees and complicated tools? The VAPON VP100 Key Programmer lets you program BMW keys fast—no tokens, no yearly fees, just plug and play.

Why Choose the VP100?

Works on2015-2021 BMWs(X3, 5 Series, 7 Series, M5, and more) with BDC2 systems.
No token limits - program as many keys as you need.
Free lifetime license - no hidden costs or subscriptions.
Compatible with OEM BMW remotes.

Supported Models (2015-2021)

Affordable & Hassle-Free

Forget overpriced dealer tools—the VAPON VP100 is a one-time purchase (nowŁ392, was~~Ł508~~). It's perfect for locksmiths or DIYers who want pro results without the crazy cost.

Get yours today: www.obd2shop.co.uk

Easy, fast, and no headaches. Just working keys.

Oznake: vapon vp100

29.04.2025. u 09:48 • 0 Komentara • Print • # • ^

ponedjeljak, 28.04.2025.

LAUNCH X431 IMMO Elite Program VW MAGOTAN MQB Key

The LAUNCH X431 IMMO Elite successfully programs the VW MAGOTAN MQB key. At first, it's required to work with the X431 Key Programmer to generate a remote. The LAUNCH X431 IMMO PLUS is also applicable to the following operation process.

1. Generate Remote

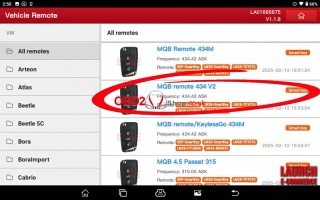

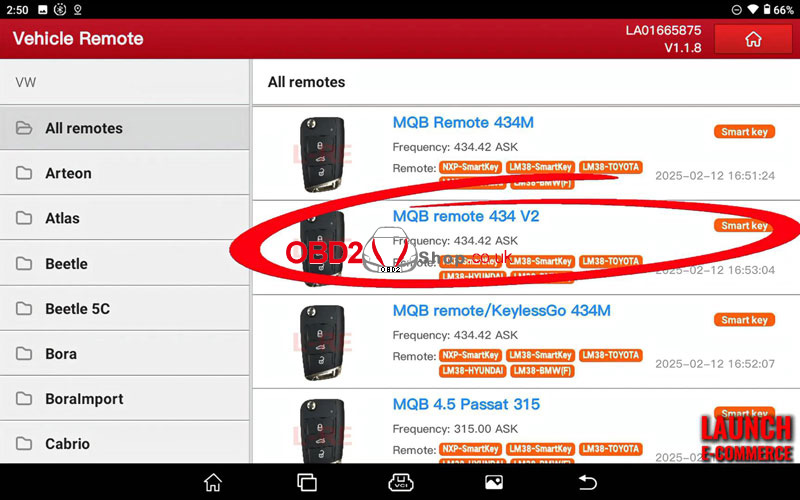

Vehicle Remote >> VW >> All remotes >> MQB remote 434 V2 >> Generate
Burn successfully.

2. Backup IMMO Data

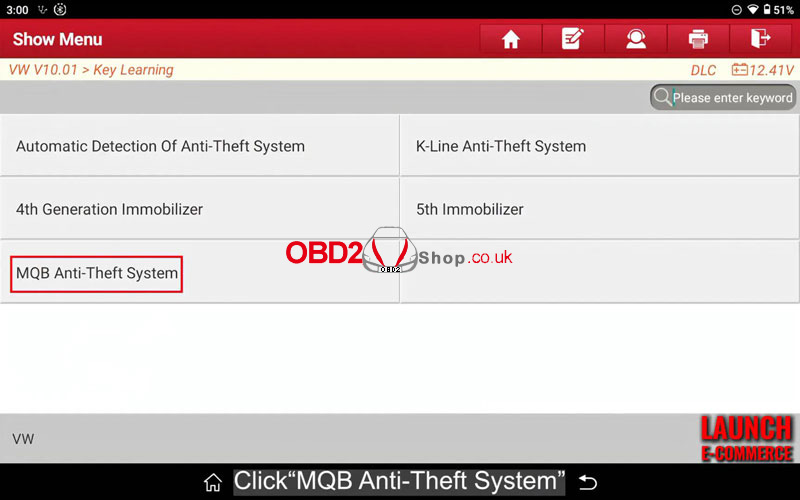

Anti-Theft Key Matching >> Key Learning
Please simultaneously connect the diagnostic connector and the X431 IMMO Elite programmer.

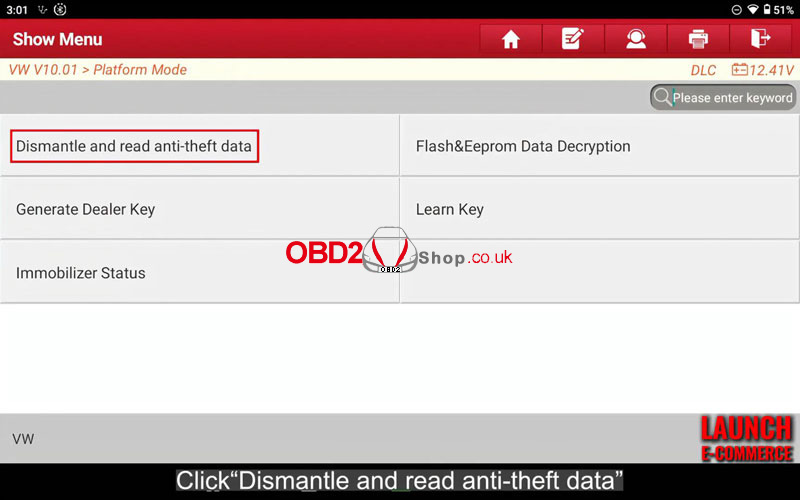

MQB Anti-Theft System >> Platform Mode >> Dismantle and read anti-theft data >> View Wiring Diagram >> D70F3529 >> Pin-up wiring diagram

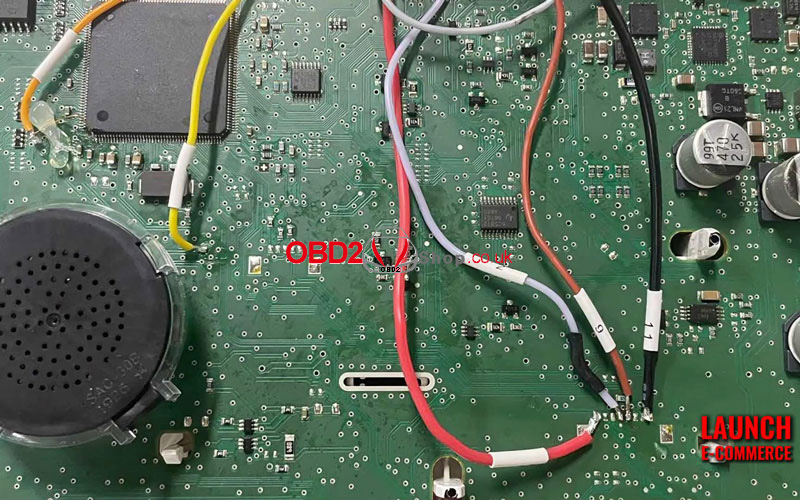

Connect to the ECU accroding to the wiring diagram.
The current read/write data volume is large. To improve communication stability, connect via USB.

Read Chip ID >> OK

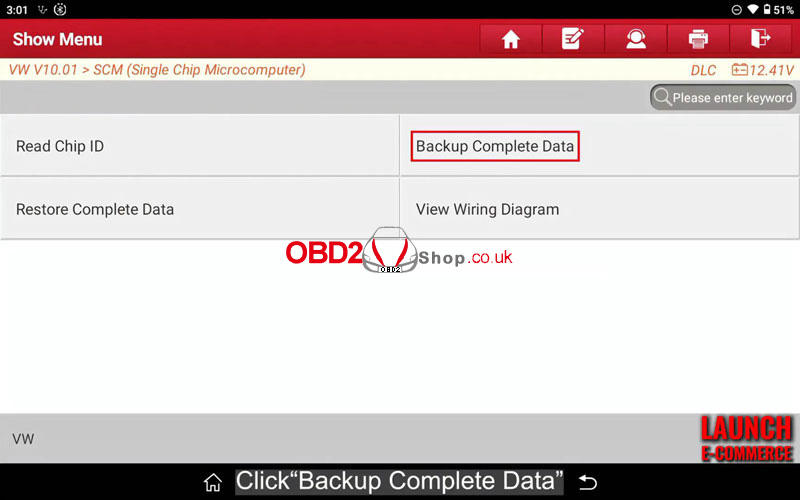

Backup Complete Data >> Save IMMO File

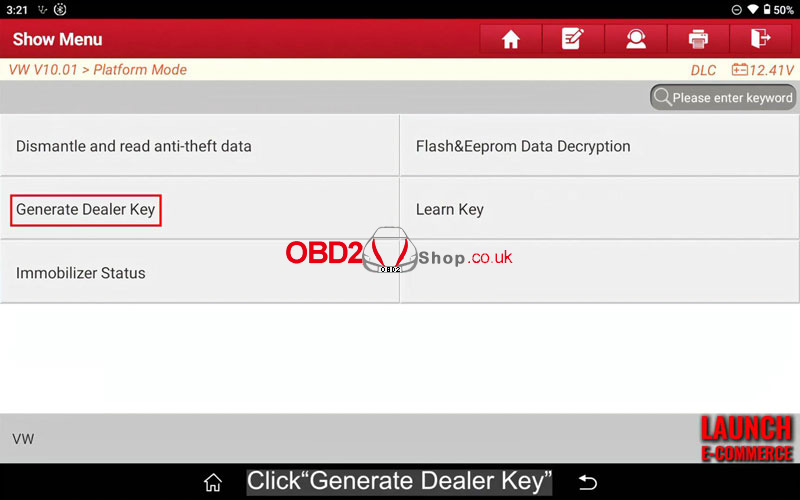

3. Generate Dealer Key

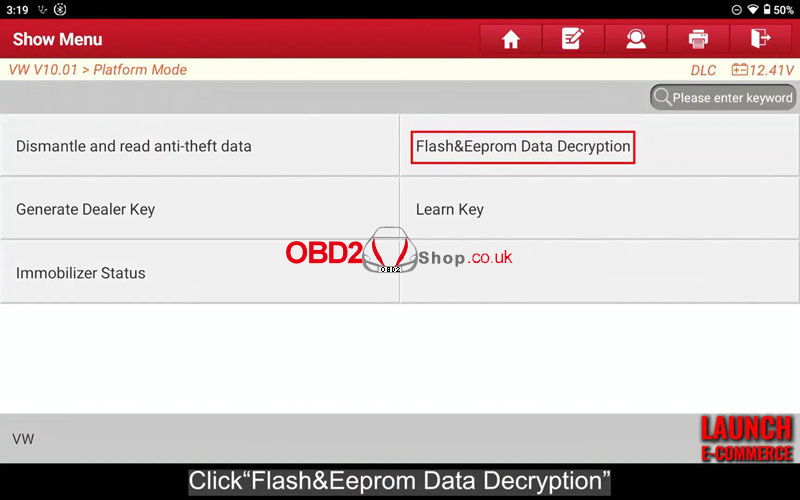

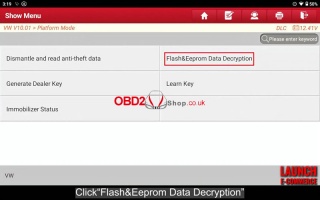

Flash&Eeprom Data Decryption >> Selet the previously read instrument data >> Confirm >> Generate Dealer Key

Reading the original key data for the 5th generation key is necessary. Please place the original key into the anti-theft key matching adaptor.

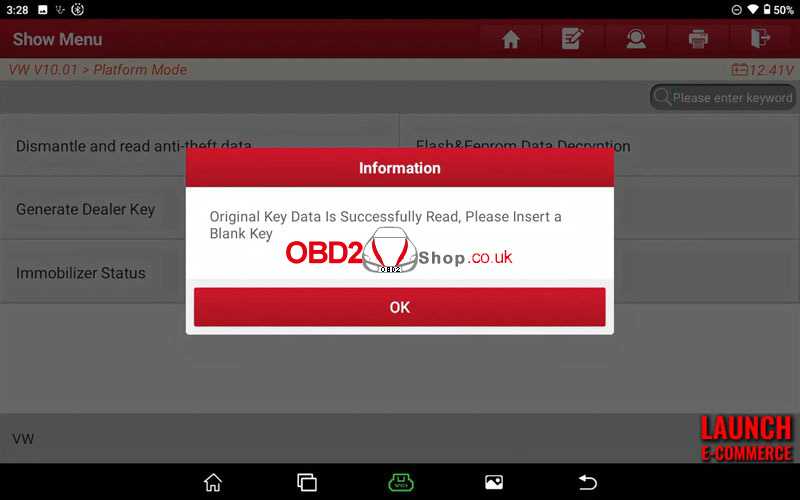

The original key data is successfully read. Please insert a blank key.
Click "VW".

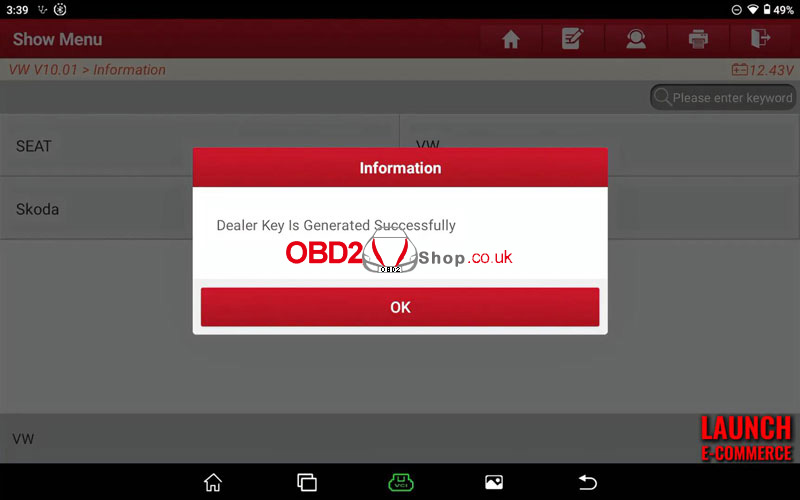

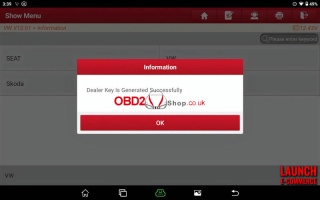

The dealer key is generated successfully.

4. Learn Key

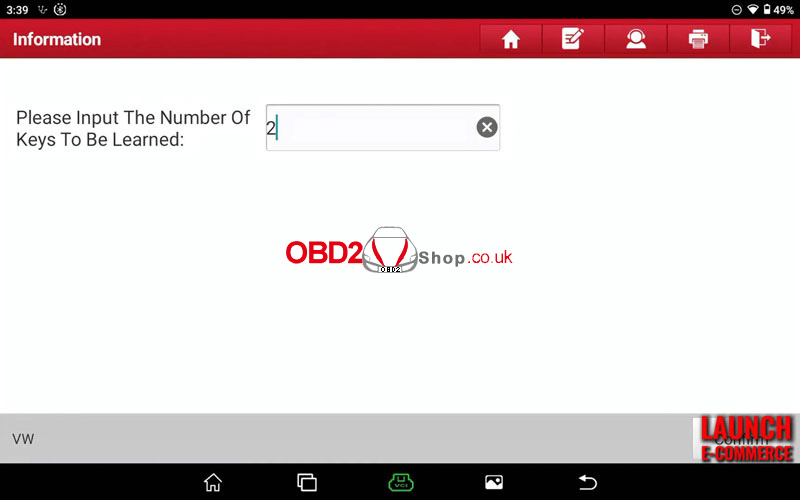

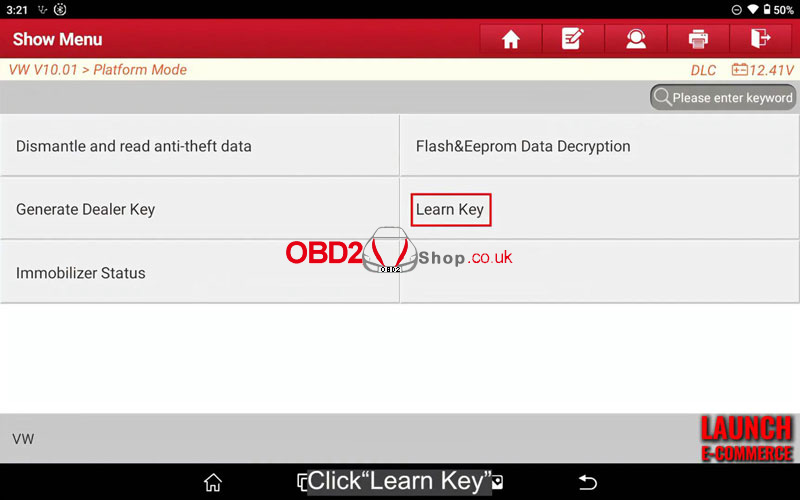

Learn Key >> Input the number of keys to be learned: 2
Is the current key smart? Yes

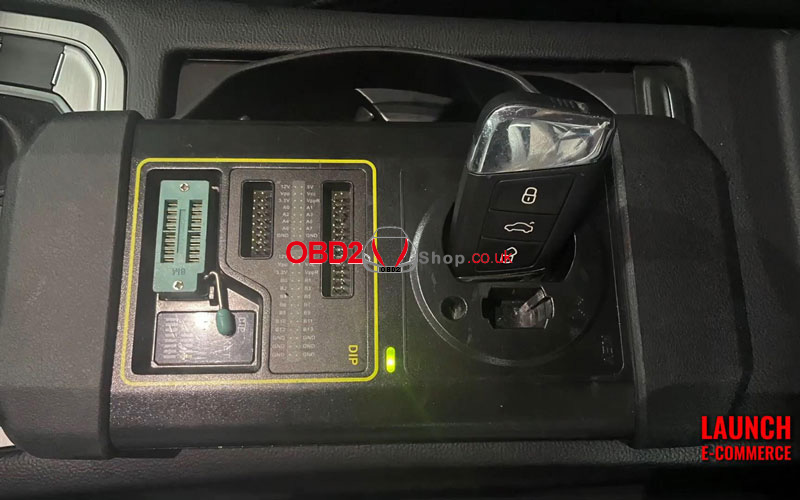

Please put the key close to the induction coil and turn the start/stop button to the on position.

Attention:
1. Do not turn off the ignition switch during the key learning process.
2. Put the end of the key with the brand close to the induction coil during key learning.
3. Key learning failed. Online key learning is needed.

Place the keys to be learned around the ignition switch in turn.

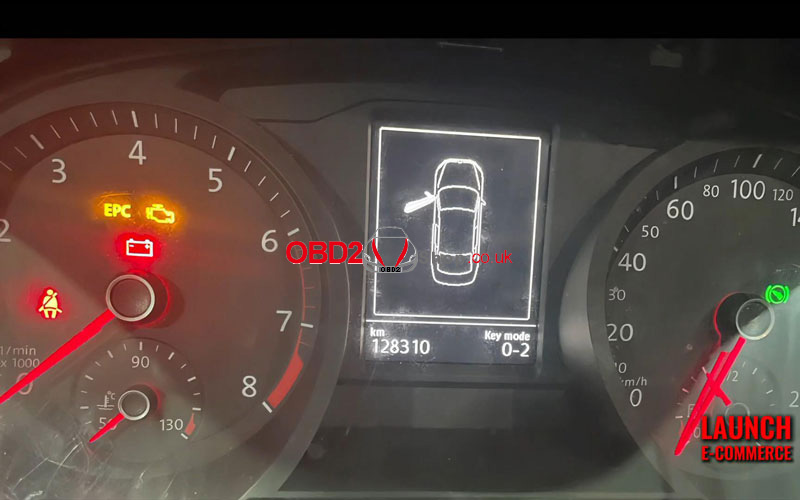

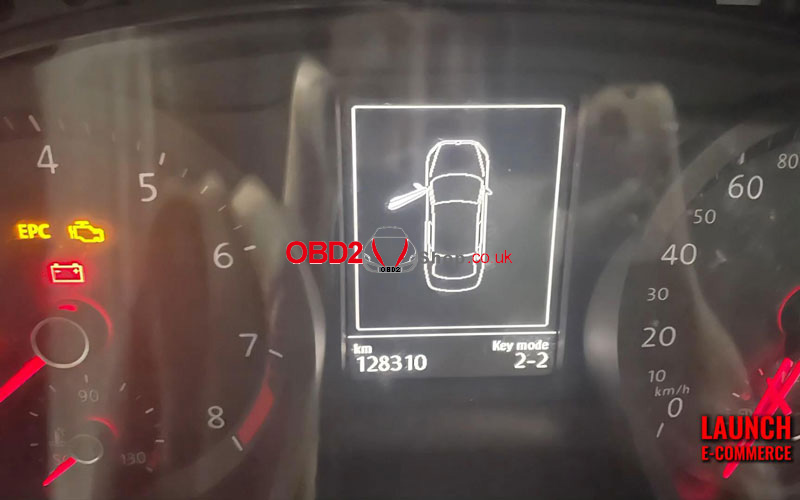

Number of keys learned/number of keys to be learned: 0/2 -> 2/2
Caution: Do not turn off the ignition switch.

www.obd2shop.co.uk

Oznake: launch x431 immo elite

28.04.2025. u 08:16 • 0 Komentara • Print • # • ^

nedjelja, 27.04.2025.

Hyundai ME17.9.21.1 ECU Idle Speed Repair by OBDSTAR DC706

This guide will walk you through how to use the OBDSTAR DC706 ECU Tool to perform data reading/writing and idle speed repair on a Hyundai Bosch ME17.9.21.1 ECU.

Tools Required:
OBDSTAR DC706 (X300 Classic G3 is also supported)
High-power DC regulated power supply
Main cable
ECU Clone Jumper
MP001 Programmer
Hyundai ME17.9.21.1 ECU

Step-by-Step Instructions:

1. Preparation
Before proceeding, ensure that the software is upgraded to the latest version.
Launch the [ECU Flasher] software and select Passenger Car [ECM].

2. Model Search
Use the search box in the upper right corner to quickly locate the corresponding ECU model.

3. Review the Guide
Open the [Guide] section and carefully read through:

Warm reminders
Function descriptions
Operation instructions
Connection methods

4. Connector Pinout
Open the [Connector Pinout] section and connect the hardware according to the provided diagrams.

5. Start the Process
After completing the physical connection, tap [Start].

6. ECU Connection and Data Backup
Establish a connection to the ECU.

Perform a full data backup immediately.

File names can be customized for easy identification.

7. Data Writing
Write the previously backed-up data back into the ECU module.

8. Idle Speed Repair
Tap on [Idle Speed Repair].

Once the operation is completed, reinstall the ECU module into the vehicle.
After repair, the normal idle speed will be stabilized between 800–850 RPM.

By following these steps carefully, you can ensure that the Hyundai ME17.9.21.1 ECU is properly repaired and operating at optimal idle speed.

Video guides:
https://youtu.be/kKqeZ8dWIw8

www.obd2shop.co.uk

Oznake: obdstar dc706

27.04.2025. u 05:06 • 0 Komentara • Print • # • ^

ponedjeljak, 21.04.2025.

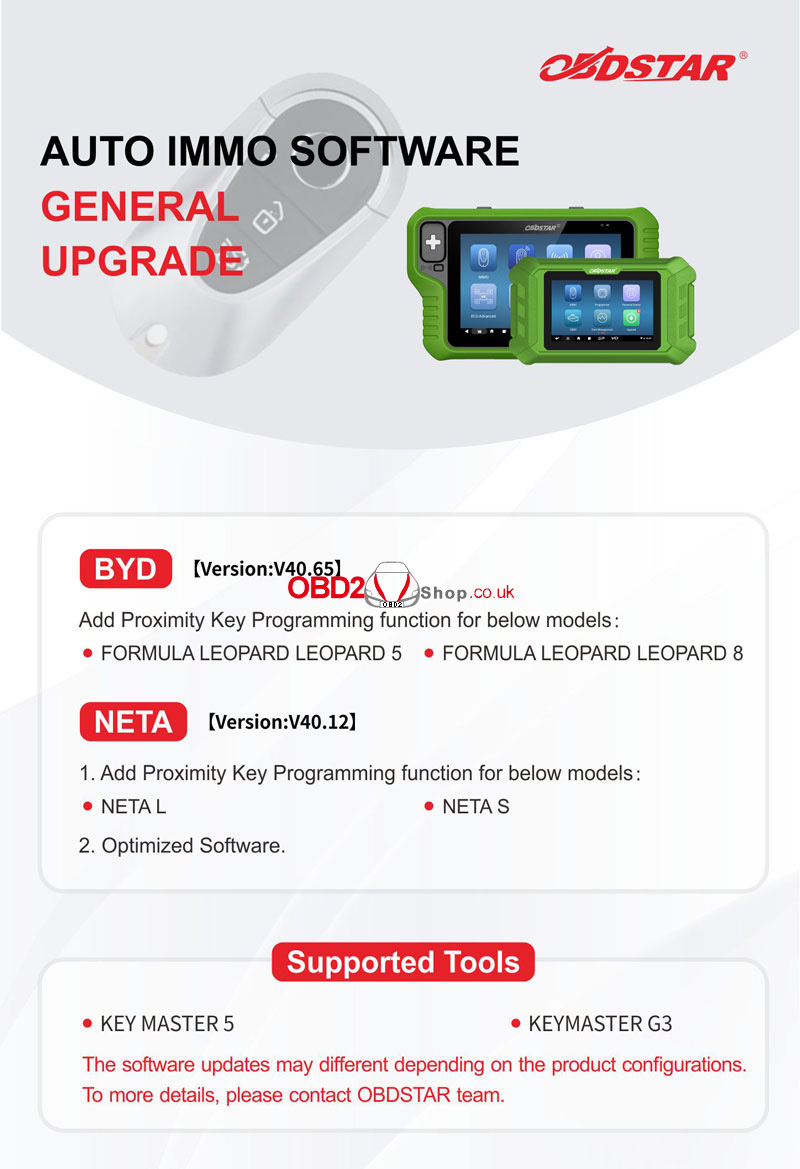

OBDSTAR BYD/RENAULT/NISSAN/OPEL IMMO Upgrade in Apr.

OBDSTAR released Auto Immo Software Upgrade in April, covering BYD, NETA, DACIA/RENAULT, NISSAN/INFINITI, and OPEL. Please keep your device up to date for the latest features.

Supported Tools
OBDSTAR X300 PRO4
OBDSTAR X300 Classic G3

BYD Version: V40.65
Add Proximity Key Programming function for the following models:
FORMULA LEOPARD LEOPARD5
FORMULA LEOPARD LEOPARD8

NETA Version: V40.12
1. Add Proximity Key Programming function for the following models:
NETA L
NETA S

2. Optimized Software

Supported Tools
OBDSTAR Key Master 5
OBDSTAR Key Master G3
OBDSTAR Key Master DP PLUS

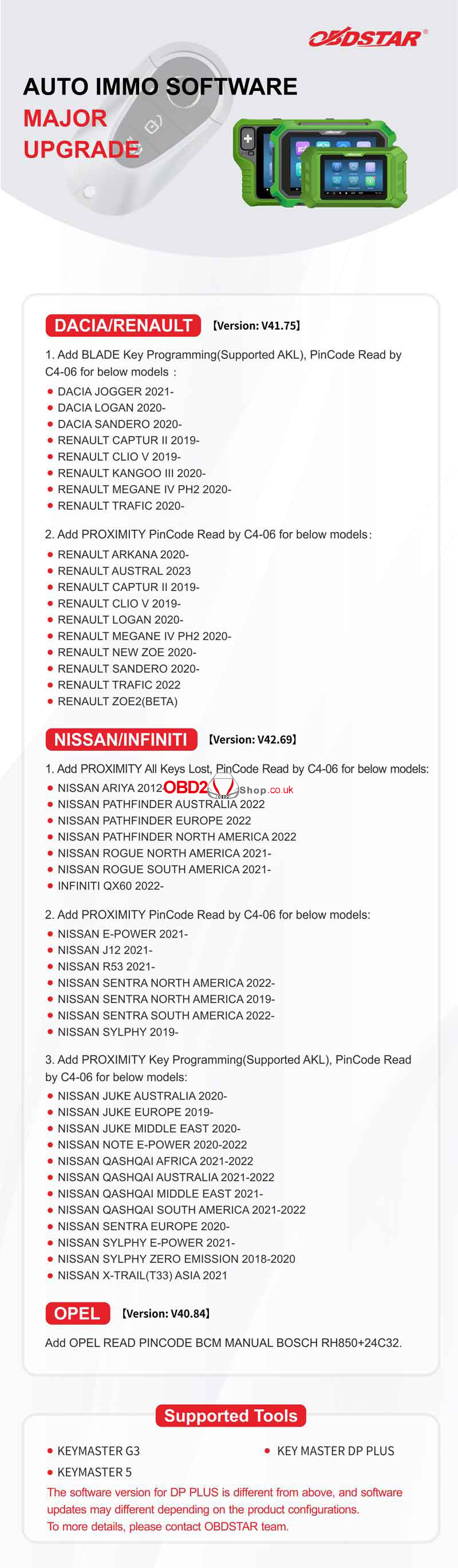

DACIA/RENAULT Version: V41.75
1. Add BLADE Key Programming(Supported AKL), Pincode Read by C4-06 for below models:
DACIA JOGGER 2021-
DACIA LOGAN 2020-
DACIA SANDERO 2020-
RENAULT CAPTUR II 2019-
RENAULT CLIO V 2019-
RENAULT KANGOO III 2020-
RENAULT MEGANE IV PH2 2020-
RENAULT TRAFIC 2020-

2. Add Proximity Pincode Read by C4-06 for the following models:
RENAULT ARKANA 2020-
RENAULT AUSTRAL 2023
RENAULT CAPTUR II 2019-
RENAULT CLIO V 2019-
RENAULT LOGAN 2020-
RENAULT MEGANE IV PH2 2020-
RENAULT NEW ZOE 2020-
RENAULT SANDERO 2020-
RENAULT TRAFIC 2022
RENAULT ZOE2(BETA)

NISSAN/INFINITI Version: V42.69
1. Add PROXIMITY All Keys Lost, PinCode Read by C4-06 for the below models:
NISSAN ARIYA 2012-
NISSAN PATHFINDER AUSTRALIA 2022
NISSAN PATHFINDER EUROPE 2022
NISSAN PATHFINDER NORTH AMERICA 2022
NISSAN ROGUE NORTH AMERICA 2021-
NISSAN ROGUE SOUTH AMERICA 2021-
INFINITI QX60 2022-

2. Add PROXIMITY PinCode Read by C4-06 for the following models:
NISSAN E-POWER 2021-
NISSAN J12 2021-
NISSAN R53 2021-
NISSAN SENTRA NORTH AMERICA 2022-
NISSAN SENTRA NORTH AMERICA 2019-
NISSAN SENTRA SOUTH AMERICA 2022-
NISSAN SYLPHY 2019-

3. Add PROXIMITY Key Programming (Supported AKL), PinCode Read by C4-06 for the below models:
NISSAN JUKE AUSTRALIA 2020-
NISSAN JUKE EUROPE 2019-
NISSAN JUKE MIDDLE EAST 2020-
NISSAN NOTE E-POWER 2020-2022
NISSAN QASHQAI AFRICA 2021-2022
NISSAN QASHQAI AUSTRALIA 2021-2022
NISSAN QASHQAI MIDDLE EAST 2021-
NISSAN QASHQAI SOUTH AMERICA 2021-2022
NISSAN SENTRA EUROPE 2020-
NISSAN SYLPHY E-POWER 2021-
NISSAN SYLPHY ZERO EMISSION 2018-2020
NISSAN X-TRAIL (T33) ASIA 2021

OPEL Version: V40.84
Add OPEL READ PINCODE BCM MANUAL BOSCH RH850+24C32.

www.obd2shop.co.uk

Oznake: obdstar update

21.04.2025. u 09:33 • 0 Komentara • Print • # • ^

petak, 18.04.2025.

OBDSTAR X300 Classic G3 Startup Failure Repair Guide

If your OBDSTRA X300 Classic G3 device won't start, don't worry! Follow this step-by-step guide to troubleshoot and fix the issue by checking key components like the battery, U17 chip, and L8 inductor.

Tools Required
Screwdriver (hex-compatible)
Multimeter
Soldering iron or hot air gun (temperature adjustable)
Replacement components: U17 (IC) and L8 (1µH inductor)

Step 1: Remove the rubber case. Then, use a screwdriver to loosen and remove the fixed hex screws.

Step 2: Open the back cover, press down on the battery connector clip with your hand, and then pull out the battery connector.

Step 3: Use a multimeter set to the ohms range to test the two ends of capacitor C75. If the resistance is around 0©, it indicates that U17 and L8 are damaged and are causing a short circuit. Replace U17 and L8.

Step 4: Use a soldering iron or hot air gun set to 350 ± 10°C to desolder and remove U17 and L8. (Replace L8 with a 1uH inductor.)

Step 5: After the replacement, use the multimeter set to the ohms range to test the two ends of capacitor C75 again. If the resistance is approximately 1.36K©, it confirms that U17 and L8 have been successfully replaced.

Step 6: Insert the battery connector, reassemble the back cover, and press the power button to turn on the device. If it starts up normally, the replacement is successful.

Step 7: Use a screwdriver to fasten the screws to the back cover, and put the rubber case back on. The replacement is complete!

This guide resolves short-circuit issues caused by faulty U17 and L8, restoring normal operation to the X300 Classic G3.

www.obd2shop.co.uk

Oznake: obdstar x300 classic g3

18.04.2025. u 09:15 • 0 Komentara • Print • # • ^

petak, 11.04.2025.

GM HMI Module VIN Reset by OBDSTAR X300 Classic G3

This guide will walk you through resetting the VIN (Vehicle Identification Number) on a GM HMI 2.0/2.5 module using the OBDSTAR X300 Classic G3 device.

Step-by-Step VIN Reset Procedure:
1. Enter ECU Advanced Mode
On the main screen of the device, tap:
[ECU Advanced] >> [GM/OPEL] >> [GM/OPEL V30.04] >> [OPEL] >> [HMI2.0/2.5]
Then tap on [Guide] to read the connection and operation instructions carefully.

2. Read ECU Information
Select [ECU info.] to retrieve the current information stored in the HMI module, including the existing VIN.
www.obd2shop.co.uk

3. Reset VIN
Choose the Reset VIN function from the menu.
The tool will process the request, and once complete, you should see a confirmation message: “Reset VIN Success.”

4. Confirm the VIN Reset
Return to [ECU info.] and re-read the data to verify that the VIN has been successfully cleared or modified.

Tips:
Always ensure your device software is updated to the latest version before starting.
It's recommended to back up any important data before making changes.
Use a proper power supply to avoid unexpected interruption during operation.

Using OBDSTAR X300 Classic G3, you can successfully reset the VIN on a GM HMI module with just a few simple steps.

Video guides:
https://youtu.be/Zce1u6FpBFk

www.obd2shop.co.uk

Oznake: obdstar x300 classic g3

11.04.2025. u 04:41 • 0 Komentara • Print • # • ^

srijeda, 09.04.2025.

Launch X431 Update: 10 New Diesel Vehicle Diagnostics Released

Good news! Launch X431 added 10 new diagnostic software options for light trucks in April 2025. To update in time, please ensure your Launch device is within the subscription validity period.

***X431 Commercial Vehicle Product Software Notification***

The following 10 new light truck diagnostic software programs have been added to the Launch X431 commercial vehicle product line:

1. DS_CITROEN - Citroën (Diesel)
2. DS_FIAT - Fiat/Abarth/Alfa Romeo/Lancia
3. DS_GM - GM (Diesel)
4. DS_MAZDA - Mazda (Diesel)
5. DS_PEUGEOT - Peugeot (Diesel)
6. DS_VW - Volkswagen (Diesel)
7. DS_LANDROVER - Land Rover (Diesel)
8. DS_JPISUZU - Isuzu/Jiangxi Isuzu
9. DS_VOLVO - Volvo (Diesel)
10. DS_NJYWKTY - NAC Iveco (Diesel)

All the above software can be downloaded in the Software Upgrade Center and available on the below tools:

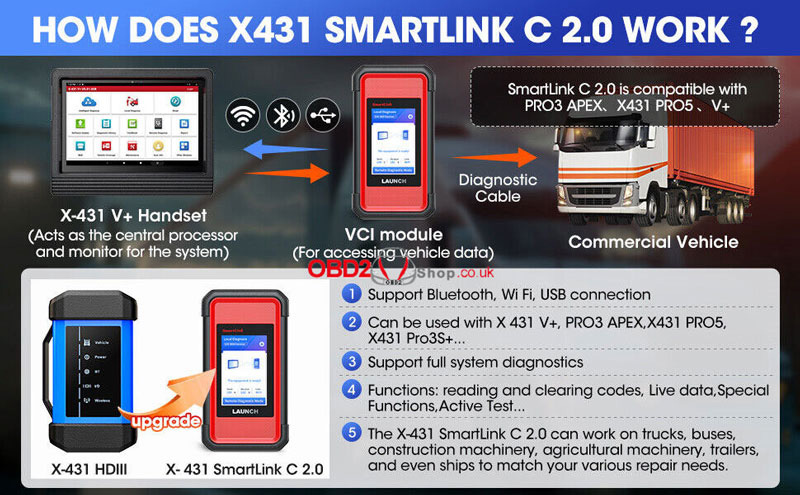

X-431 PRO3S+SmartLink HD
X-431 V+ SmartLink HD
X-431 PRO3S+ V2.0+ HDIII
X-431 V+ HDIII
X-431 SmartLink HD
X-431 HD III

For more software details and functional support, please check
http://qcar.x431.com/qcar/#/pc/index?q=e30%3D

www.obd2shop.co.uk

Oznake: Launch X431

09.04.2025. u 09:11 • 0 Komentara • Print • # • ^

četvrtak, 03.04.2025.

Writing VIN on Buick Delphi MT60 ECM Using OBDSTAR DC706

To write the VIN on a Buick Delphi MT60 ECM using the OBDSTAR DC706 ECU tool, follow these structured steps:

Required Tools:

OBDSTAR DC706 (or X300 Classic G3)
High-power DC regulated power supply
Main cable
ECU clone jumper
MP001 programmer
Delphi MT60 ECM

Preparation:
Ensure the software is updated to the latest version before starting.

Steps to Write VIN:
1. Access ECU Flasher
Tap [ECU Flasher] > [ECM] > [ECM V31.70].
Use the search function in the upper-right corner to locate the module quickly.

2. Review Guide & Connection Methods
Tap [Guide] and carefully read the operation instructions.
Review the procedures for both the BOOT and BENCH modes.

3. Select and Verify Connection Mode
Open [Pinout], select [BENCH], and confirm the module's appearance matches your ECU.
Open [Connector Pinout] and follow the connection diagram.

4. Establish Connection
Connect the module accordingly.
Tap [Start] to begin.
Note: If cloning the ECU, use the BOOT mode instead.

5. Backup Original Data
After a successful connection, back up the original ECU data.
Customize the file name as needed.

6. Write the VIN
Tap [Write VIN].
Enter the new VIN.
Confirm the update. Writing completed!

Conclusion:
By following these steps, you can efficiently modify the VIN on the Delphi MT60 ECM using OBDSTAR DC706. Always ensure data backup before making changes.

Video guides:
https://youtu.be/NHIIupUw5GI

www.obd2shop.co.uk

Oznake: obdstar dc706

03.04.2025. u 04:14 • 0 Komentara • Print • # • ^

srijeda, 02.04.2025.

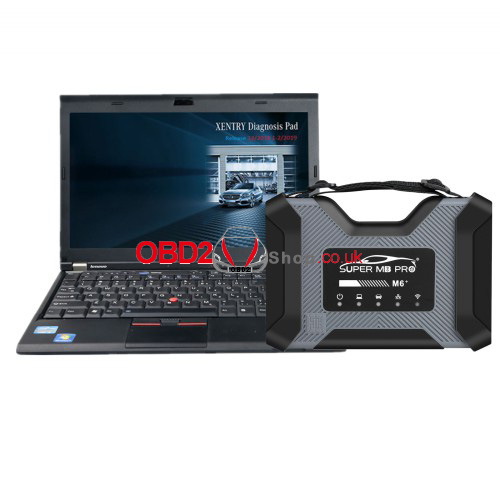

Fixed: Super MB Pro M6/SD C4 Benz Software Login Failure

Problem: I have a customer with a Super MB Pro M6 (purchased from the inside, as usual). And today, April 1st, the XENTRY program won't open! I enter the username and password as usual, but the program won't open!

Can you help us?

Solution
A file in MB Pro M6 or SD C4 has expired, and the Mercedes-Benz software cannot be logged in.

Simply replace the "offline.properties" file in the following two paths to resolve the problem:
C:ProgramDataMercedes-BenzconfigXD_DT
C:ProgramDataMercedes-BenzconfigXD_MB
(Note: Both paths should be replaced.)

Replaced file free download:
https://mega.nz/file/0pUlHYoR#w0g2PQNbCg-NjuLB_7404StTG2NBEm0Gu0QOJFml1tE

Techical Support
Email: Sales@OBD2shop.co.uk
WhatsApp: +86 13983755934
Telephone: +86 13983755934
WeChat: +86 13983755934
Skype: OBD2tool.co.uk

www.obd2shop.co.uk

Oznake: super mb pro m6

02.04.2025. u 11:56 • 0 Komentara • Print • # • ^

<< Prethodni mjesec | Sljedeći mjesec >>
