2019 Audi Q7 Key Data Collection with Xhorse MLB Tool

In this guide, we’ll demonstrate how to collect key data from a 2019 Audi Q7 using the Xhorse MLB Tool together with the VVDI Key Tool Plus.
Please note that this process requires an online connection and will deduct 200 remote points for data calculation.

Required Tools:
Xhorse MLB Tool
VVDI Key Tool Plus
Acquisition cable
Stable internet connection
Original Audi Q7 key

Step 1: Enter Immobilizer Programming

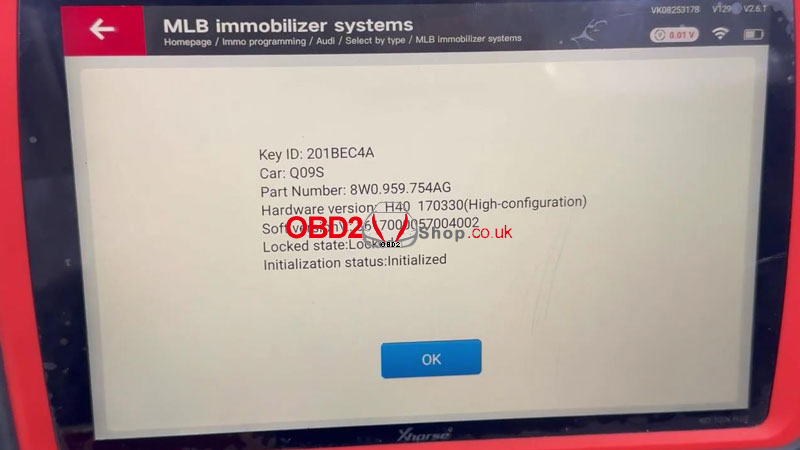

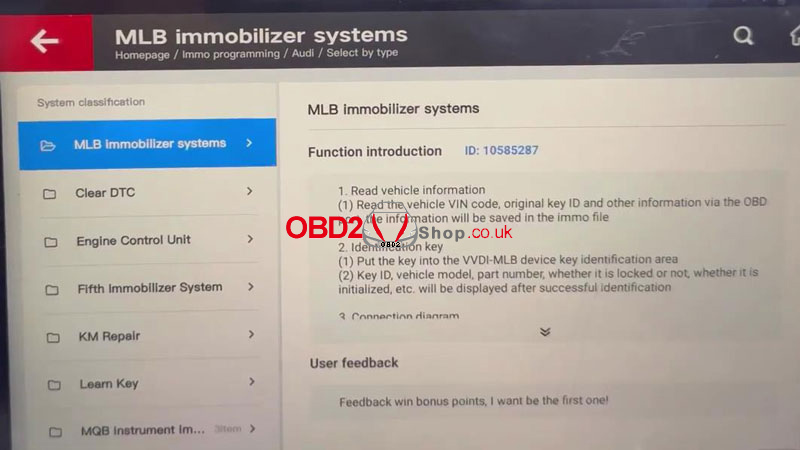

On the VVDI Key Tool Plus, follow the path below:

Immo Programming
’ Audi
’ Select by Type
’ MLB Immobilizer Systems
’ Start Programming

This function requires a network connection.
Please ensure the device is properly connected to the internet, then tap OK to continue.

Step 2: Connect the MLB Tool

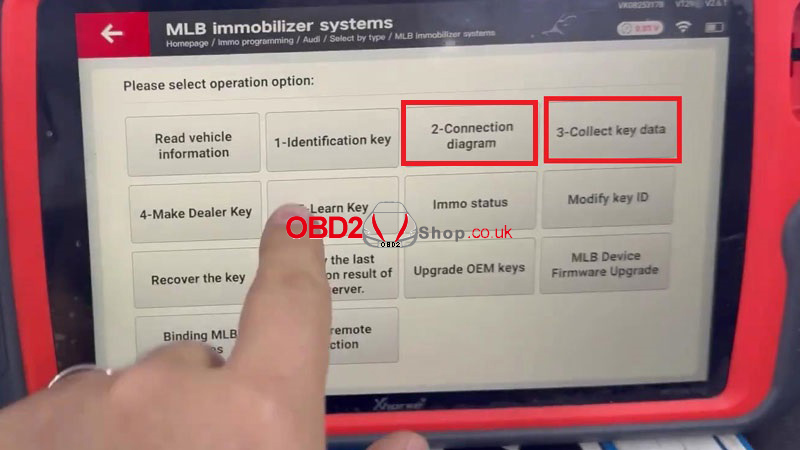

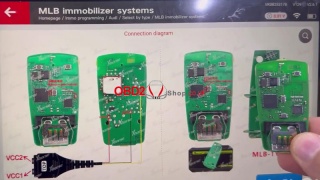

Select the connection diagram:
Connection Diagram ’ Type 2 (Audi / Lamborghini)
1. Follow the wiring diagram carefully
2. Solder the circuit board as shown

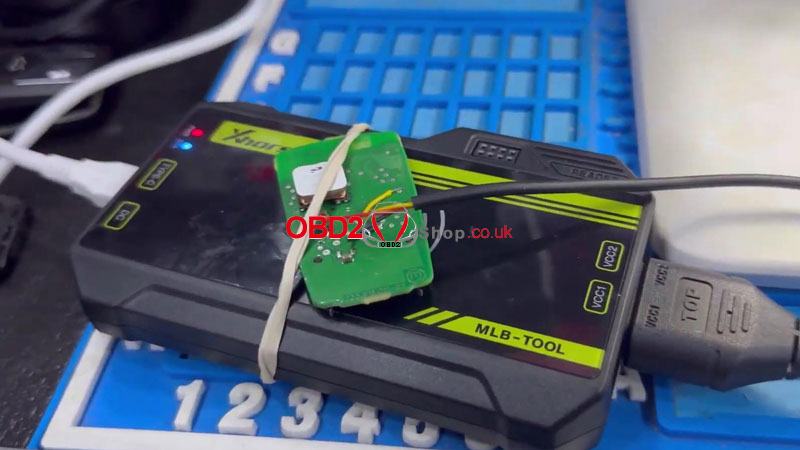

3. Connect the circuit board to the Xhorse MLB Tool
Once completed, tap “Collect Key Data” on the screen.

Step 3: Confirm Data Collection & Point Deduction

A prompt may appear:
“Detected that the Key Tool Plus does not read the vehicle information data. Continue to acquire data to save, and the immo file will not contain vehicle information. Whether to continue?”

Select:

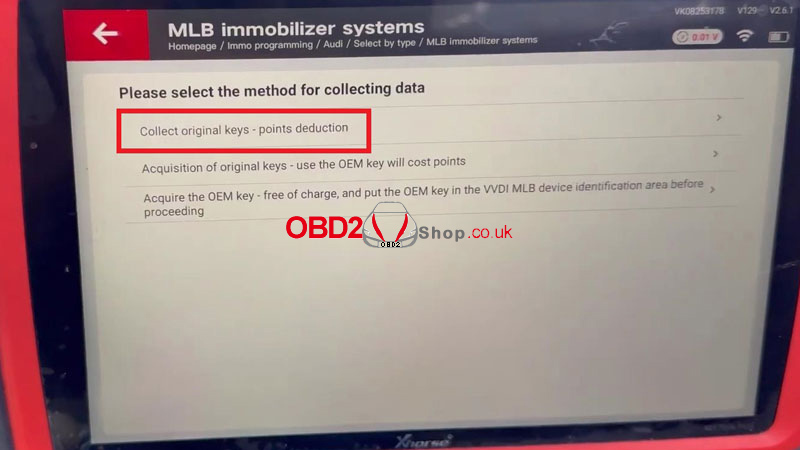

Yes ’ Collect Original Keys – Points Deduction

Another confirmation will follow:

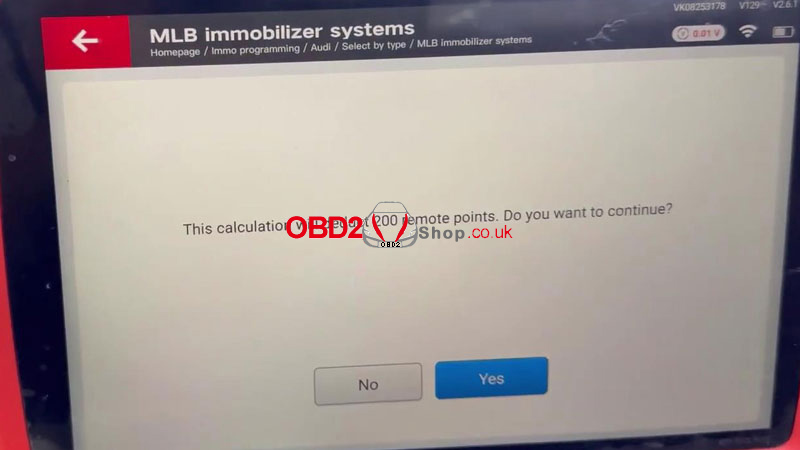

“This calculation will deduct 200 remote points. Do you want to continue?”
Select Yes to proceed.

Step 4: Key Data Acquisition

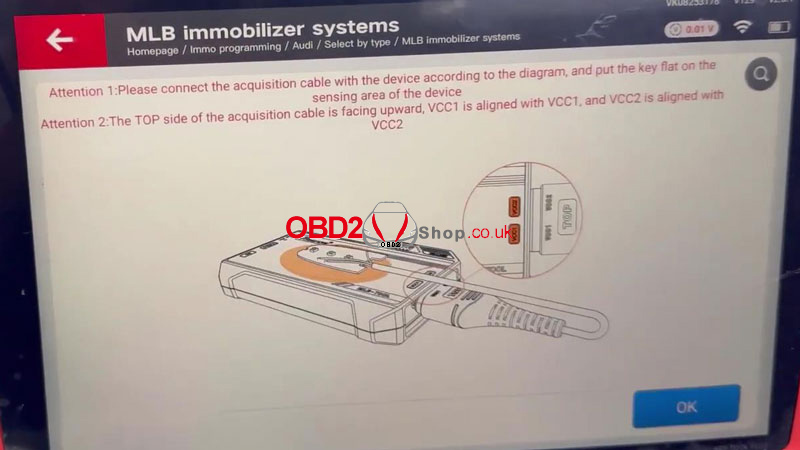

Before pressing OK, pay close attention to the following points:

Important Notes:
1. Connect the acquisition cable to the device exactly according to the wiring diagram.
2. Place the key flat on the sensing area of the device.
3. Ensure the TOP side of the acquisition cable faces upward.
4. Align VCC1 with VCC1 and VCC2 with VCC2 correctly.
Once everything is confirmed, press OK to start data acquisition.

Conclusion:
By using the Xhorse MLB Tool in combination with the VVDI Key Tool Plus, collecting key data for a 2019 Audi Q7 MLB system can be completed efficiently and safely. As long as the wiring, key placement, and network connection are correct, the process is straightforward—even though it requires a 200 remote point deduction.

For more automotive key programming tools and guides, visit:
www.obd2shop.co.uk

Oznake: xhorse mlb tool

16.05.2025. u 07:14 • 0 Komentara • Print • # • ^

četvrtak, 15.05.2025.

Xhorse MLB Tool Solder-free Adapter Wiring Diagram Guide

Xhorse MLB Tool is a professional solution designed to assist with key adding and programming for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB platform vehicles. This tool has already helped technicians simplify complex key programming tasks and improve overall efficiency.

Now, with the launch of the Xhorse MLB Tool Solder-Free Adapter Kit, the workflow becomes even easier, safer, and more convenient.

What’s New with the MLB Solder-Free Adapter Kit?

The MLB Solder-Free Adapter Kit is designed to work seamlessly with the XHORSE MLB Tool, significantly reducing the need for traditional soldering during operation. By combining these two tools, technicians can:
1. Minimize the risk of PCB damage
2. Improve operational safety
3. Save time during installation and removal
4. Achieve a cleaner and more reliable working process

Important Note:
Although the adapter is solder-free, the removal of two capacitors is still required during the operation. Please follow the wiring diagrams carefully to ensure correct installation.

MLB Solder-Free Adapter Types & Wiring Diagrams

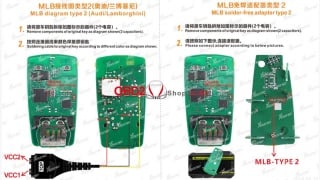

The MLB Solder-Free Adapter Kit is available in five different types, each designed to support specific vehicle models and PCB layouts. Refer to the corresponding wiring diagram for your application.

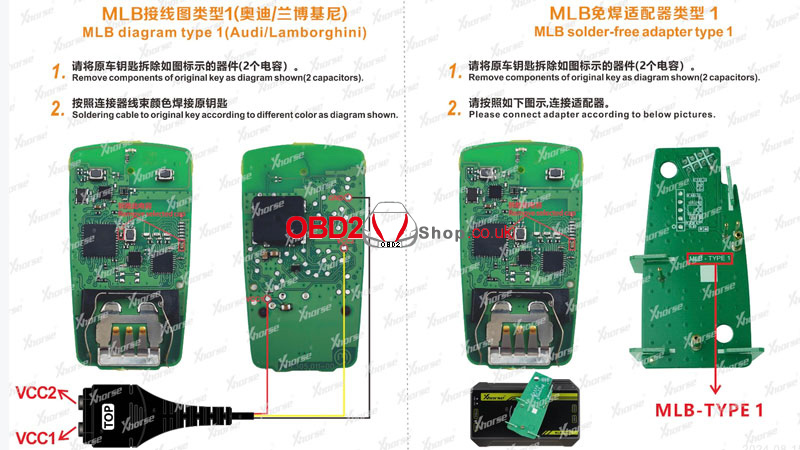

Type 1

Type 2

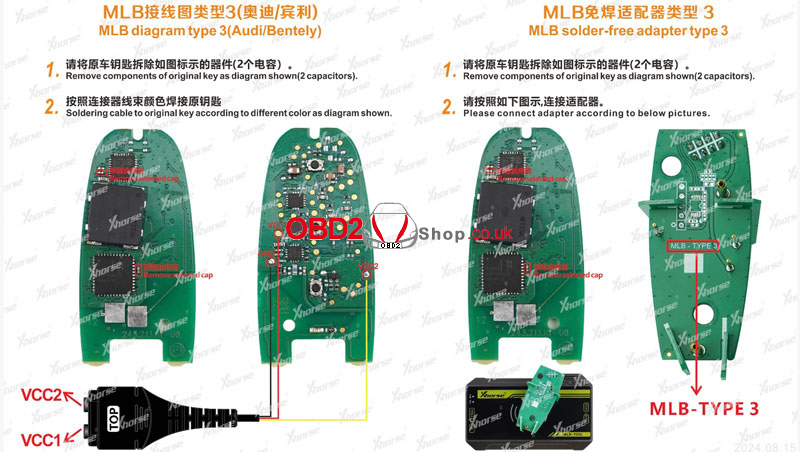

Type 3

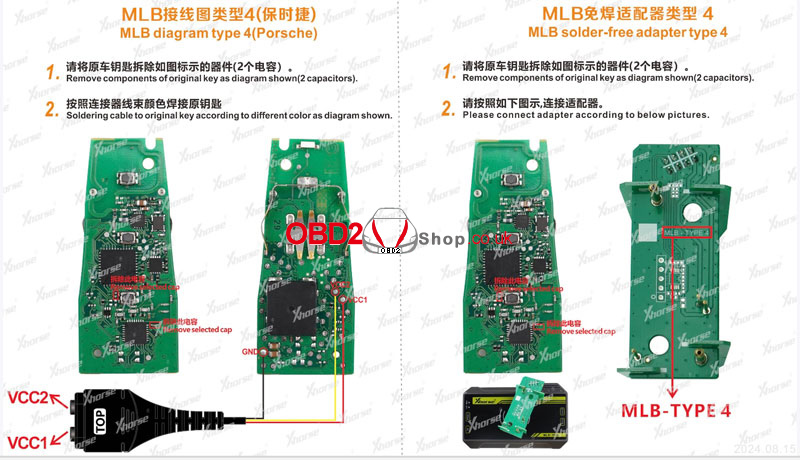

Type 4

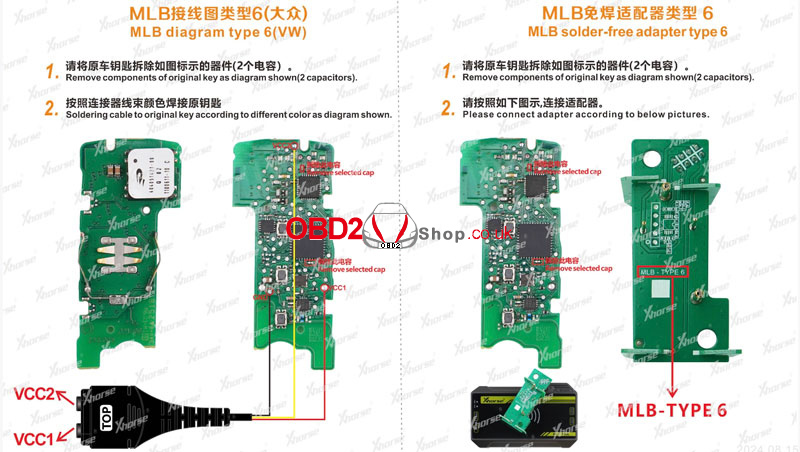

Type 6

Each adapter type is precisely engineered to ensure stable connections and accurate data communication during key programming.

Conclusion
The Xhorse MLB Tool, when paired with the MLB Solder-Free Adapter Kit, delivers a more efficient, professional, and user-friendly solution for MLB vehicle key programming. This combination is ideal for locksmiths and automotive technicians looking to improve productivity while reducing operational risk.

For more product details and purchasing information, please visit:
www.obd2shop.co.uk

Oznake: xhorse mlb tool

15.05.2025. u 03:44 • 0 Komentara • Print • # • ^

petak, 09.05.2025.

Troubleshooting KTP Connection Issue with MLB Tool

Issue Description (Reported by UK Customer):
"Hi, I am having problems communicating KTP with the MLB Tool. It won’t connect. I tried exiting and reconnecting, but the issue remains."

Root Cause & Solution
This issue typically occurs after performing the hardware upgrade for MQB key data reading.

When replacing the original chip inside the MLB Tool with the one provided in the MQB adapter package, it is crucial to ensure proper soldering of the new chip.

Important:
The chip must be securely soldered onto the board, with plenty of solder applied to all legs/pins to ensure stable connectivity and function.

Poor soldering can lead to unstable contact, causing the KTP connection to fail or remain unrecognized by the MLB Tool.

Recommendation:

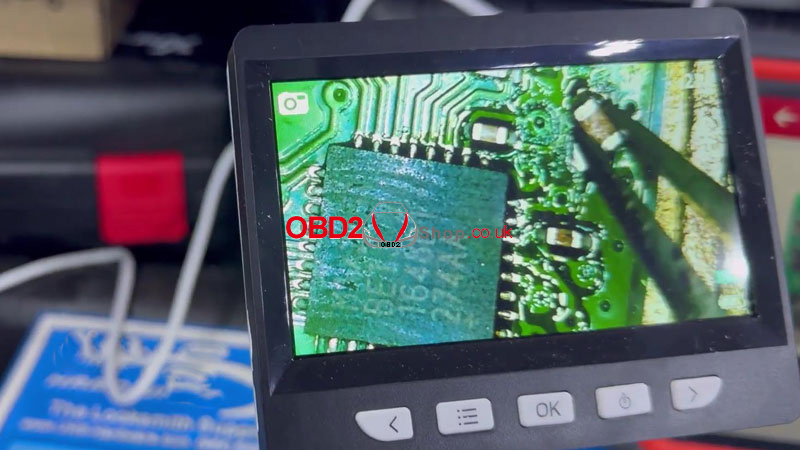

Open the MLB Tool and double-check the solder joints of the new chip.
If necessary, resolder all legs carefully to ensure a solid connection.
Once done correctly, the KTP communication should work as expected.

www.obd2shop.co.uk

Oznake: xhorse mlb tool

09.05.2025. u 04:35 • 0 Komentara • Print • # • ^

srijeda, 30.04.2025.

Guide to Replacing the MLB Tool Chip for MQB Key Data Reading

To enable the MQB key data reading feature, you need to perform a hardware upgrade by replacing the internal chip of the Xhorse MLB Tool. Please follow the steps below carefully:

Step 1: Disassemble the Device

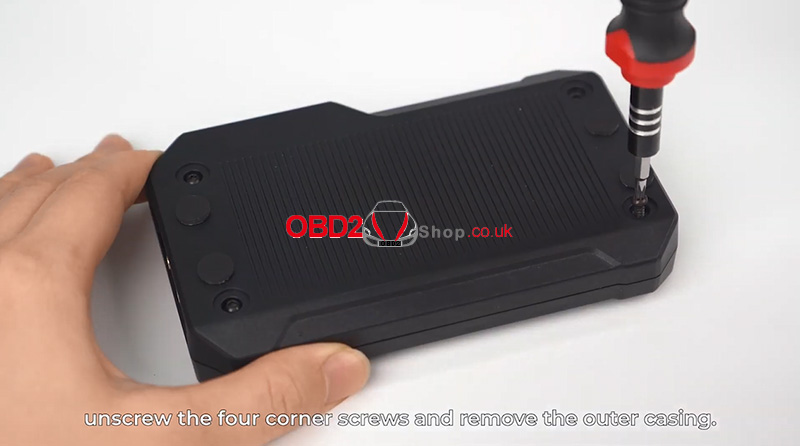

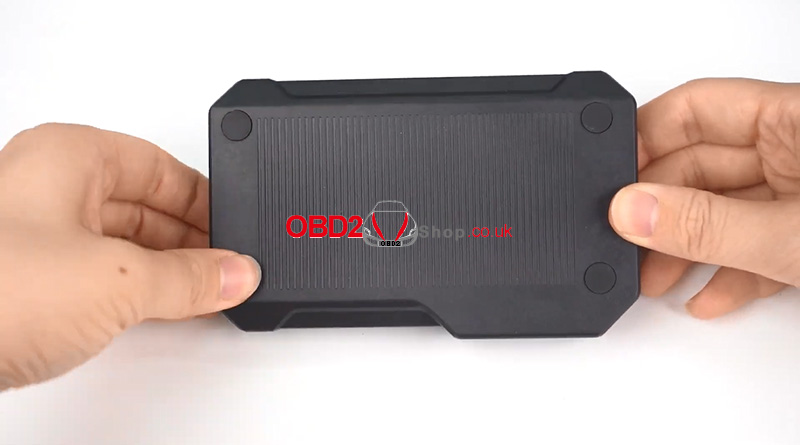

1. Remove the outer casing: Unscrew the four corner screws securing the device’s casing and carefully take off the cover.

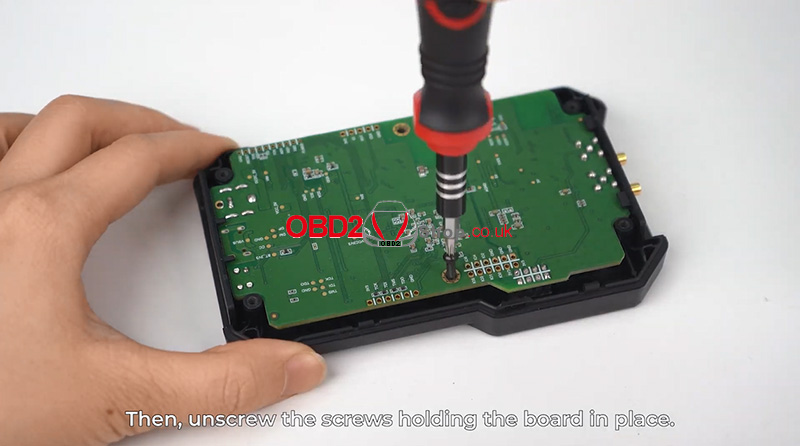

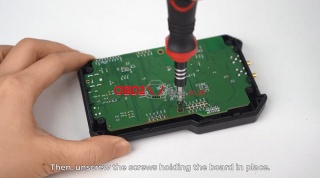

2. Access the internal board: Locate and unscrew the screws holding the main board in place.

Step 2: Replace the Chip

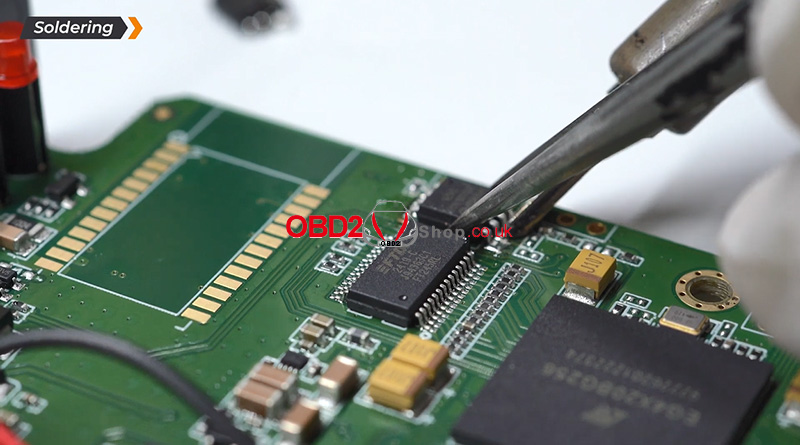

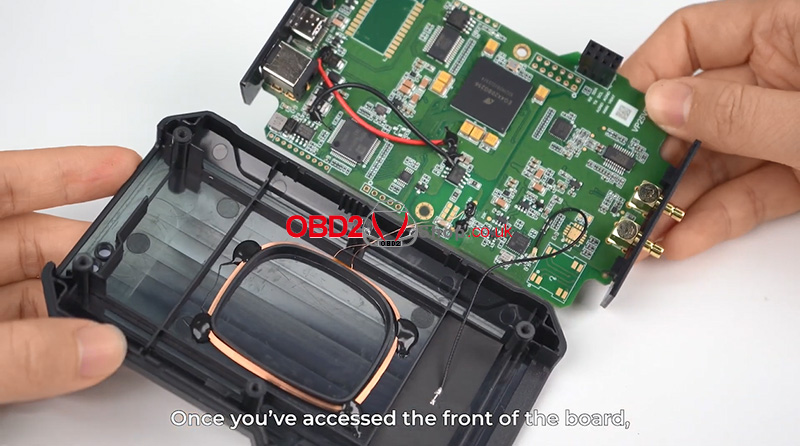

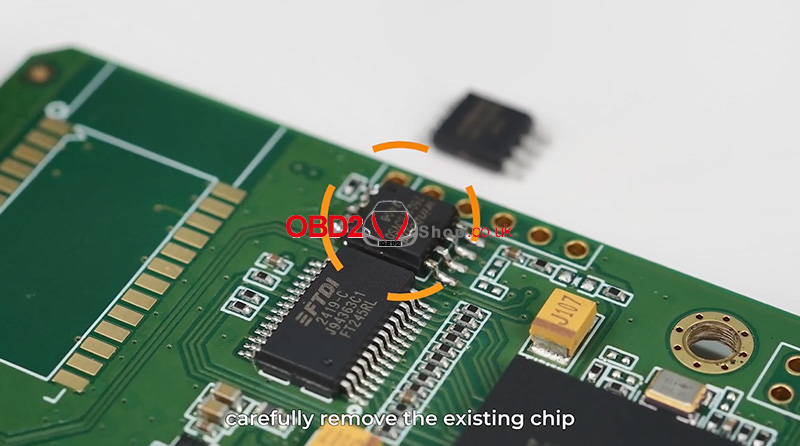

1. Remove the existing chip: After exposing the front side of the board, gently detach the original chip using appropriate tools.

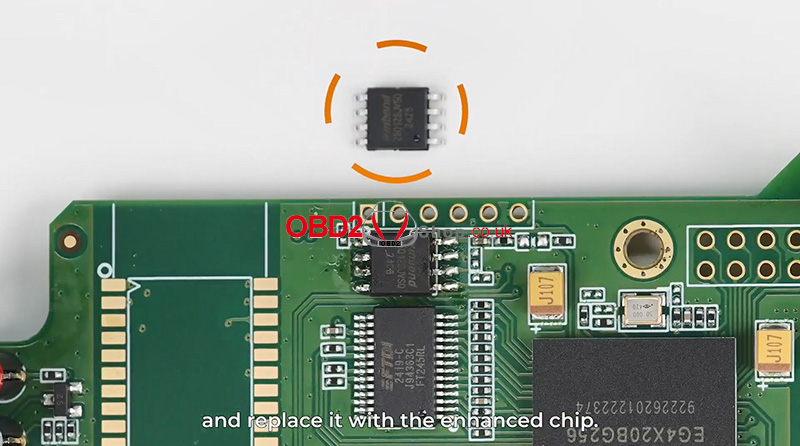

2. Install the enhanced chip: Insert the upgraded chip into the designated slot, ensuring proper alignment and secure contact.

Step 3: Reassemble the Device
1. Secure the board: Reattach the screws to fix the board back into its original position.
2. Close the casing: Replace the outer casing and tighten the four corner screws.

Important Notes

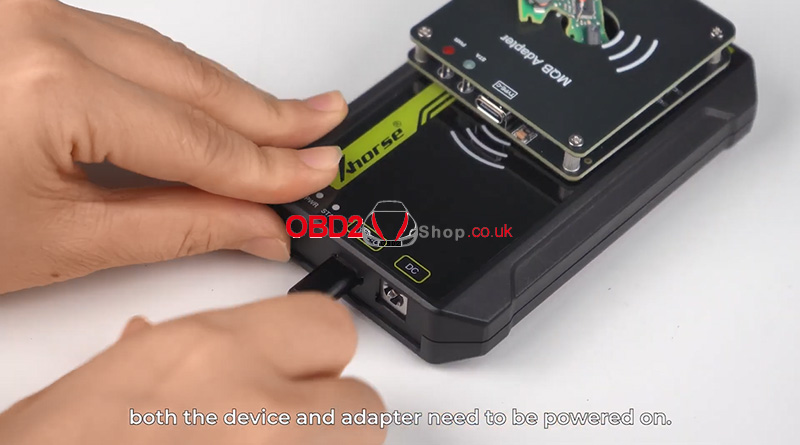

Please ensure the device and the adapter are powered on during future use.

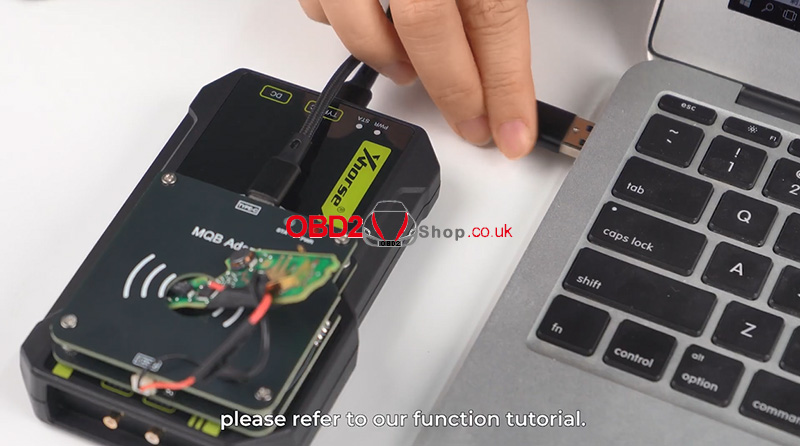

For detailed function usage, please refer to the MQB Key Function Tutorial.
