Yanhua ACDP Module 36: ZF-TC1782/TC275/TC277 Gearbox Clone

The New Yanhua Mini ACDP Module 36 is coming soon! It's designed for BMW, JLR, and Mercedes ZF-TC1782/TC275/TC277 gearbox clones and must work with the Mini ACDP-2 basic module.

Functions
1. Support BMW 3rd generation 8HP(TC275/TC277) gearbox clone.
2. Support 2017+ JLR 3rd generation 8HP(TC275) gearbox clone.
3. Support JLR 9HP50(TC275) gearbox clone.
4. Support JLR, Honda, JEEP, Chrysler, and other 9HP48(TC1782) gearbox clone.
5. Support Porsche 8DT/PDK2-TC400(TC275) gearbox clone.
6. Support Mercedes-Benz VGS3-FDCT(TC275) gearbox clone.

Connection Diagram

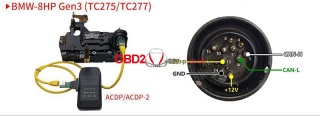

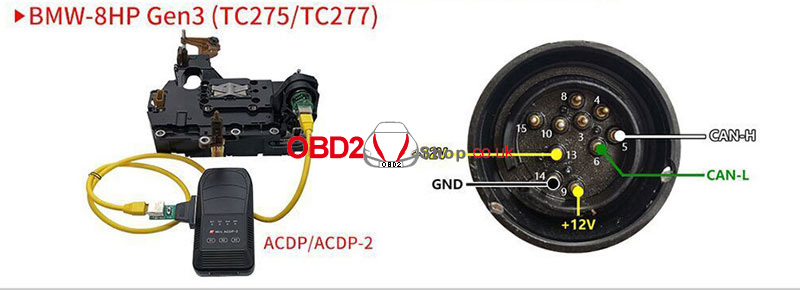

BMW-8HP Gen3(TC275/TC277)

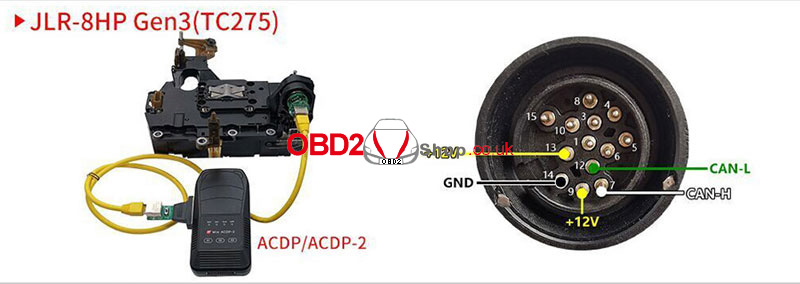

JLR-8HP Gen3(TC275)

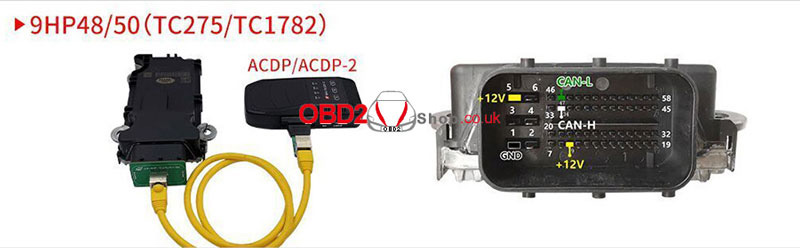

9HP48/50(TC275/TC1782)

Porsche 8DT/PDK2-TC400(TC275)

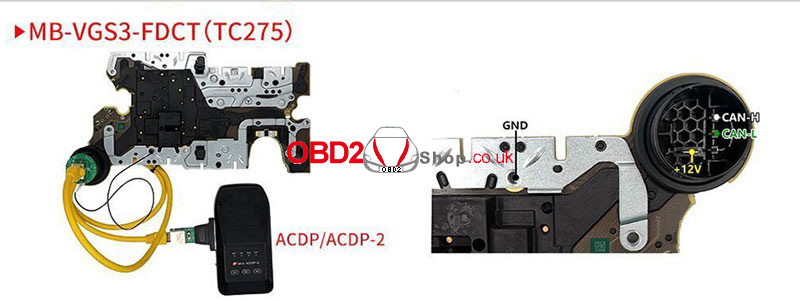

MB-VGS3-FDCT(TC275)

www.obd2shop.co.uk

Oznake: yanhua mini acdp module 36

31.12.2024. u 10:53 • 0 Komentara • Print • # • ^

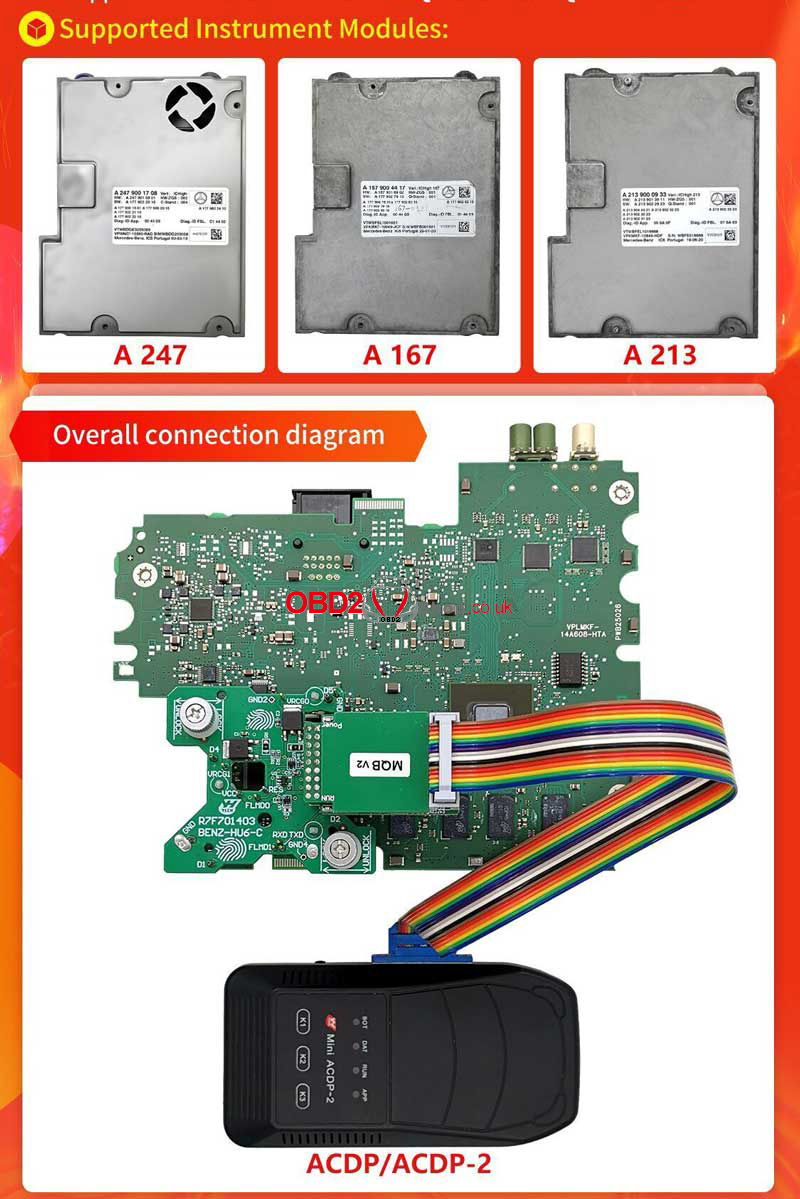

Yanhua ACDP Module 37: MB HU6 IC177 Mileage Correction

New release! Yanhua ACDP Module 37 for MB HU6 instrument module(IC177) mileage correction has been launched. It supports adjusting mileage for the A167/A213/A247 module with chip model R7F01403. It needs to work with Mini ACDP2 together.

Supported Vehicle Models:
Support for Mercedes-Benz W247 A/B/CLA/GLA/GLB after 2019.
Support for Mercedes-Benz W177 CLA/GLA after 2019.
Support for Mercedes-Benz W167 GLE/GLS after 2019.
Support for Mercedes-Benz W213 E/CLS after 2019.
Support for Mercedes-Benz H243 EQA and X243 EQB after 2021.

www.obd2shop.co.uk

Oznake: yanhua acdp module 37

31.12.2024. u 07:28 • 0 Komentara • Print • # • ^

ponedjeljak, 23.12.2024.

New! Lonsdor LT30-02 Smart Key for 2024- Toyota Camry Sienna

New release! The Lonsdor LT30-02 Universal Smart Key is the new LT Series used for Toyota 4A-AA and 4A-BA. It works with the Lonsdor K518 PRO key programmer. The Lonsdor LT30-01 has the same functions as the Lonsdor LT30-01, with only a difference in the circuit board.

Board Number
4A-AA: 2000
4A-BA: 2561, 0110, 1320, 2550

Frequency
312.09/314.35MHz
312.50/314.00MHz
314.00/312.50MHz
314.35/312.09MHz
314.35/315.10MHz
315.10/314.35MHz
315.10MHz
433.58/434.42MHz
433.92MHz
434.42/433.58MHz

Supported Models
Camry(2024-)
Sienna(2024-)
Corolla(2022-)
Corolla Cross(2022-)
Levin(2022-)

www.obd2shop.co.uk

Oznake: lonsdor k518 pro

23.12.2024. u 03:12 • 0 Komentara • Print • # • ^

četvrtak, 19.12.2024.

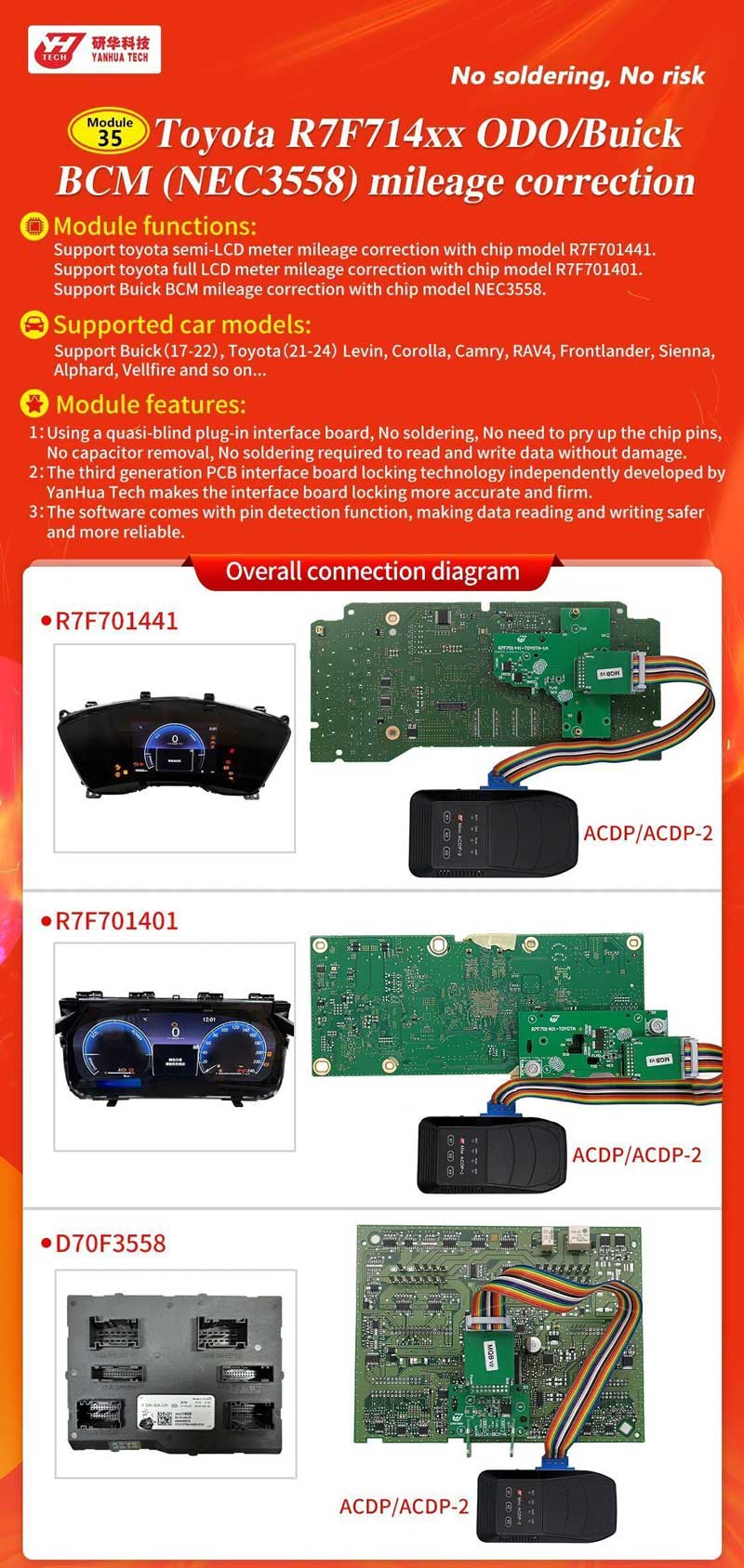

Yanhua Module 35: Toyota R7F714xx/Buick NEC3558 ODO Correction

New release! Yanhua ACDP Module 35 is coming soon this month. It is used for correcting Toyota R7F714xx ODO/Buick BCM(NEC3558) mileage. It needs to work with the Mini ACDP 2 basic module.

Functions
l Support Toyota semi-LCD meter mileage correction with chip model R7F701441.
l Support Toyota full LCD meter mileage correction with chip model R7F701401.
l Support Buick BCM mileage correction with chip model NEC3558.

Supported Car Models
l Buick(17-22)
l Toyota(21-24) Levin, Corolla, Camry, RAV4, Frontlander, Sienna, Alphard, Vellfire, etc.

Features
1. Using a quasi-blind plug-in interface board. No soldering, no need to pry up the chip pins. No capacitor removal and no soldering are required to read and write data without damage.
2. The third-generation PCB interface board locking technology independently developed by Yanhua Tech makes the interface board locking more accurate and firm.
3. The software comes with a pin detection function, making data reading and writing safer and more reliable.

www.obd2shop.co.uk

Oznake: acdp module 35

19.12.2024. u 08:57 • 0 Komentara • Print • # • ^

ponedjeljak, 16.12.2024.

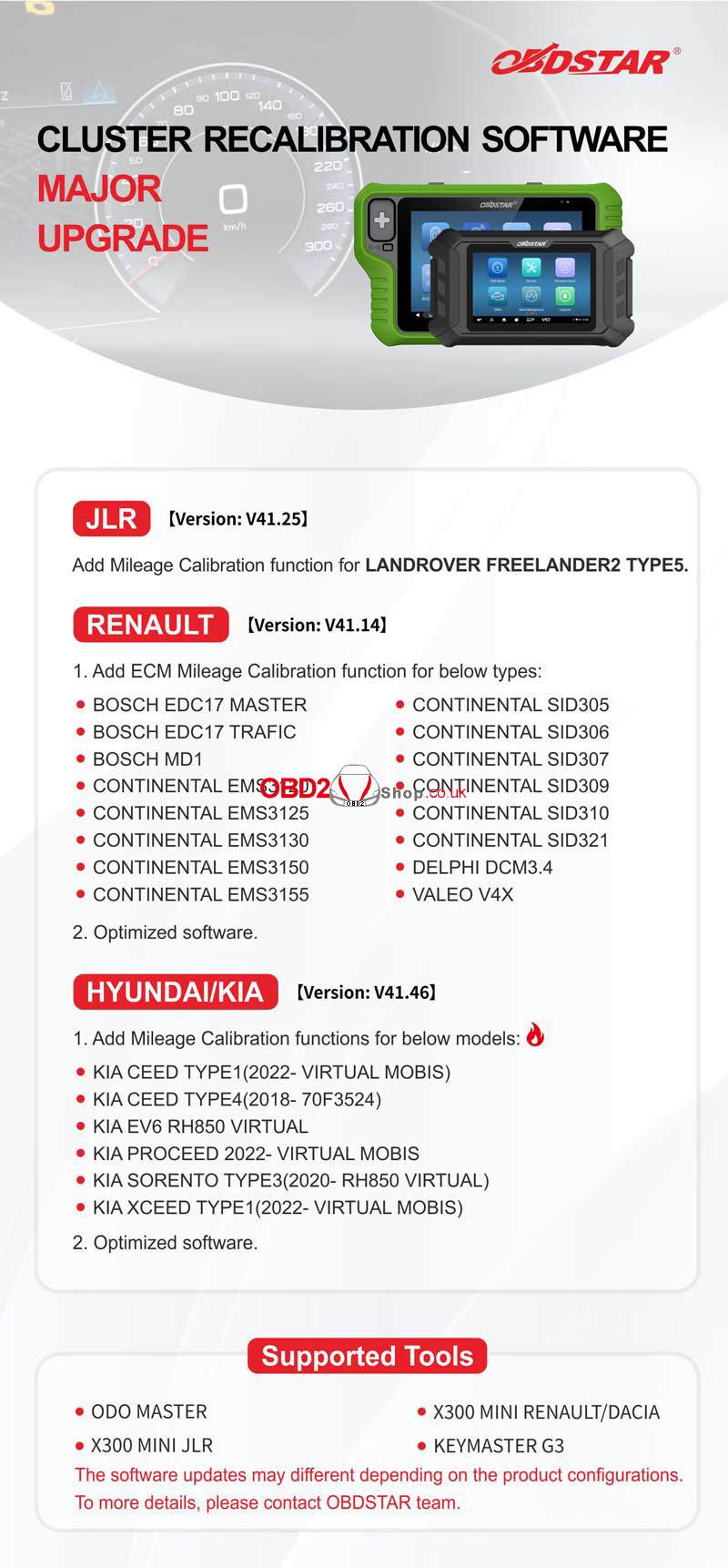

OBDSTAR JLR Renault Hyundai KIA ODO Calibration Upgrade

OBDSTAR has upgraded cluster recalibration software for JLR, Renault, and Hyundai/KIA. Now it's available on ODO Master, OBDSTAR X300 MINIRenault, X300 MINI JLR, and X300 Classic G3. Below are the upgraded details:

JLR Version: V41.25
Add Mileage Calibration function for LANDROVER FREELANDER2 TYPE5.

RENAULT Version: V41.14
1. Add ECM Mileage Calibration function for the below types:
BOSCH EDC17 MASTER
BOSCH EDC17 TRAFIC
BOSCH MD1
CONTINENTAL EMS3120
CONTINENTAL EMS3125
CONTINENTAL EMS3130
CONTINENTAL EMS3150
CONTINENTAL EMS3155

CONTINENTAL SID305
CONTINENTAL SID306
CONTINENTAL SID307
CONTINENTAL SID309
CONTINENTAL SID310
CONTINENTAL SID321
DELPHI DCM3.4
VALEO V4X

2. Optimized software.

HYUNDAI/KIA Version: V41.46
1. Add Mileage Calibration functions for the below models:
KIA CEED TYPE1(2022- VIRTUAL MOBIS)
KIA CEED TYPE4(2018- 70F3524)
KIA EV6 RH850 VIRTUAL
KIA PROCEED 2022- VIRTUAL MOBILE
KIA SORENTO TYPE3(2020- RH850 VIRTUAL)
KIA XCEED TYPE1(2022- VIRTUAL MOBIS)

2. Optimized software.

Supported Tools
ODO MASTER
X300 MINI JLR
X300 MINI RENAULT/DACIA
KEYMASTER G3

www.obd2shop.co.uk

Oznake: obdstar update

16.12.2024. u 08:21 • 0 Komentara • Print • # • ^

srijeda, 04.12.2024.

How to Disassemble VW MQB 5D Odometer?

This is a tutorial on disassembling the VW MQB 5D odometer. After that, we can install the Yanhua R7F701401/21-5D Interface Board to read and write data without soldering. By working with ACDP2 + Module 34, we can make data reading and writing safer for VW Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L, etc.

How to disassemble VW MQB 5D ODO?
Since the MQB5D odometer display and the housing are sealed with glue, you must be careful when disassembling them.

Based on these 3 buckle positions, determine the instrument's positive direction. To disassemble the instrument, it's recommended to use a sharp art knife.
1) Start from the lower left corner of the display.
2) Cut the sealant under and on both sides of the instrument.
3) Cut the sealant above the instrument.

Please Note: The below and on both sides.
l The blade should not be inserted more than 8mm deep to avoid scratching the inside of the odometer.
l When cutting the sealant, be careful not to tilt the blade upward.
l Do not pry the blade up and down.
l Be careful and slow when cutting.

When you're working on the top of the odometer, be careful of the wiring in the middle. So the blade should not be inserted more than 4mm deep at this position to avoid cutting the display cable.

After the sealant is cut, flip the display open. Place your fingers on the left and right grooves below. Remove the backlight panel and heat sink.

After completing, we can install the 5D Interface Board according to:
How to install Yanhua R7F701401/21-5D Interface Board?
