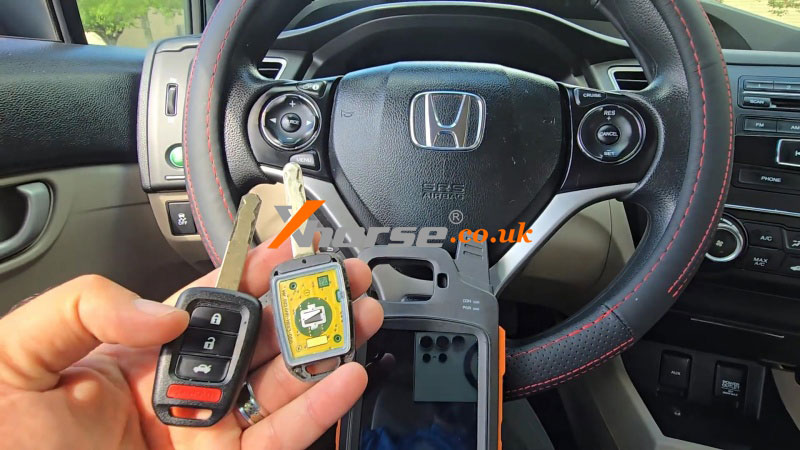

Hi guys, today I'm gonna show how to add a new key for 2014-2019 Honda Civic with Xhorse VVDI Key Tool Max Pro/Key Tool Max by OBD.

So first, we need to connect the Key Tool Max Pro to the OBD.
Turn the ignition on.

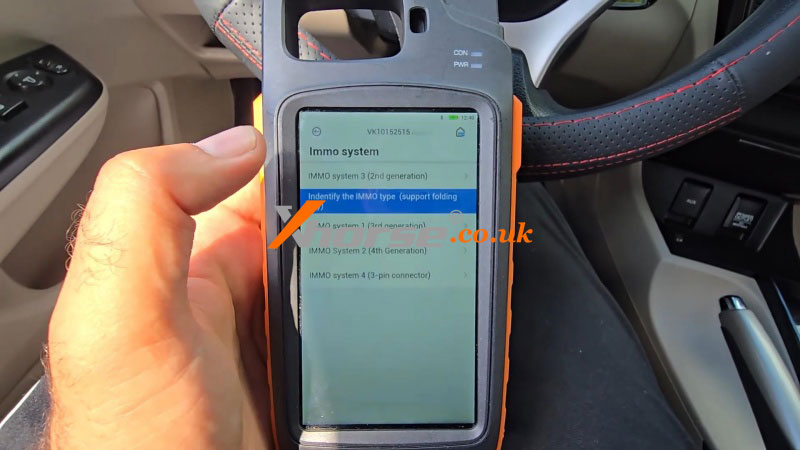

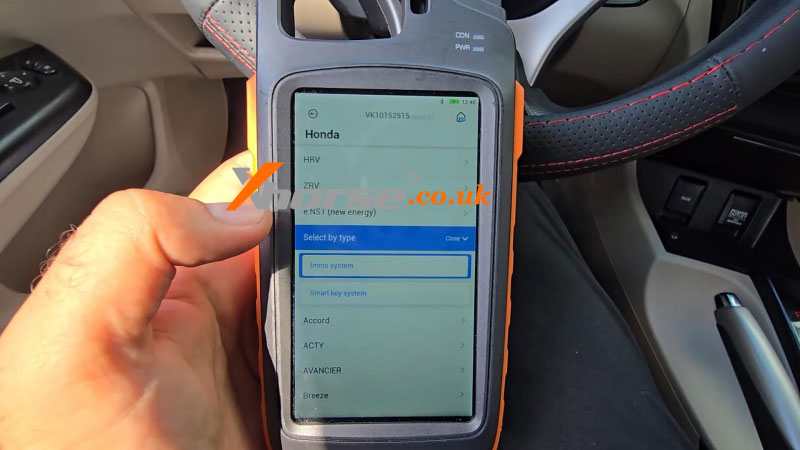

Immo programming >> Honda >> Select by type >> Immo system >> Indentify the IMMO type(support folding key) >> Immo programming >> Immo type identification

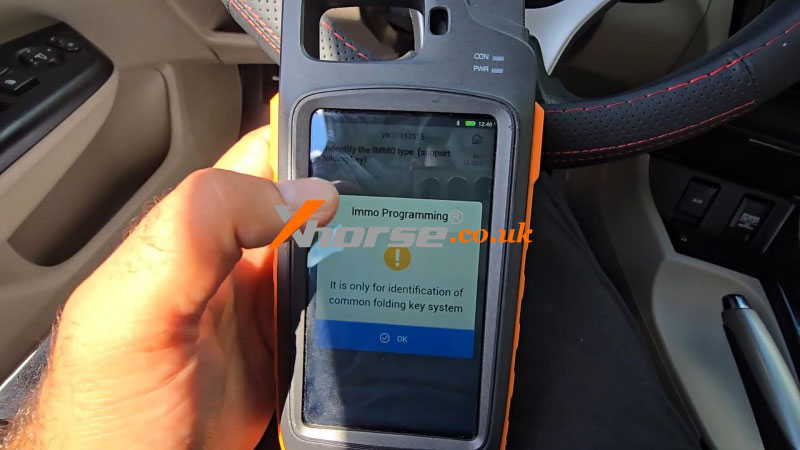

It is only for the identification of the common folding key system.
Press OK.
Turn the ignition off.
Switch ignition on.

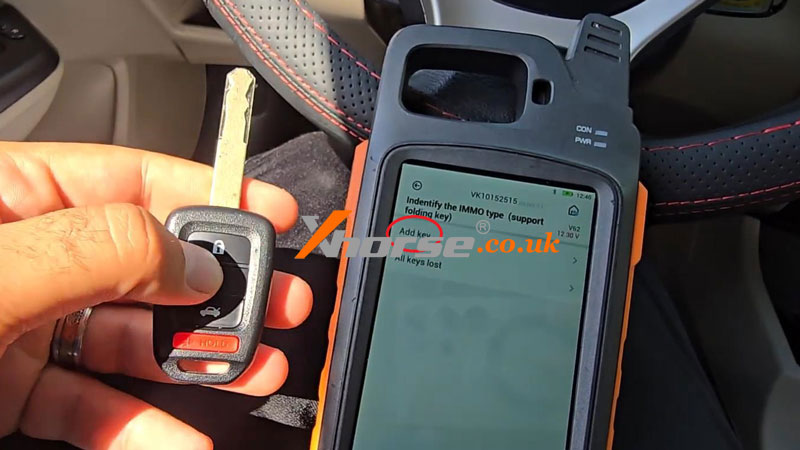

Press "Add key" on Key Tool Max Pro.

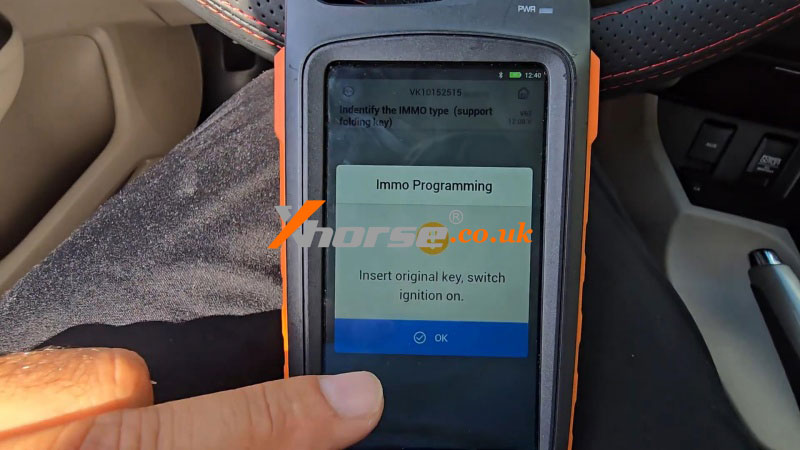

Insert the original key, and switch the ignition on.
Turn the ignition off.
Turn on the ignition switch.
If there is no response within 10s, please turn off/on the ignition switch again.
Turn on the ignition switch.
If there is no response within 10s, please turn off/on the ignition switch again.
Turn the ignition off.

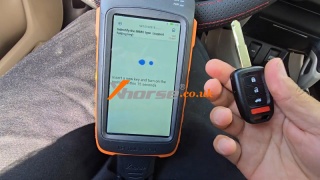

Insert a new key and turn on the ignition within 15s.
Turn the ignition off.
Switch ignition on.
Turn the ignition off.
Switch ignition on.

Is the immo indicator light off? Yes
Switch ignition on.
Program completed.

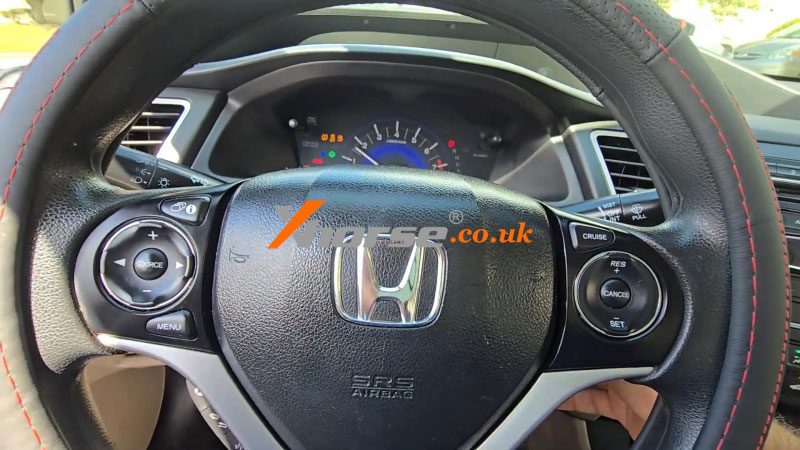

Check the control, it's working. Start the car OK.
The new key has been successfully programmed.








www.xhorse.co.uk

Oznake: vvdi key tool max

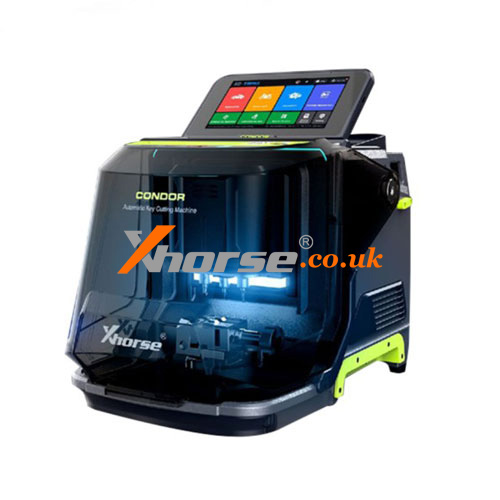

Tired of using multiple Key Cutting Machines for different key types? The Xhorse CONDOR XC-TWINS with All-Purpose Clamps is here to revolutionize key duplication. This all-in-one platform is engineered for locksmiths and automotive professionals who need precision, versatility, and efficiency.

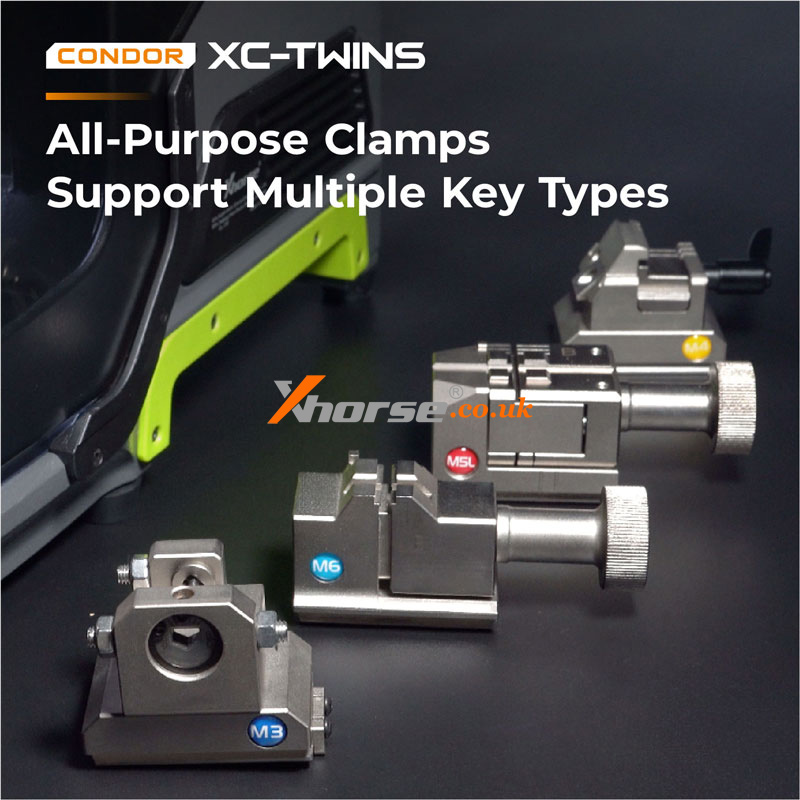

Four Specialized Clamps, One Complete Solution

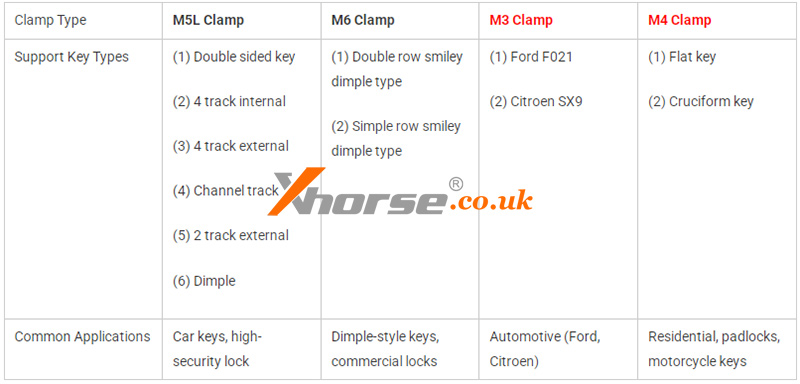

The CONDOR XC-TWINS comes equipped with four smart clamps - M5L, M6, M3, and M4 clamp (optional) - each designed to handle specific key profiles with unmatched accuracy:



Whether you're duplicating a standard house key, a car key, or a complex dimple key, the CONDOR XC-TWINS has the right clamp for the job.

Key Features at a Glance
lAll-Purpose Clamps: Cover a wide range of keys - from automotive and residential to motorcycle and specialty locks.

lCustomizable Key Data: Supports custom bitting and key blank shapes for unique or proprietary key systems.

lUser-Friendly Operation: Intuitive design makes it easy to switch between clamps and key types without downtime.



Elevate Your Key Cutting Game
The CONDOR XC-TWINS isn’t just a key machine—it’s a smart investment for any serious locksmith or key shop. With its ability to handle virtually any key type, you can expand your service offerings and increase customer satisfaction.

Ready to Upgrade?
The new CONDOR XC-TWINS Key Cutting Machine is now available for pre-order!
Don't miss out - secure your machine today and step into the future of key duplication.

www.xhorse.co.uk

Oznake: xhorse condor xc twins

The Xhorse MVCI Pro+ J2534 is a high-performance vehicle diagnosis and programming cable designed to serve as a comprehensive OEM replacement. It supports a wide range of vehicle brands and communication protocols, making it an ideal tool for professional automotive diagnostics and programming.

Supported Brands
The MVCI Pro+ offers compatibility with a wide range of vehicles, including but not limited to:
Mercedes-Benz, Maybach, Smart
Volvo
Nissan
Renault
Peugeot
Chevrolet, Buick, Cadillac, Opel
Volkswagen, Audi, Skoda, SEAT, Bentley, Lamborghini
Toyota, Lexus, Scion
Honda, Acura
Subaru
Ford
Mazda

Supported Diagnostic Software
The device is compatible with multiple OEM-level diagnostic platforms:
XENTRY Diagnosis / DAS / DTS – Mercedes-Benz, Maybach, Smart
VIDA – Volvo
CONSULT-III plus – Nissan
CLIP – Renault
DiagBox – Peugeot
Tech2Win / GDS2 / RDS – GM (Chevrolet, Buick, Cadillac, Opel)
ODIS – Volkswagen, Audi, Skoda, SEAT, Bentley, Lamborghini
Techstream – Toyota, Lexus, Scion
HDS – Honda, Acura
SSM-IV – Subaru
FDRS / IDS – Ford
MAZDA-IDS – Mazda
(Continuously updated with new brands and software support)

Supported Communication Protocols
The MVCI Pro+ J2534 fully supports a wide range of communication standards, including:
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
ISO-11898-2 DWCAN
SAE-J1850-VPW
SAE-J1850-PWM
SAE-J2411 SWCAN
VAG TP20 CAN
VAG TP16 CAN
VAG KWP1281
FD_ISO15765_PS
(Continuously updated with new protocols)

Key Features
Substitute for Original Hardware
Replaces costly OEM devices while fully supporting OEM-level vehicle diagnostics, programming, and functions.

Dual Diagnostic Standards
Complies with industry standards by supporting both D-PDU and J2534 protocols.

Supports Multiple Manufacturers
Compatible with a wide variety of brands, including Volkswagen, Toyota, Honda, Ford, and more.

Multi-Protocol Support
Covers a broad range of diagnostic protocols and OEM software, with continuous updates for expanded coverage.

Stable & Smooth Operation
Provides a reliable PC connection for a stable, smooth, and efficient workflow.

Real-Time Status Indicator
Equipped with signal lights to clearly display device status for efficient operation.

The Xhorse MVCI Pro+ J2534 is a professional-grade tool that delivers OEM-level diagnostic capabilities with multi-brand coverage, making it a cost-effective and future-proof solution for automotive diagnostics and programming.

www.xhorse.co.uk

Oznake: xhorse mvci pro j2534

The XHORSE KEY TOOL MIDI and VVDI2 are both powerful key programming tools, but they serve different needs. Here's a clear breakdown of their capabilities:

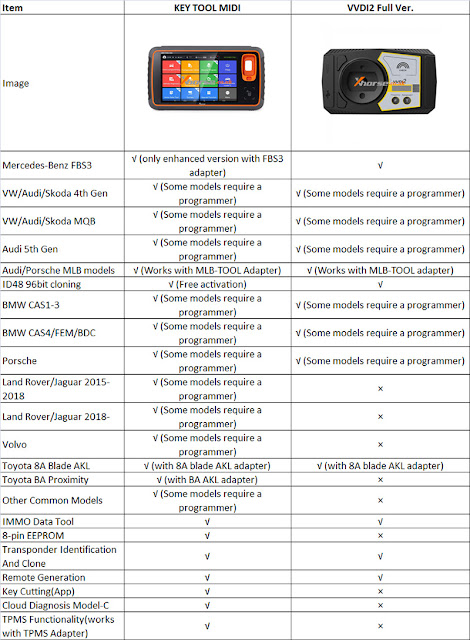

Comparison Table

Summary & Recommendation
The VVDI2 remains a strong option for specialists working primarily with VAG, BMW, and Porsche vehicles.

However, for professionals seeking a more versatile and integrated solution, the XHORSE KEY TOOL MIDI presents a compelling choice due to its wider brand coverage, additional hardware support features, and all-in-one capability. It effectively combines key programming, cutting, and diagnostic functions into a single portable device.

Therefore, for locksmiths and technicians who require a comprehensive toolset for a broader range of vehicle brands and services, the XHORSE KEY TOOL MIDI is highly recommended.

www.xhorse.co.uk

Oznake: key tool midi

This concise guide explains how to perform an all-keys-lost procedure for a 2005 Mercedes-Benz E500 W211 EIS using the Xhorse VVDI Key Tool Plus on bench.

Required Tools & Equipment:
VVDI Key Tool Plus
Solderless EZS Adapter for W211 EIS (ST12)
Multi-Function Adapter (to connect to Key Tool Plus)
DB15 Cable
T15 Torx Screwdriver
New VVDI BE Key
Optional: Bench Test Setup

Step-by-Step Operation Guide:

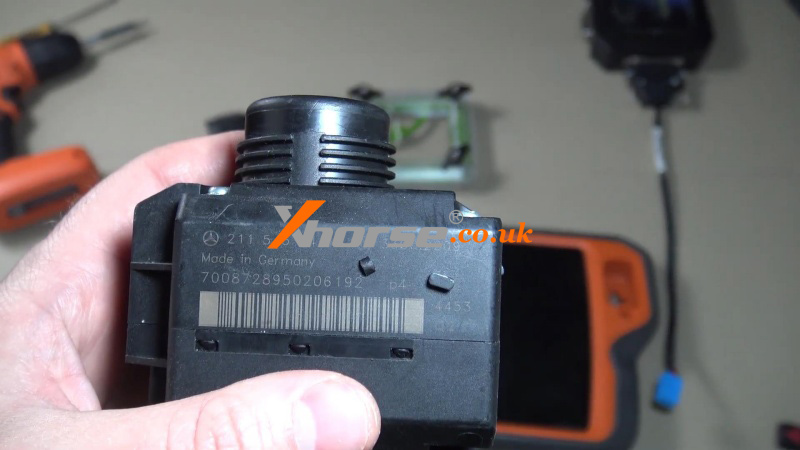

1. Prepare the EIS (Electronic Ignition Switch)
(1) Use the T15 screwdriver to remove the two screws from the EIS unit.
(2) Carefully open the EIS housing.

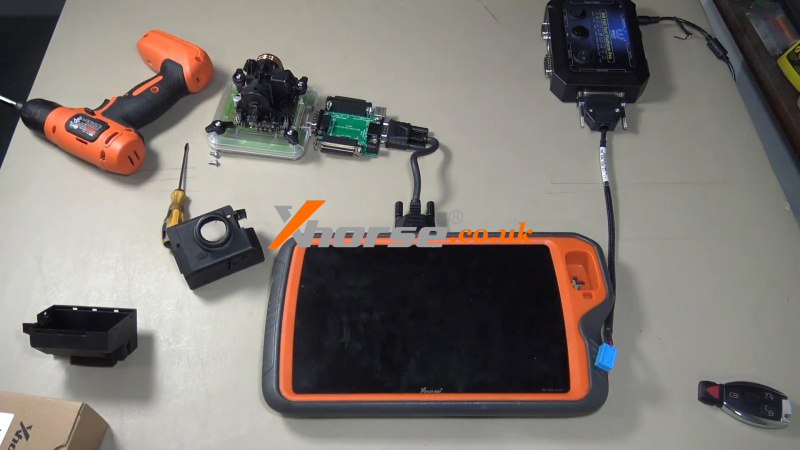

2. Connect the Adapters
(1) Seat the opened EIS correctly into the solderless adapter, ensuring the pins align with the contact pads.
(2) Connect the DB15 cable from the Key Tool Plus to the solderless adapter.
(3) Use the multi-function adapter to connect the DB15 cable to the Key Tool Plus tablet.


3. Read EIS Data
(1) On the Key Tool Plus, navigate to: Prog >IMMO > BENZ

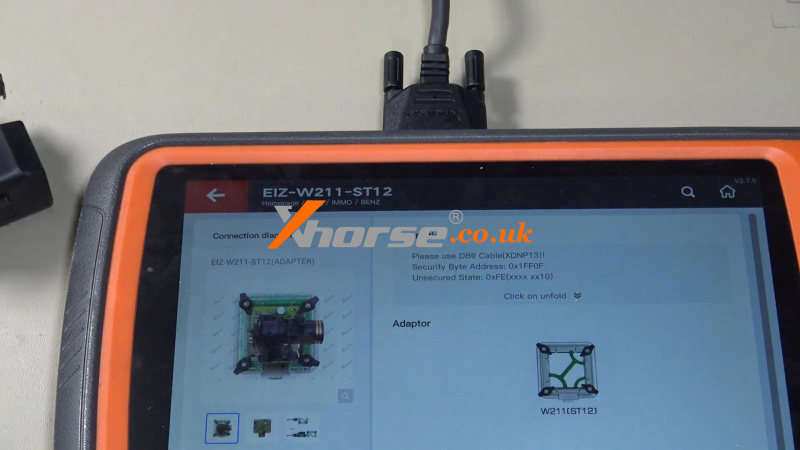

(2) Select the correct adapter option: EIZ-W211-ST12.

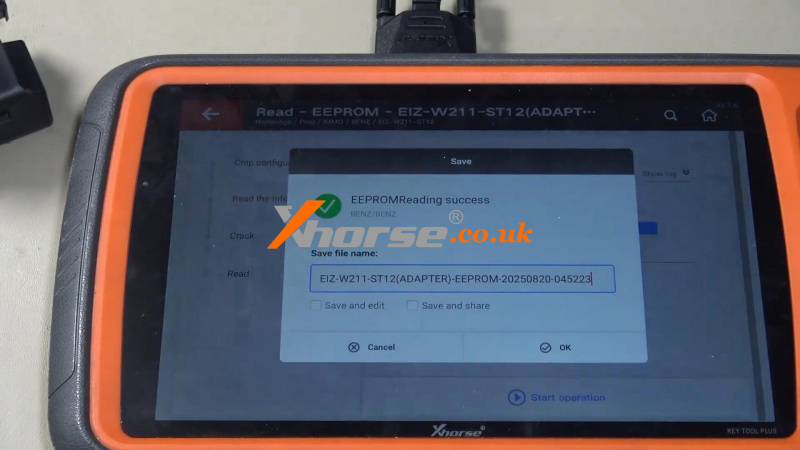

(3) Choose Read EEPROM. The tool will read and save the EIS data.
(4) Save the file with a recognizable name when prompted.




4. Prepare Key File
(1) Navigate to: IMMO > Benz >Select from system >Prepare Key File.
(2) Load the EEPROM file you just saved.

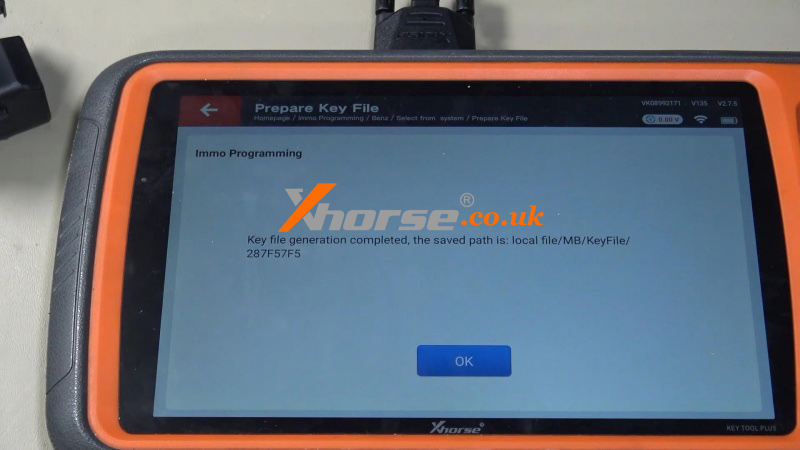

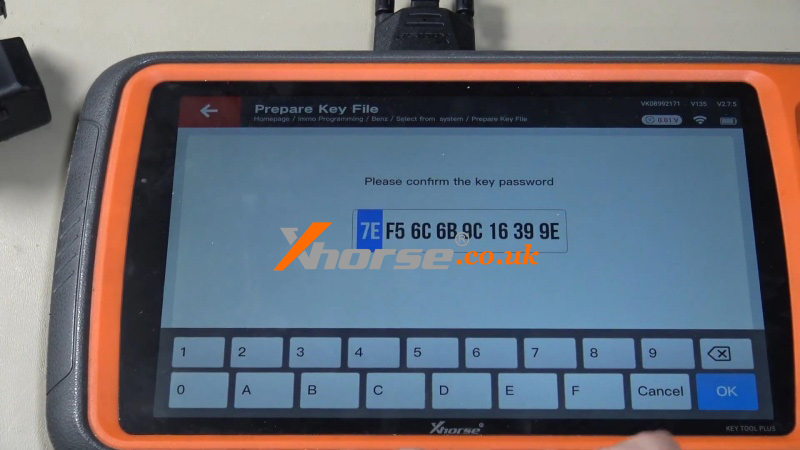

(3) The tool will display the security password. Confirm the process to generate a new key file.
(4) Save the prepared key file.







5. Program the New Key

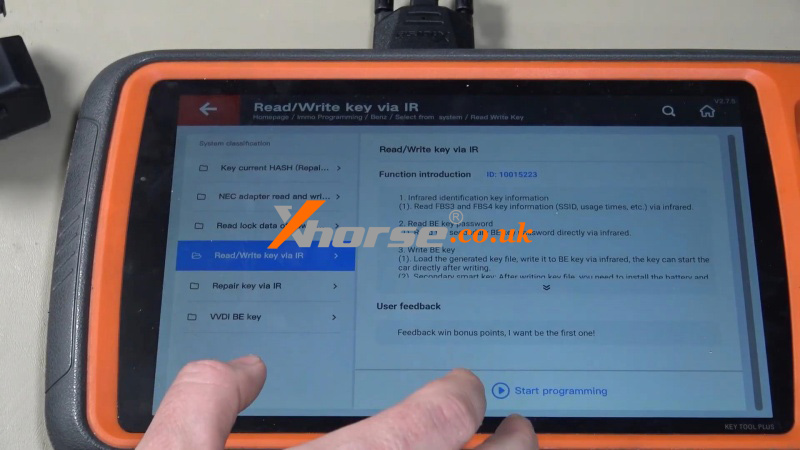

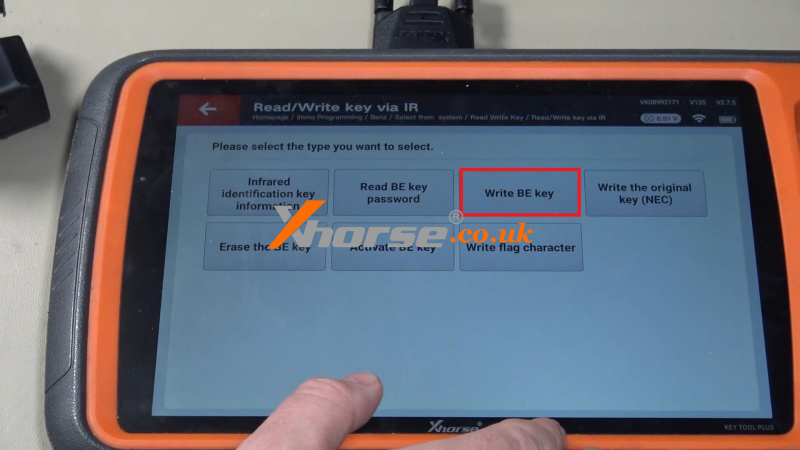

(1) Go to: Read/Write Key >Read/Write Key via IR> Write BE Key
(2) Load the unused key file you created in the previous step.
(3) Insert the blank smartkey into the Key Tool Plus tablet.

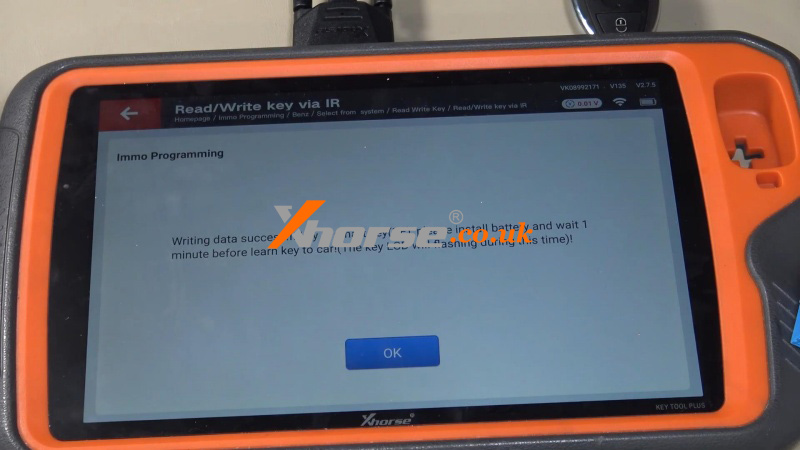

(4) Execute the Write Key command. The tool will confirm when programming is successful.









6. Test the Key (Bench Test Recommended)
(1) Reassemble the EIS unit.
(2) For verification, connect the EIS to a bench testing platform with power.

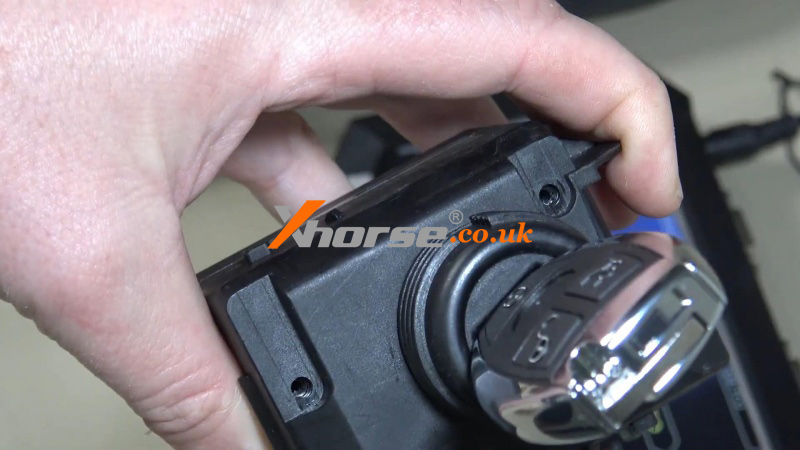

(3) Insert the newly programmed key. Observe the key's red light:
- The light may stay on initially. Remove and re-insert the key.
- A successful programming is confirmed when the red light turns off and you hear an internal lock click.



Conclusion
The EIS is now ready to be reinstalled in the vehicle. The solderless adapter method, using the Key Tool Plus, offers a fast and efficient way to obtain the password and program new keys for Mercedes W211 models, eliminating the need for soldering.

www.xhorse.co.uk

Oznake: vvdi key tool plus

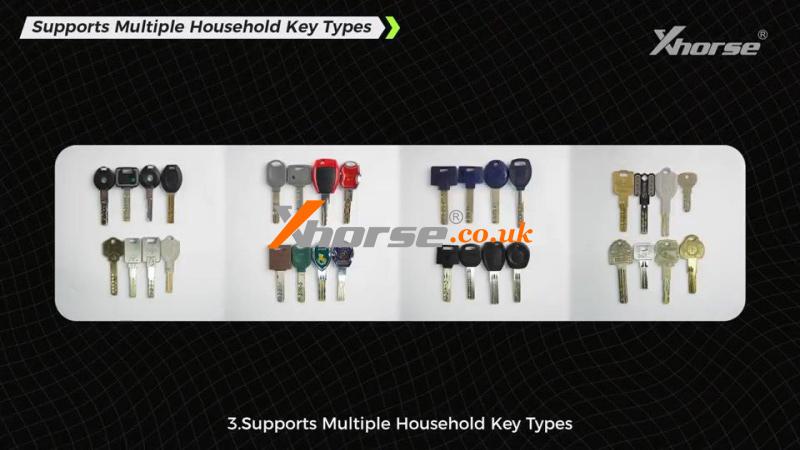

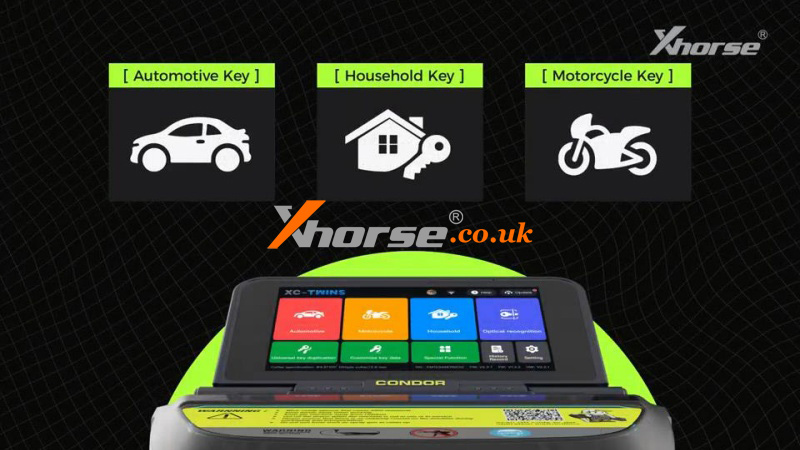

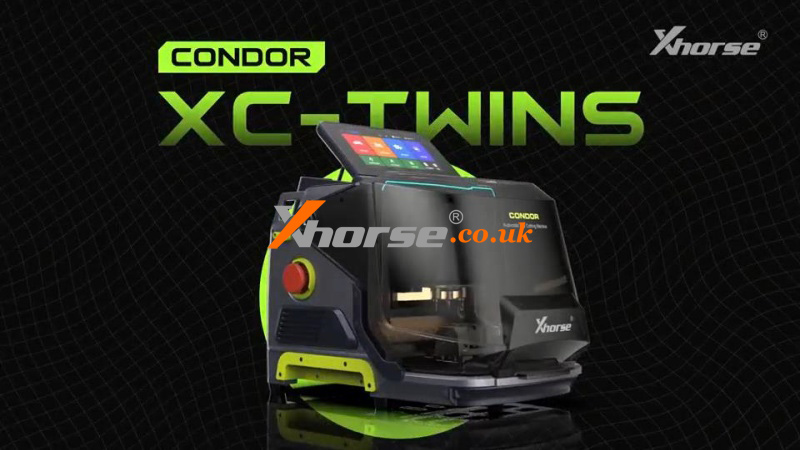

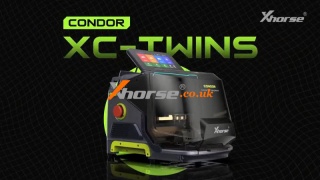

The Xhorse CONDOR XC-TWINS is a next-generation Key Cutting Machine engineered for intelligence, precision, and unmatched versatility. Designed to handle household, automotive, and motorcycle keys, it builds upon the success of previous models like the Condor XC-Mini Plus 2 with significant upgrades that enhance speed, ease of use, and reliability.

Key Features

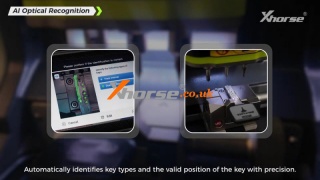

1. AI Optical Recognition
The XC-TWINS features advanced AI optical recognition that automatically identifies key types and accurately detects the valid positioning of the key. This eliminates guesswork and ensures high precision from the start.



2. New Double Cutter Design
Gone are the days of frequently switching cutters. The new dual-cutter system saves time and effort, allowing seamless transitions between different key types without interruption.

3. Brand-New Pressure Sensor Technology
Equipped with a built-in pressure sensor, the machine can detect non-conductive materials such as plastic or aluminum. This prevents probe damage during operation, increases tool lifespan, and enhances user safety.

4. All-Purpose Clamps System

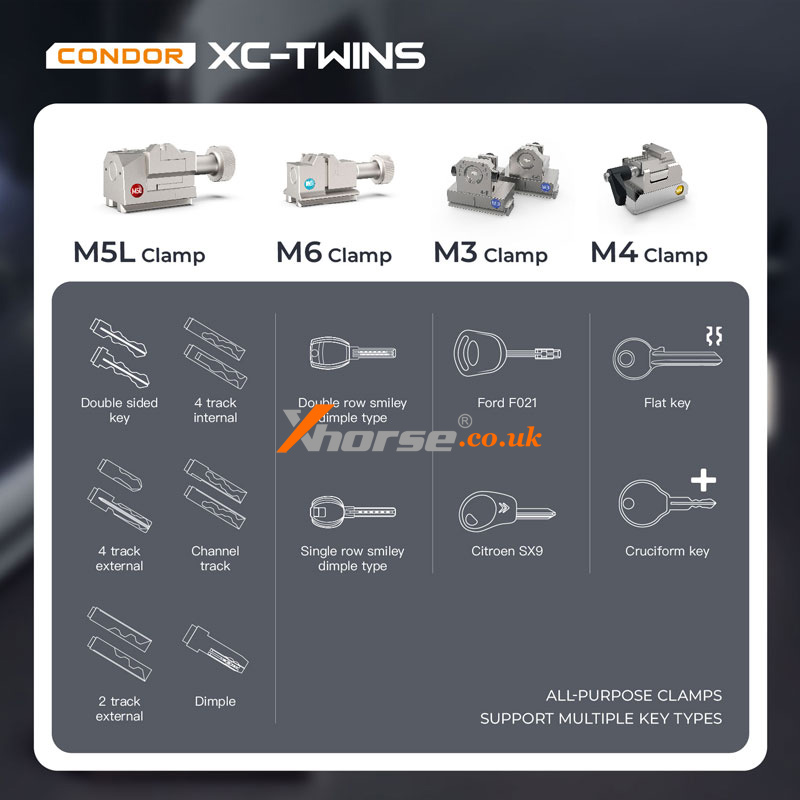

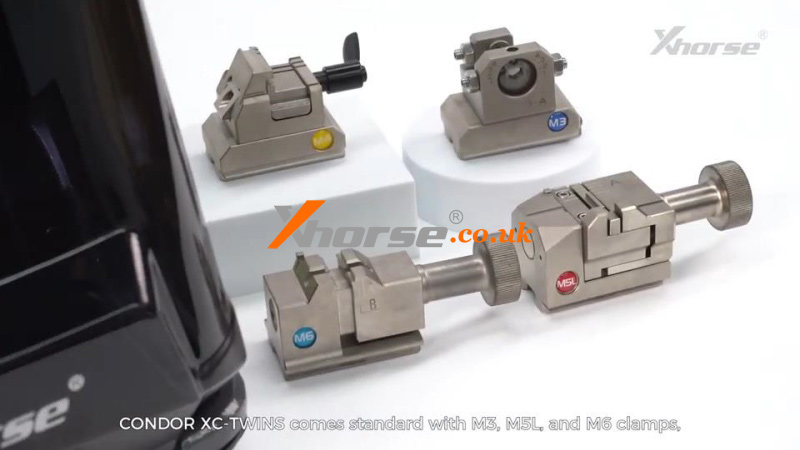

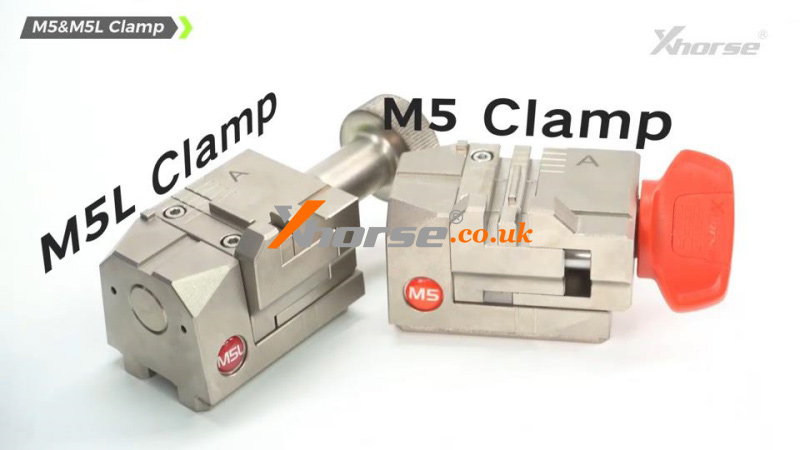

The XC-TWINS comes standard with M3, M5L, and M6 clamps (with optional M4 Clamp available). Each is designed for specific key types:

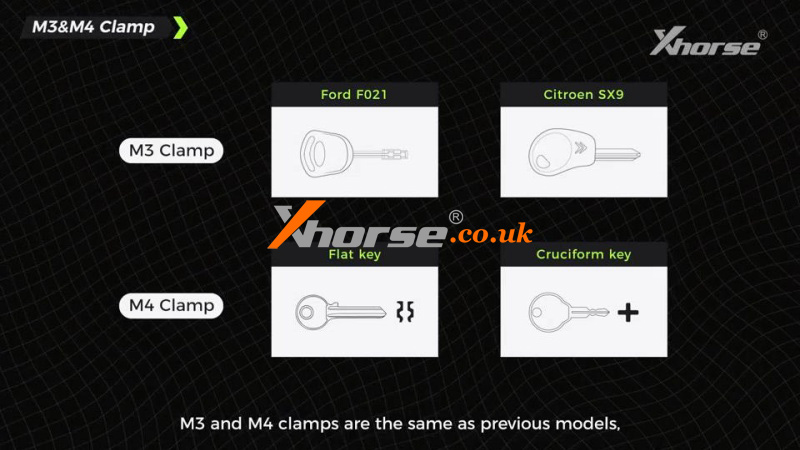

M3 & M4: Compatible with keys supported in previous models.

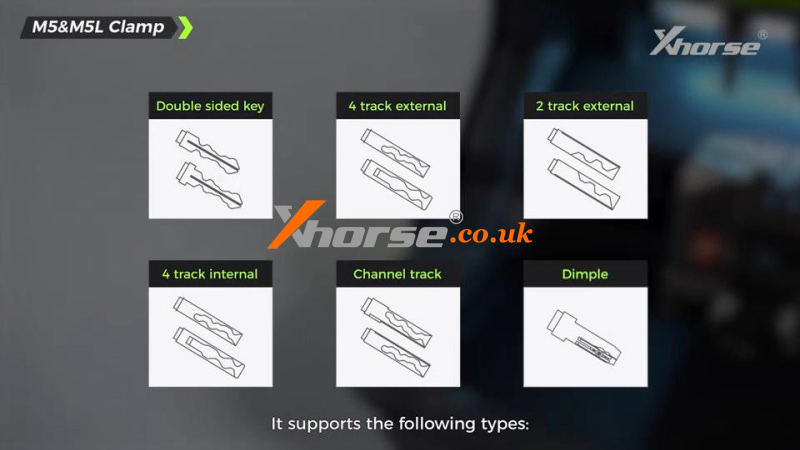

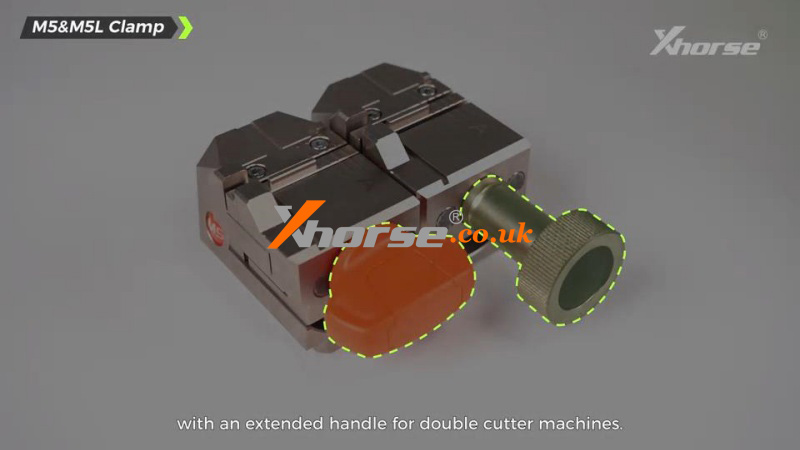

M5L: Upgraded with an extended handle ideal for double-cutter operation.

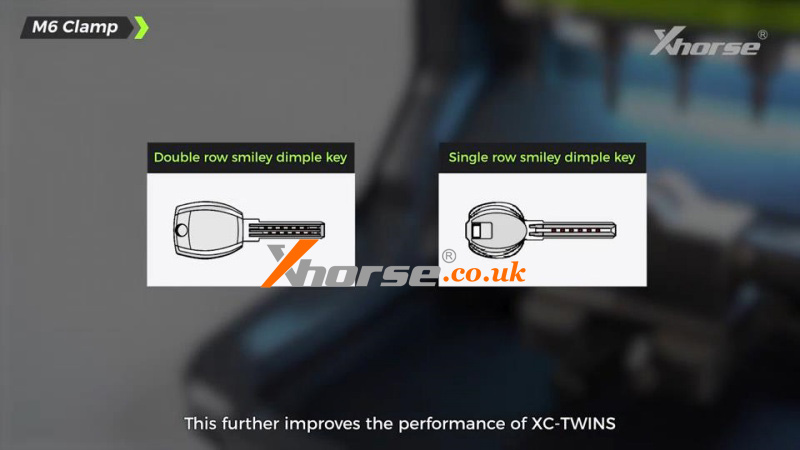

M6: Specifically designed for the XC-TWINS, supporting single and double-row smiley dimple keys, further solidifying its capability in household key cutting.

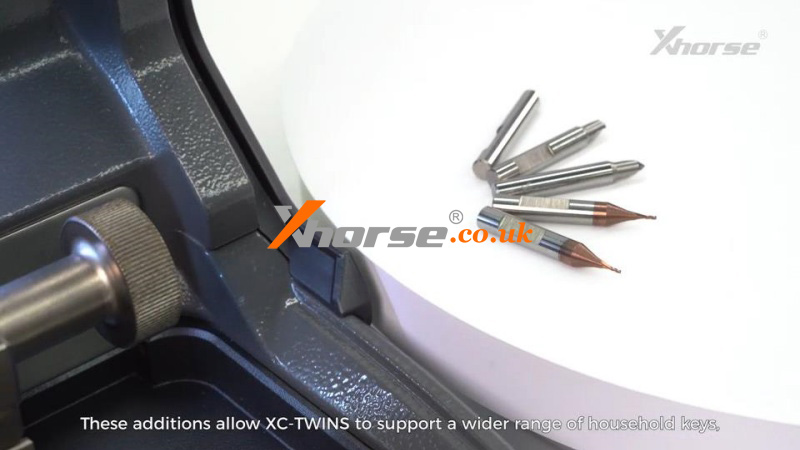

5. Expanded Cutter Options

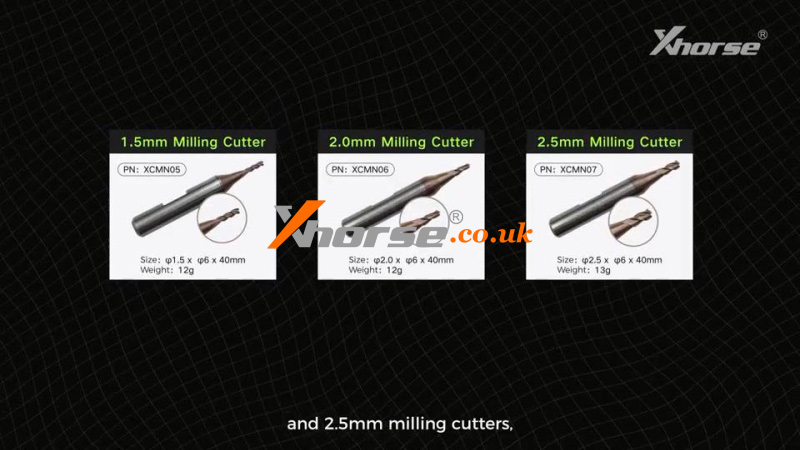

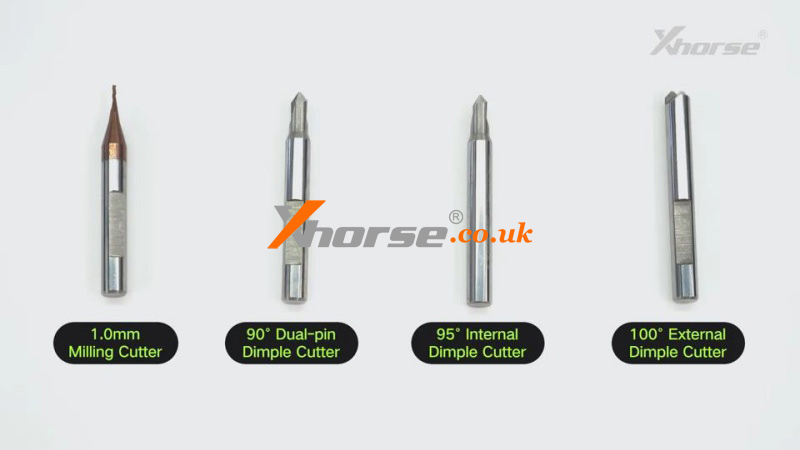

In addition to the standard 1.5mm, 2mm, and 2.5mm milling cutters, the XC-TWINS now supports:
1.0mm milling cutter
90° dual pin dimple cutter
95° internal dimple cutter
100° external dimple cutter
Optional 0.9mm milling cutter

These additions greatly expand the range of supported keys, especially household dimple types, making the XC-TWINS one of the most complete key cutting solutions on the market.







Performance and Usability
From design to execution, every aspect of the CONDOR XC-TWINS is crafted to make key cutting faster, easier, and more reliable. Whether you're a locksmith dealing with high volume or a technician requiring versatility, this machine delivers consistent results across various key materials and types.

Conclusion
The CONDOR XC-TWINS is a robust, feature-rich key cutter that combines innovative technology with practical improvements. Its AI recognition, double cutter design, enhanced clamp system, and broad cutter compatibility set a new standard in the key duplication industry.

Stay tuned for more detailed demo videos and operational guides coming soon. If you're looking for a machine that grows with your needs, the CONDOR XC-TWINS is worth serious consideration.

Related Videos:

Xhorse CONDOR XC-TWINS Key Cutting Machine is Coming!
https://youtu.be/SuuCDCi7MYo

What can Xhorse Condor XC TWINS do for you?
https://youtu.be/CJeLD_A_HBc

www.xhorse.co.uk

Oznake: condor xc twins
