We previously introduced Xhorse MLB-TOOL to assist in adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models. Now, with the launch of the MLB Tool Solderfree Adapter Kit, we're enhancing the ease and safety of your work. These tools are designed to optimize your process, ensuring a more efficient and seamless workflow.

The MLB Solder-Free Adapter is available in five distinct types, each designed to support specific vehicle models. Please note the MLB Solder-Free Adapter still requires the removal of 2 capacitors. The wiring diagram is shown below:

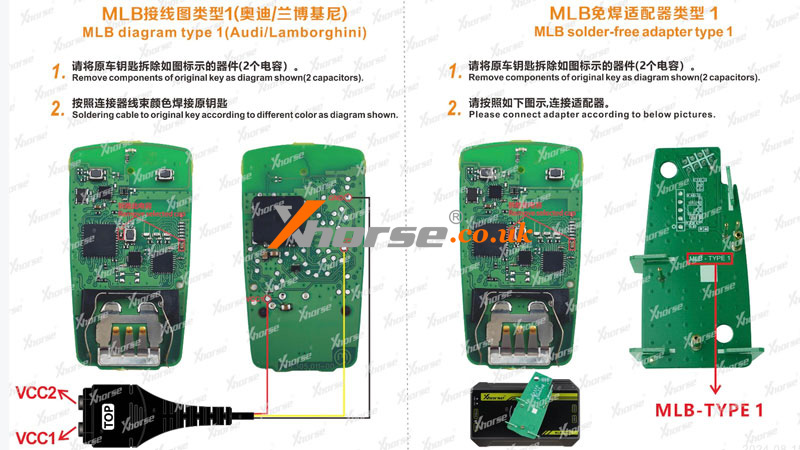

Type1:

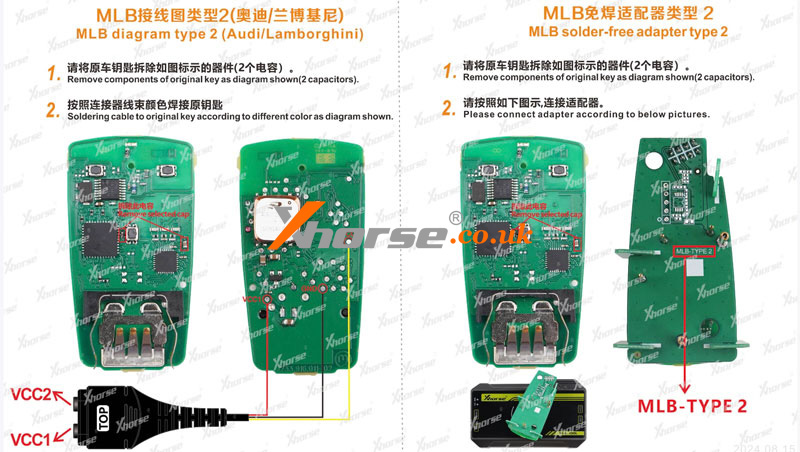

Type 2:

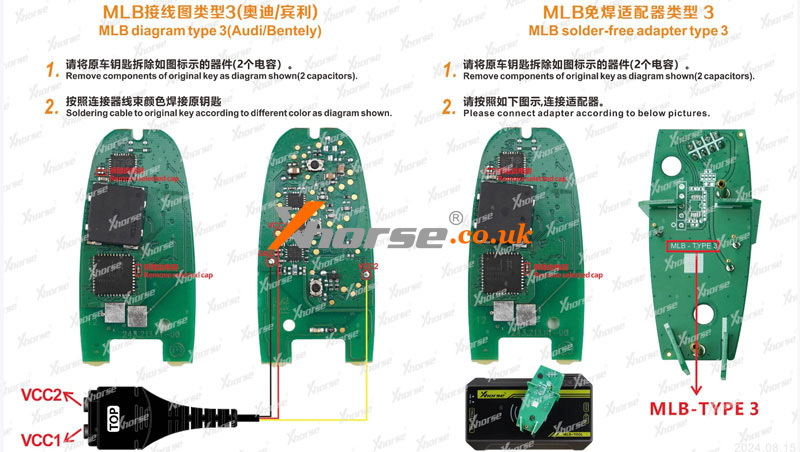

Type3:

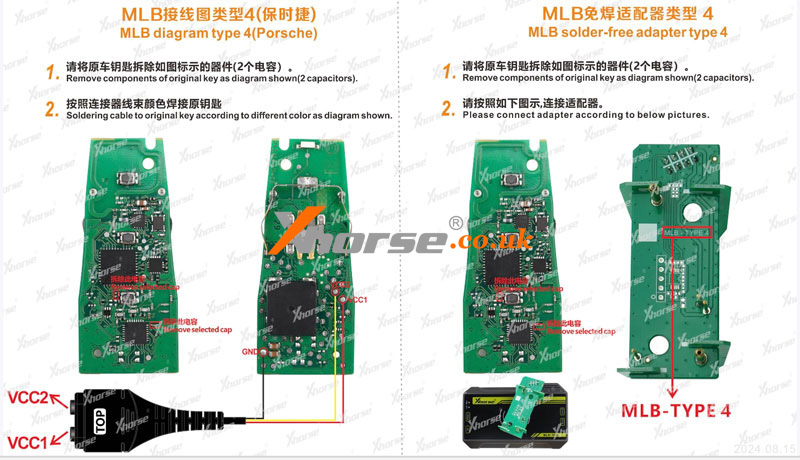

Type4:

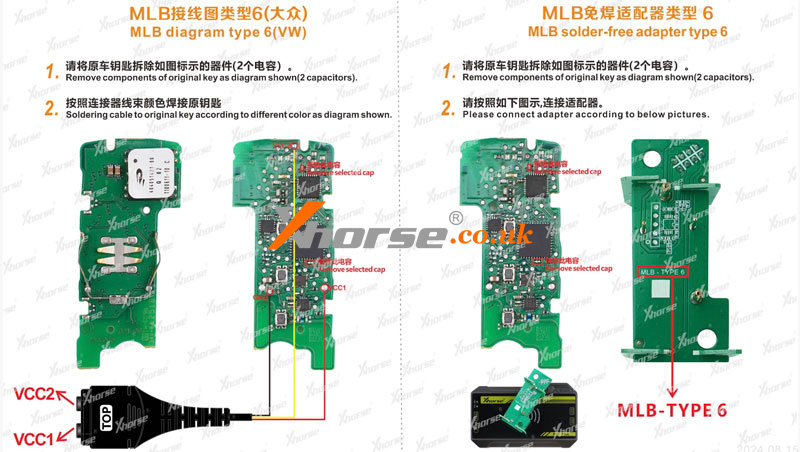

Type6:


www.xhorse.co.uk

Oznake: mlb tool solder free adapters

With the latest upgrade [Software Version V2.1.9|Firmware Version V1.3.4], the Xhorse MVCI PRO J2534 Cable now supports an expanded range of diagnostic software brands.

The newly added brands are:
Mercedes-Benz
Maybach
Smart
Volvo
Nissan
Renault
Peugeot
Chevrolet
Cadilac

With the inclusion of these major brands, the MVCI PRO J2534 Cable now offers enhanced compatibility and functionality, establishing itself as an indispensable tool for servicing a wider variety of vehicles.

Following the upgrade, the comprehensive list of supported software and protocols for the MVCI PRO J2534 Cable includes:

Supported Diagnostic Software


Supported Communication Protocol
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
ISO-11898-2 DWCAN
SAE-J1850-VPW
SAE-J1850-PWM
SAE-J2411 SWCAN
VAG TP20 CAN
VAG TP16 CAN
VAG KWP1281
FD_ISO15765_PS

(More protocols are continuously updated)


Read also:
How to use MVCI PRO J2534 Diagnosis Programming Cable?

www.xhorse.co.uk

Oznake: xhorse mvci pro j2534
