This is a Land Rover Freelander 2010; its original key does work. And the customers come for a spare remote key. So I'm going to use the new XHORSE KEY TOOL MIDI to program a new key for this car.

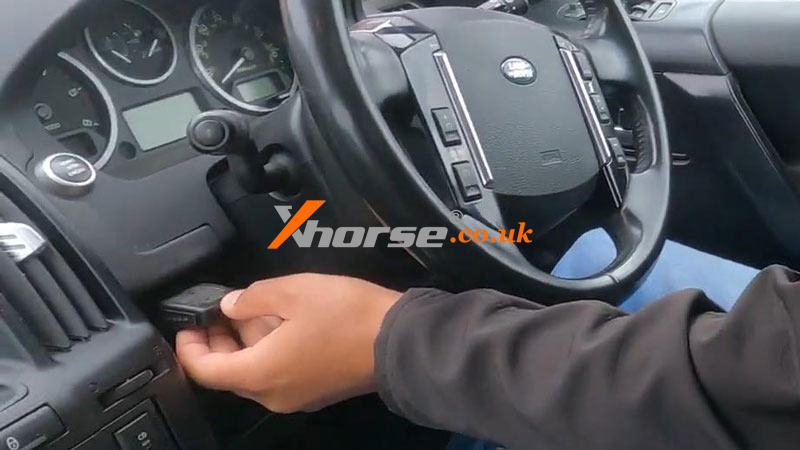

Plug the KEY TOOL MIDI via OBD.

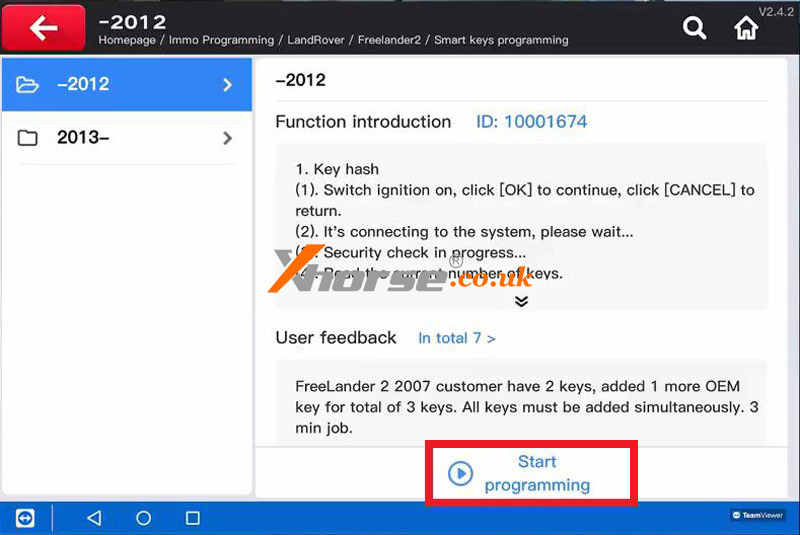

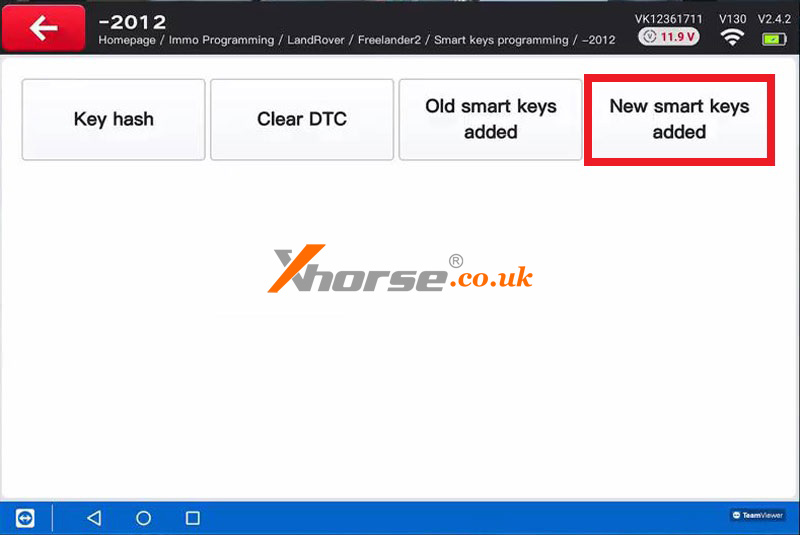

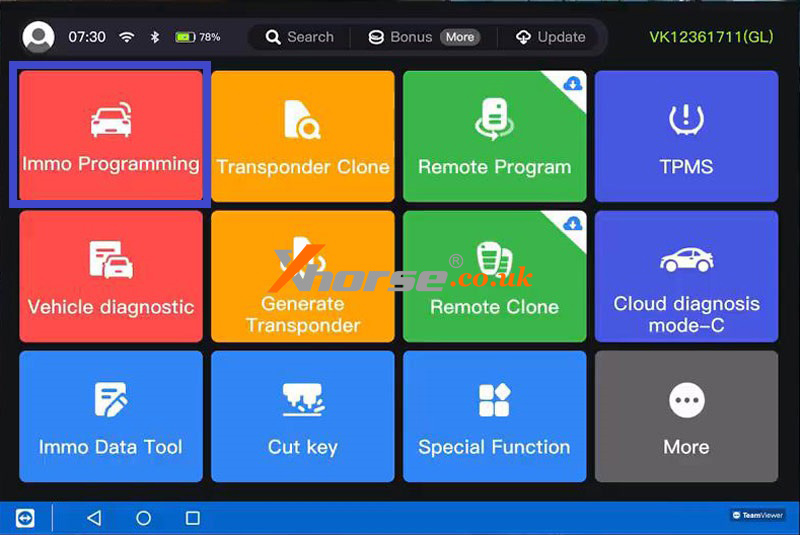

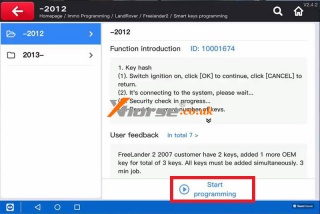

Immo programming >> EUROPE >> LandRover >> Freelander2 >> Smart keys programming >> -2012 >> Start programming >> New smart keys added

You need at least one programmed key. Click OK to continue.

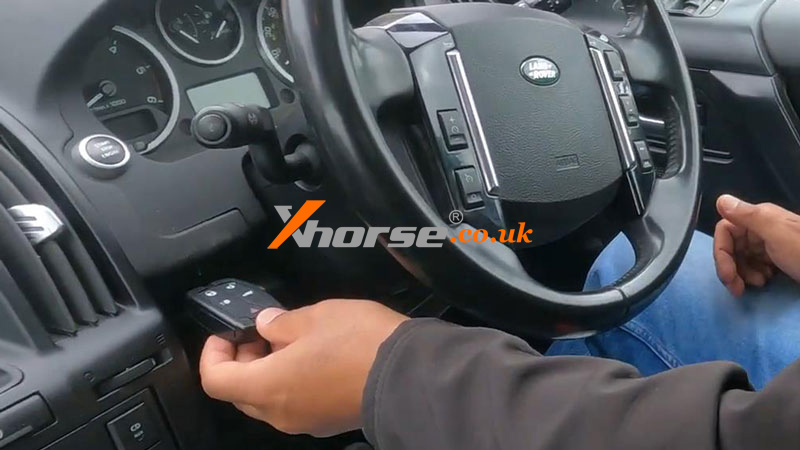

Push the programmed key into the key slot, and click OK to continue.

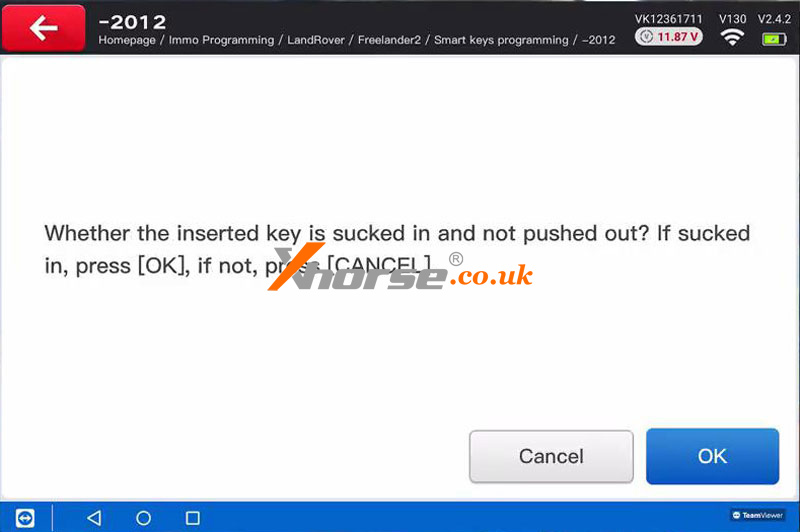

Whether the inserted key is sucked in and not pushed out?
If sucked in, press OK; if not, press CANCEL.

Turn on the ignition switch, press OK to continue.
Switch ignition off, click OK to continue.
Remove the key from the card slot, and click OK to continue.
Please insert the smart card again.

To program the next one? Yes.
Remove the key from the card slot, and click OK to continue.
Push the new key to be programmed into the card slot again. If it is ejected, please insert it again.
Note: if the direction lock sounds, the key is sucked in; otherwise, insert the key again.

Whether the smart card been fully drawn into the card slot? No.
Please insert the smart card again.
This time, I heard it click.
Whether the smart card been fully drawn into the card slot? Yes.
To program the next one? No.

Turn on the ignition switch, press OK to continue.
Operation completed!








Now I'll try and start the vehicle, which starts absolutely fine.
Unlock works, lock works.

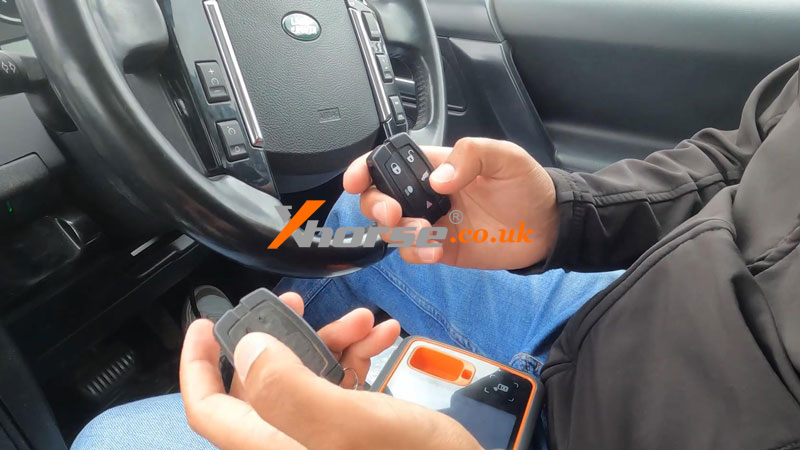

So now I've got two keys programmed using KEY TOOL MIDI.


www.xhorse.co.uk

Oznake: xhorse key tool midi

When it comes to automotive key programming and immobilizer solutions, Xhorse VVDI offers two popular tools: theKey Tool MIDI andKey Tool Max Pro. Both devices are powerful, but they cater to slightly different needs. Below, we break down their differences to help you decide which one is right for you.

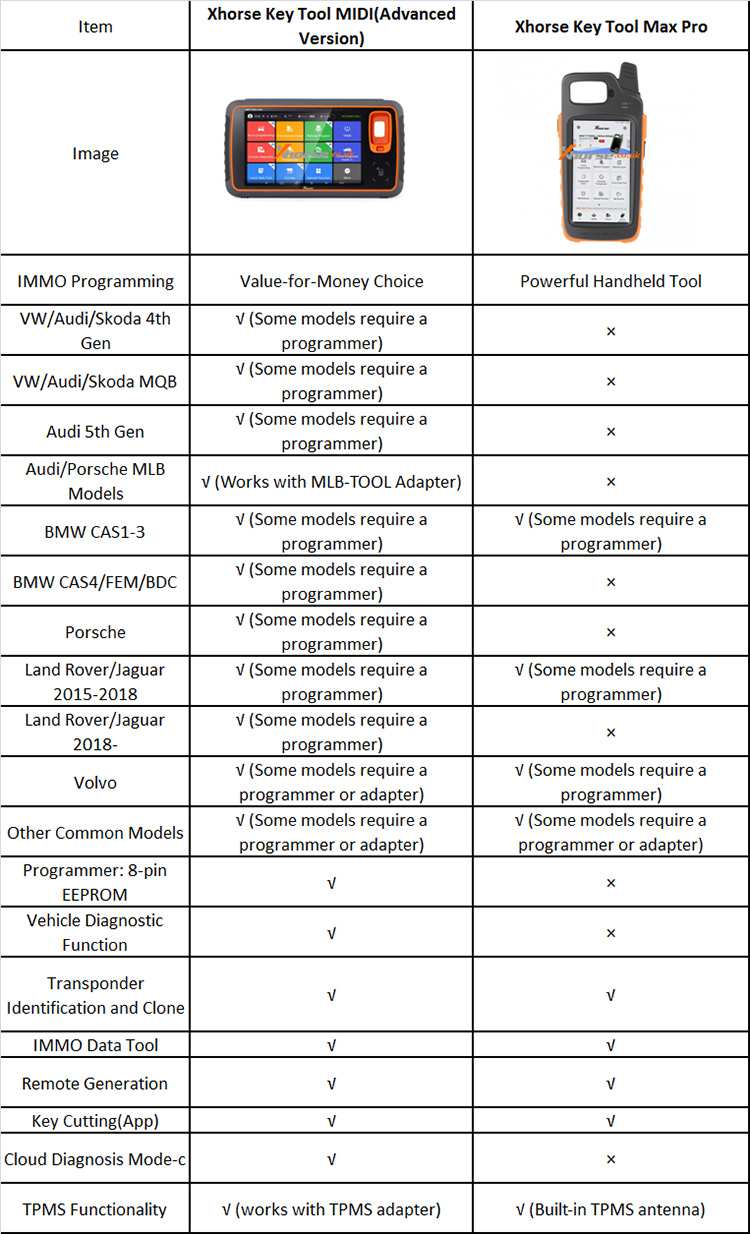

Comparison Table

Key Difference
1. Functionality and Coverage
Key Tool MIDI:
(1) Supports a wider range of vehicle models, including VW/Audi/Skoda (4th Gen, MQB), Audi 5th Gen, Porsche MLB (with adapter), BMW CAS1-4, Land Rover/Jaguar (2015-2018), and Volvo.
(2) Requires additional programmers or adapters for some functions.
(3) Offers vehicle diagnostic functions and 8-pin EEPROM programmer support.

Key Tool Max:
(1) More limited in vehicle coverage (e.g., no support for VW/Audi MQB, Audi 5th Gen, or Porsche MLB).
(2) Excels in BMW CAS1-3, Land Rover/Jaguar (2015-2018), and Volvo (similar to MIDI but lacks some advanced Audi/VW functions).
(3) Does not support diagnostics or 8-pin EEPROM programming.

2. Key Features
Key Tool MIDI is value-for-money, which supports more features like IMMO programming, diagnostic function, TPMS, cloud diagnosis, remote generation, and key cutting.

Key Tool Max is a powerful handheld tool that supports remote generation, key cutting, and TPMS.

3. Hardware and Extras
Key Tool MIDI:
(1) Works with adapters (e.g., MLB-TOOL adapters for Porsche/Audi).
(2) Better for users who need diagnostics and EEPROM programming.

Key Tool Max:
(1) Built-in TPMS antenna (no adapter needed).
(2) More compact and focused on key programming and cloning.

Which One Should You Buy?
Choose the Key Tool MIDI if:
 You work with VW, Audi, Skoda, Porsche, or BMW frequently.
 You need diagnostic functions and EEPROM programming.
 You want cloud diagnosis and broader vehicle coverage.

Choose the Key Tool Max if:
 You primarily handle BMW, Land Rover, Jaguar, or Volvo.
 You prefer a handheld tool with built-in TPMS.
 You don’t need diagnostics but want a streamlined key programming device.

Conclusion
Key Tool MIDI is the versatile all-rounder, ideal for locksmiths and mechanics who need diagnostics and wide vehicle support.

Key Tool Max is the specialist tool, perfect for professionals focused on key programming and TPMS without extra adapters.

Both tools are excellent - your choice depends on your specific needs. For maximum flexibility, go with the MIDI. For ease of use in key programming, the Max is a strong contender.

Upgrade your toolkit today and boost your automotive service efficiency!
