Xhorse Dolphin XP-005/005L displays error 6/56/3 while decoding or cutting keys, indicating that there is a problem with the conductivity of the machine.

Please follow the steps to enter the conductivity measurement interface for relevant testing.







After entering the testing interface, click on Start to test. If the connection has not been made according to the prompts on the diagram, the cutter will directly display OK, indicating that the device cutter is in a short-circuit state.˙˙



If the cutter is in a short-circuit condition, first remove the back cover and front cover of the device.

Then turn counterclockwise to loosen the screws 1, 3, and 5 in the figure on the right, and remove these three screws,

Then tighten the screws 2 and 4 in the right figure clockwise, and push open the black metal structural component,

Remove the main axis assembly connected to the cutter again.

.
Pull the main axis assembly upwards and observe if the white insulation paper is damaged.
If it is damaged, please replace this insulation paper.
If there is no damage, remove the entire main axis and clean the iron filings inside.
The usual reason is that the cutter is in a short circuit state due to iron filings at the bottom, after cleaning, reinstall the screws, when installing screws, pay attention to the order.

First, loosen the screws 2 and 4 in the diagram on the previous page clockwise, then tighten the screws of 1, 3, and 5.



For more tech support, please visit www.obd2shop.co.uk

Oznake: xhorse dolphin xp 005

Upgrade your key grinding experience with the Xhorse CONDOR XC-003, a high-performance grinding wheel designed for professionals and locksmiths. Whether you're duplicating standard keys or tackling complex side-cut keys, this machine is built to deliver exceptional results every time. Pre-orders are now available - secure yours today!

Why Choose the Xhorse Condor XC-003?
High-Precision Cutting

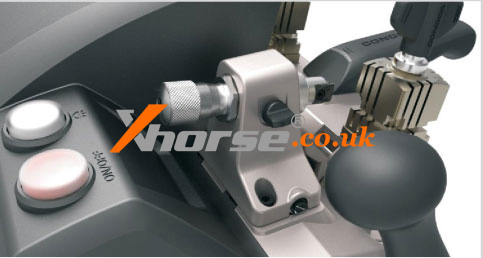

The Condor XC-003 is manufactured using German-made DMG CNC machines. It ensures ultra-precise key replication down to 0.01mm. Its adjustable guiding mechanisms and fine guide pin allow for flawless duplicates, even as the cutter wears over time.




Durable & Lightweight Aluminum Body
The machine features a sturdy yet lightweight aluminum frame, making it easy to transport and durable.


Two Cutting Modes for Flexibility
l Standard Mode: Energy-saving and safe, the motor locks when the handle is pressed to its limit.
l Continuous Run Mode: Ideal for grinding keys efficiently without interruption.


User-Friendly Design

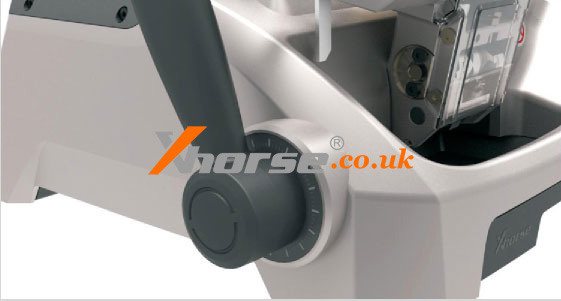

l Ergonomic handle for comfortable operation.

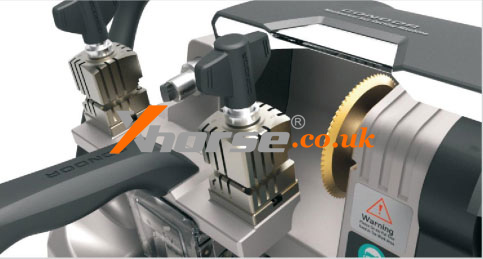

l 4-sided rotating clamp for quick switching between key sides - effortlessly operated with one hand.
l Wide 112mm clamp spacing accommodates plastic keys without hassle.
l Built-in bright LED lights for clear visibility in low-light conditions.

Safety First
l Power switch protection prevents accidental activation.
l Self-resetting handle for emergency motor stops.
l Factory-equipped safety guard to protect against debris.

Professional-Grade Performance
l Custom high-hardness tungsten steel cutter for efficient, long-lasting use.
l Super-power motor ensures smooth, uninterrupted operation.
l Removable brush for polishing and finishing keys to perfection.


Pre-Order Now and Elevate Your Key Cutting Game!
Don’t miss your chance to own the Condor XC-003 Key Cutting Machine - a perfect blend of innovation, precision, and safety. Whether you're a locksmith, hardware store owner, or DIY enthusiast, this machine is a game-changer.

Free technical support is included with every purchase.
Contact us now or visit our website to reserve your unit today!

www.xhorse.co.uk

Oznake: xhorse condor xc003

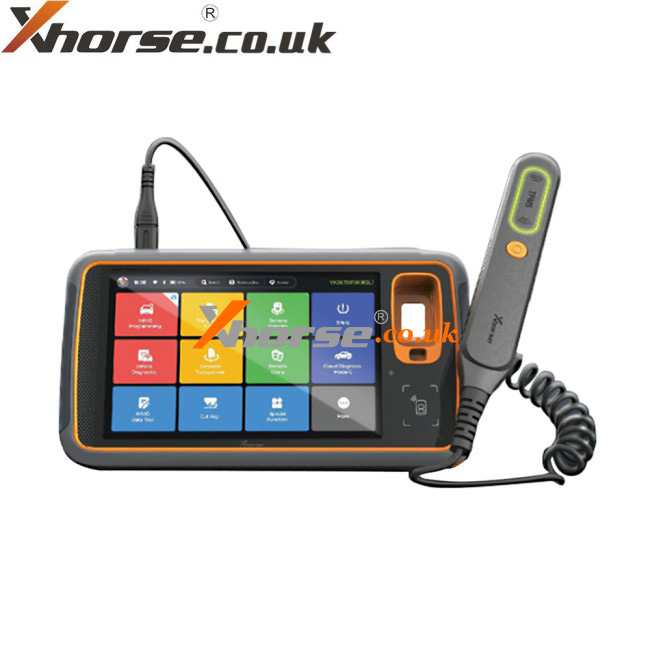

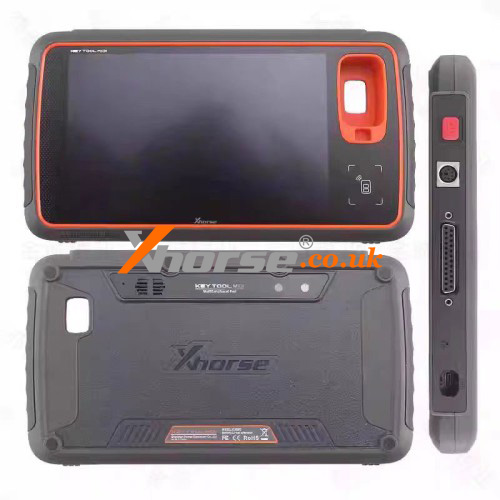

The latest XHORSE KEY TOOL MIDI tool comes in three versions: Basic, Advanced, and Enhanced. What's different between the three versions? This guide breaks down their differences to help you choose the right one. Pre-order yours today!

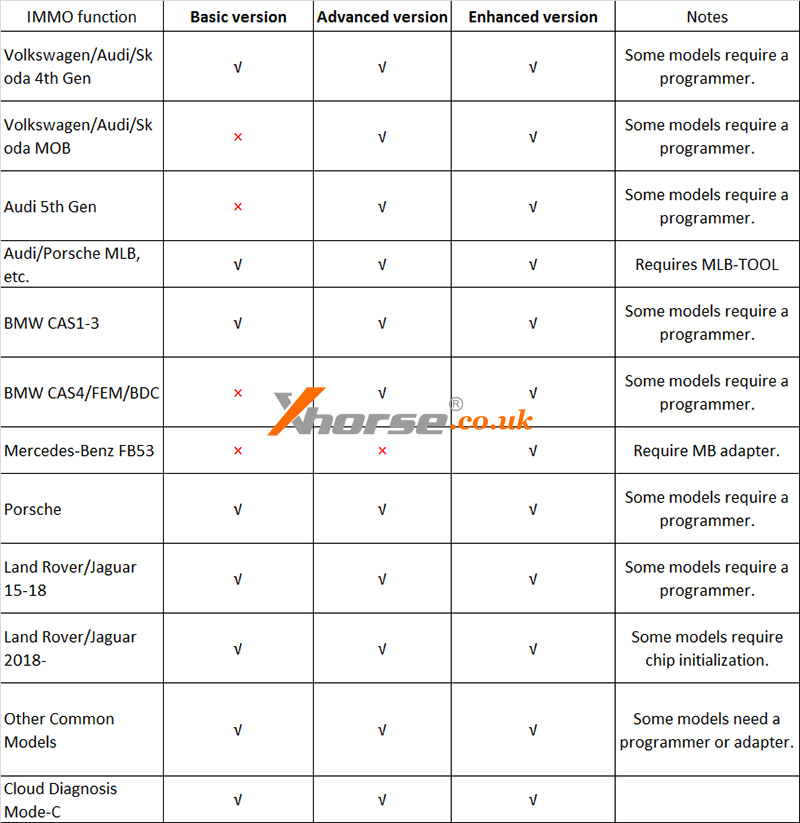

Comparison Table

Similarities
l All versions support Volkswagen/Audi/Skoda 4th Gen, BMW CAS1-3, Porsche, Land Rover/Jaguar (2015-18), and Cloud Diagnosis Mode-C.

l Some models require additional tools (e.g., programmer, adapter, or MLB-TOOL).

l All versions support XTPMS sensors programming & activation function with the TPMS Adapter.

Key Differences
The Xhorse Key Tool MIDI comes in 3 versions with increasing capabilities:

l Basic Version: This version supports common immobilizer functions (e.g., VW/Audi 4th Gen, BMW CAS1-3, Porsche) but lacks newer system coverage like VW MOB, Audi 5th Gen, and BMW CAS4/FEM/BDC.

l Advanced Version: This version adds support for VW MOB, Audi 5th Gen, and BMW CAS4/FEM/BDC, making it suitable for more modern vehicles.

l Enhanced Version: Includes everything in the Advanced version plus Mercedes-Benz FB53 support (requires an adapter), offering the widest compatibility.

Version Features
l Basic: Covers common models but lacks support for newer systems (MOB, Audi 5th Gen, BMW CAS4).

l Advanced: Adds support for MOB, Audi 5th Gen, and BMW CAS4/FEM/BDC.

l Enhanced: Includes Mercedes-Benz FB53 support (requires adapter).

Summary
The Key Tool MIDIBasic version handles standard immobilizer functions, while the Advanced adds support for newer Audi, BMW, and VW systems. The enhanced version is the most comprehensive, including Mercedes-Benz FB53 compatibility (with adapter).

Choose based on your needs - Basic for essentials, Advanced for broader coverage, and Enhanced for full Mercedes support.
