Problem: Xhorse VVDI PROG Software failed to upgrade. I've followed these steps, but it still showed: "Error connecting to server (3)".

Upgrade Steps
Step 1: Connect the device to the USB port.
Step 2: Select Software Update to update.
Step 3: Wait until the update is complete.

What's the problem?

Solution
To update latest version, please download the link below.

VVDI PROG V5.3.8 Download:
http://dl.xhorse.com/product/vvdiprog/VVDIProg5.3.8PASSWORD123456.zip

NOTE:
*Please note to download the latest update software link directly. The Upgrade function in VVDI PROG software is currently unavailable and will NOT work.

You can also ask our online customer service for the latest version download link.


Email: Sales01@Xhorse.co.uk
WhatsApp: +8617308368390
www.xhorse.co.uk

Oznake: xhorse vvdi prog

In this tutorial, you will learn how to duplicate a key using the Xhorse Condor XC-TWINS machine.

1. Clamping the Key

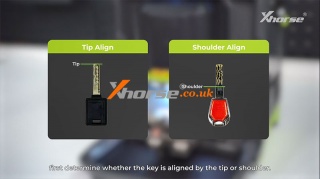

Before starting, determine whether the tip or the shoulder aligns with the key.

For Tip-Aligned Keys:
Align the key freely with any reference line on the clamp surface, ensuring it is parallel to the clamp surface according to its length, without affecting the learning or cutting process.

For Shoulder-Aligned Keys:

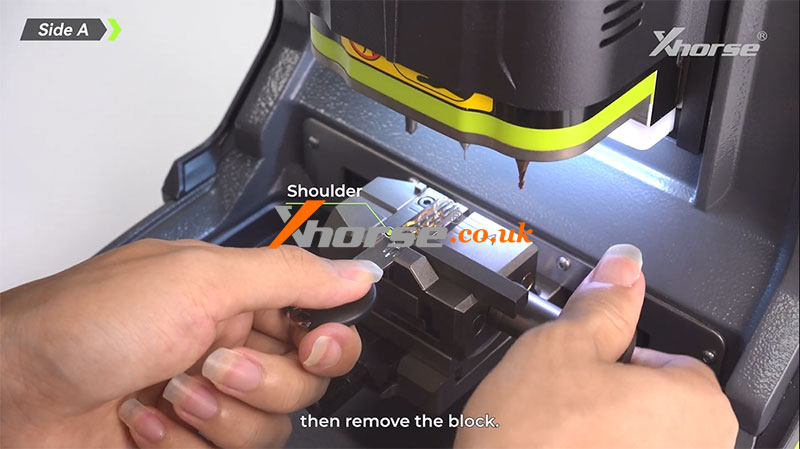

Using M5L Clamp Side A:
Insert the shoulder positioning block into the slot, press the key shoulder firmly against it, and secure the key. Then remove the block.

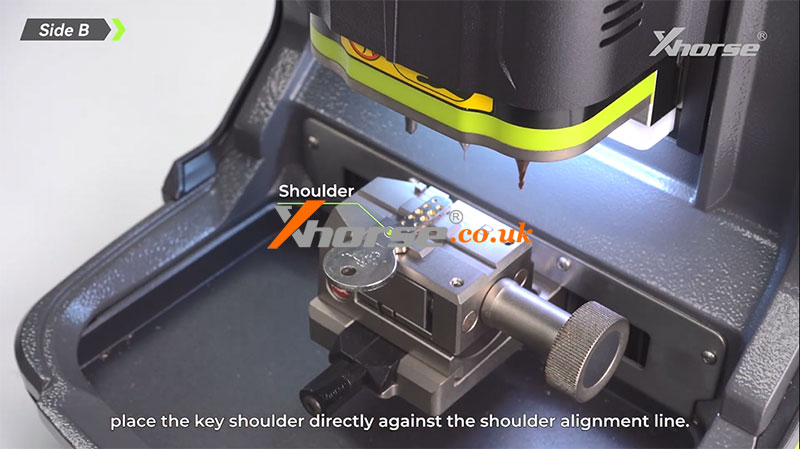

Using M5L Clamp Side B:
Place the key shoulder directly against the shoulder alignment line.

For Learning and Cutting the Key Side:

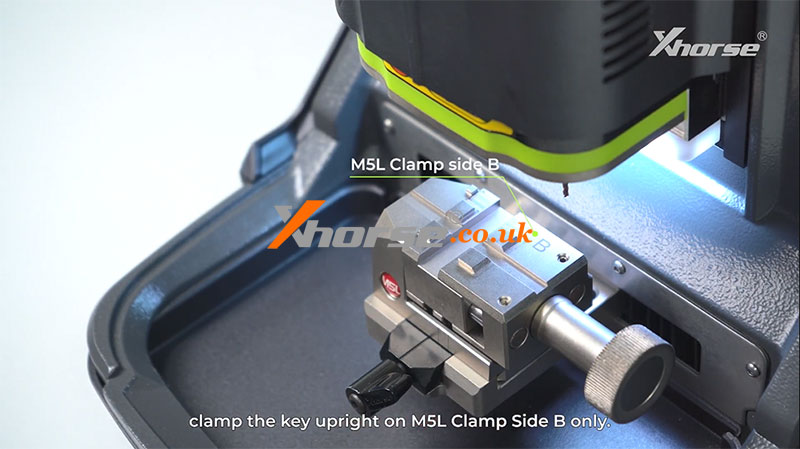

Clamp the key upright only on M5L Clamp Side B.

In this guide, we are using a tip-aligned key.

2. Optical Recognition

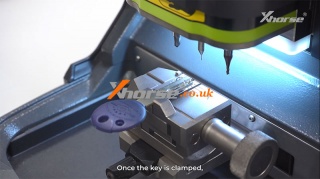

Once the key is properly clamped:

` Lower the protective cover.

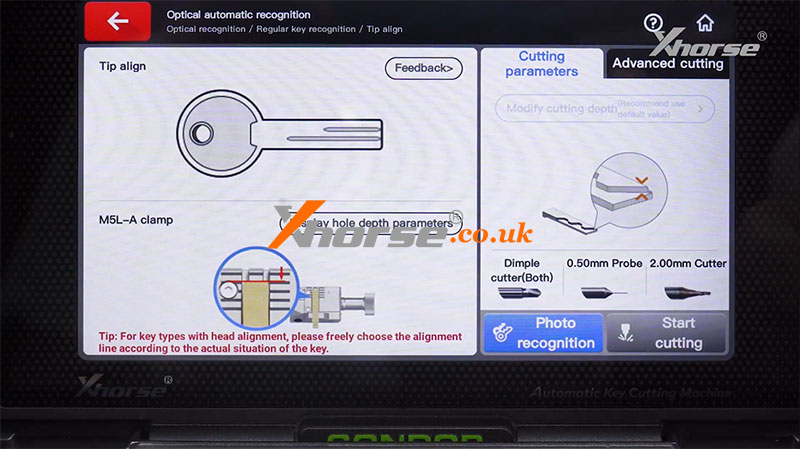

a Start the optical recognition process: [Optical recognition] >> [Regular key recognition] >> [Tip align] >> [M5L-A clamp].
b For most keys, select "Regular Key Recognition." Other options are reserved for special key types.
c Take photos to allow the machine to recognize the key.
d Once the key type is automatically identified and confirmed, click "Continue" to begin learning.
e Wait for the learning process to complete.

The system will then be ready to cut.






For a detailed demonstration of the optical recognition process, refer to our previous post.
How To Use Condor XC-TWINS Intelligent AI Optical Recognition Function

3. Cutting the Key
Proceed with cutting as follows:

` Open the cover and remove the original key.
a Place the key blank and select the appropriate milling cutter.

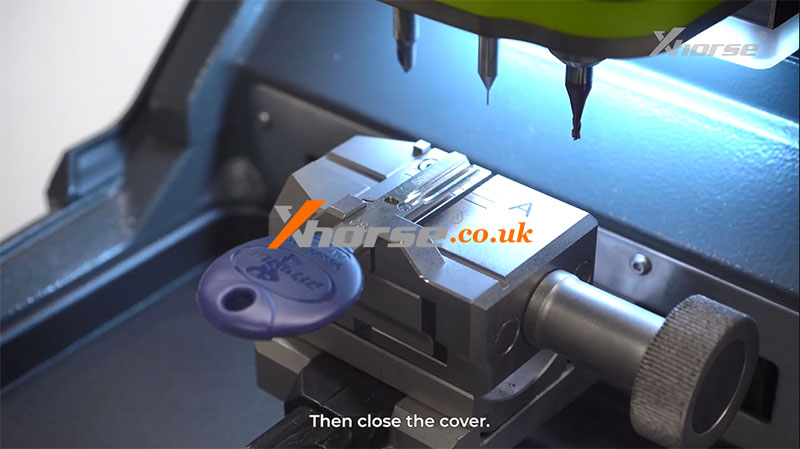

b Close the cover securely.

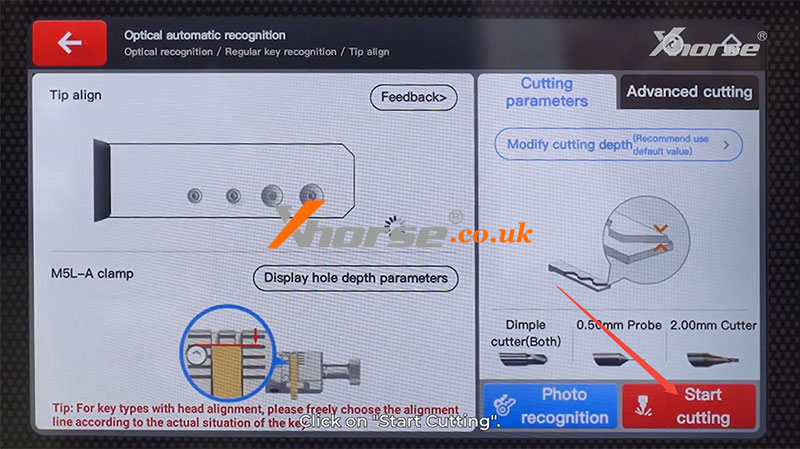

c Click "Start Cutting."

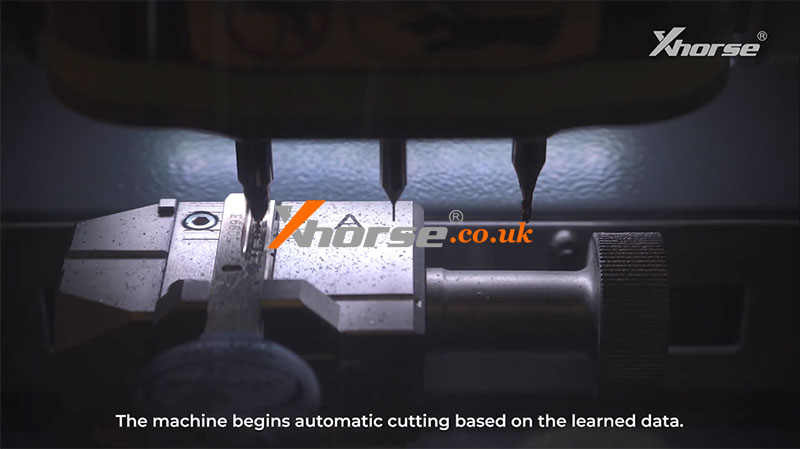

d The machine will automatically cut the key based on the learned data.
e Once one side is finished, clear away key shavings, flip the key blank, and continue cutting the other side.






4. Final Check

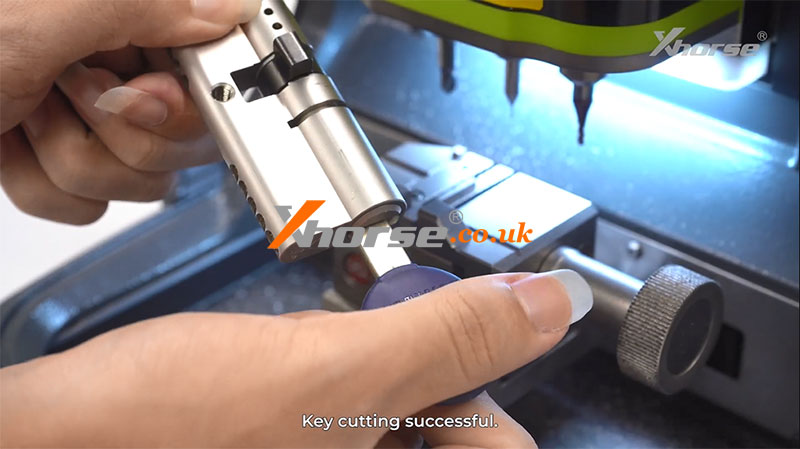

After cutting is complete, test the key in the lock.
If it turns smoothly, the key cutting process has been successful.


Summary:
With proper alignment, accurate optical recognition, and correct cutter selection, the Xhorse Condor XC-TWINS makes key duplication a fast and reliable process.

For more details, please refer to this video:
https://youtu.be/HkZXTswS-_U

www.xhorse.co.uk

Oznake: xhorse condor xc twins

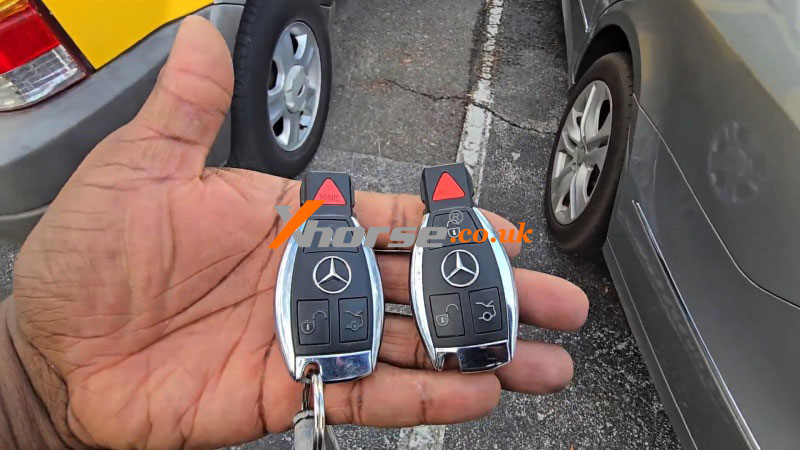

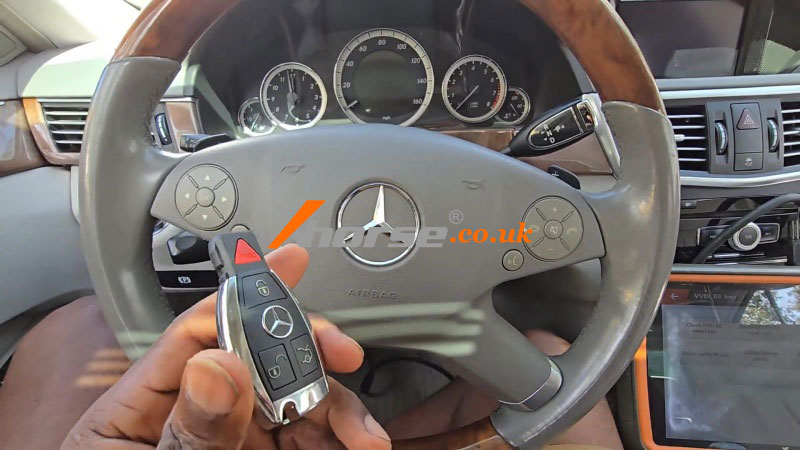

Just programmed a 2010 Mercedes E350 smart key successfully! Everyone said it couldn't be done - "Proximity keys don't work on pre-2011 E-Classes," they warned. But I took a chance with the Xhorse VVDI Key Tool Plus and their Xhorse Universal Proximity Key.

Spoiler: it worked perfectly. Here's exactly how this powerful combo proved the myths wrong and delivered full smart key functionality in under 20 minutes.

Picking the Right File
The tool gives you three choices: Version 51, 41, or 11.
Some sites said to use 51. But that killed the proximity feature last time I tried.
Another locksmith tipped me off: "Use Version 41 with the VVDI BE Key Pro."
Boom! That worked perfectly.

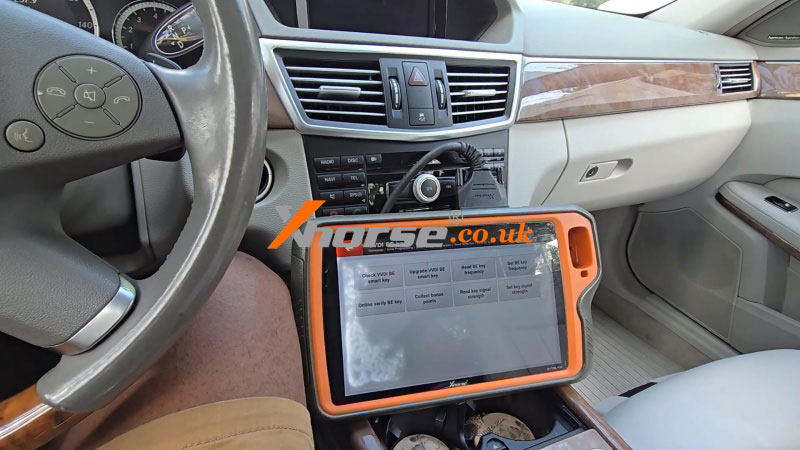

Programming Was Smooth

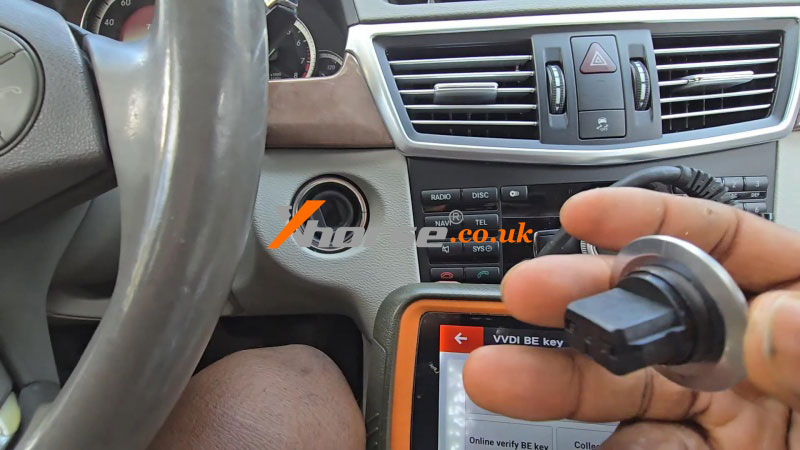

Since there was already a working key, no need to pull the EIS or dismantle anything.

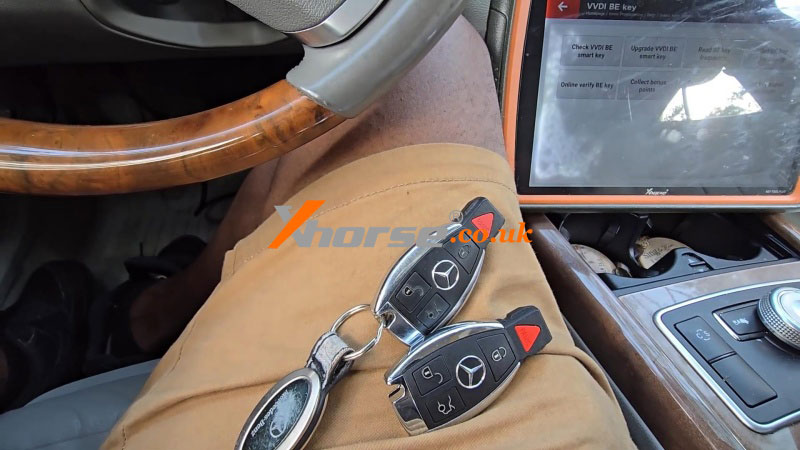

Used the key wizard in VVDI Key Tool Plus.
One-line calculation for the password.
The whole thing took 20 minutes flat.

The VVDIBE Key programmed perfectly.
No extra button sync needed.






Weird Remote Behavior
Found something interesting: If you start the car, then turn it off...The remote buttons stop working! Until you open and close the door.

Tested with both the original and Xhorse Universal Proximity Key. The same thing happens with both.

It's a feature, not a bug!




Final Conclusion
If you're hesitant about older Benzes: Don't be! Xhorse VVDI Key Tool Plus works great.
Just remember: Use File Version 41. Set frequency to 315.
The VVDI Remote Keys performed flawlessly.

Have you tried this setup? Contact us for any questions.

www.xhorse.co.uk

Oznake: vvdi key tool plus

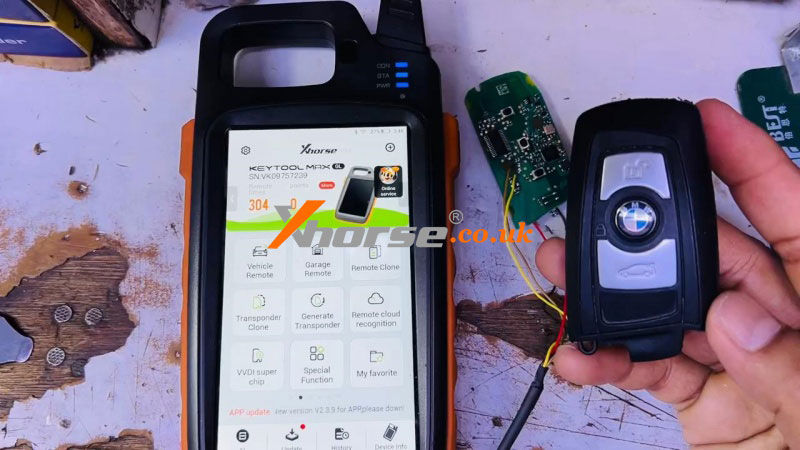

If you're looking for a quick and cost-effective way to renew locked BMW F Series 49-chip 434MHz keys, the Xhorse VVDI Key Tool Max Pro/Key Tool Max offers a reliable solution. This guide walks you through the simple steps to unlock and reuse keys efficiently.

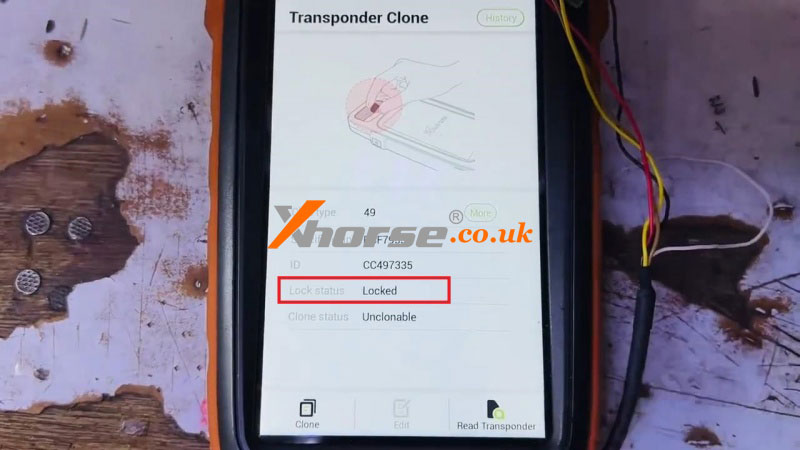

As we can see, the key has already been locked.

Step-by-Step Renewal Process:

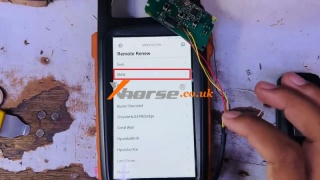

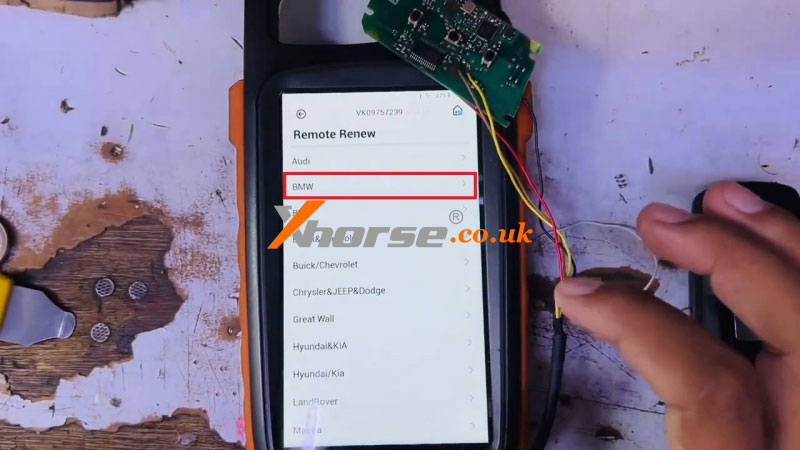

Special Function >> Remote Renew >> BMW >> HUF5767 F Series 434MHz Hu

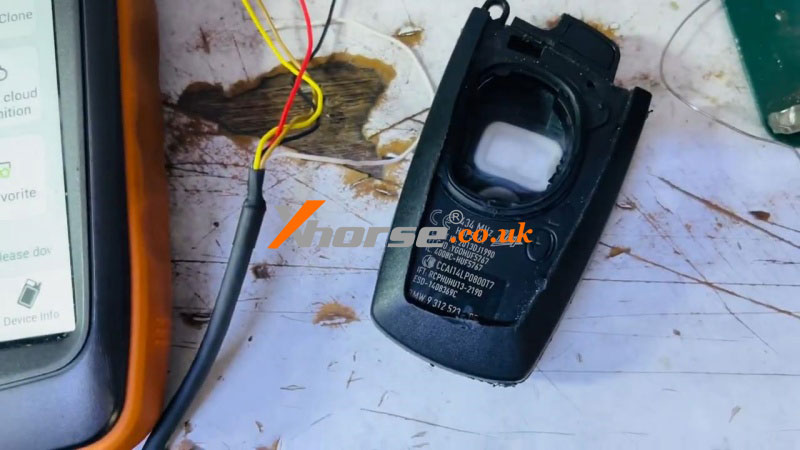

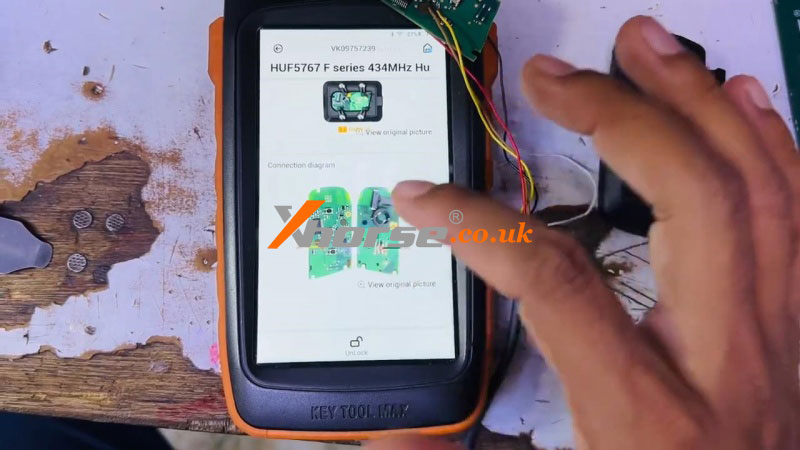

Follow the wiring diagram to solder the circuit board.




After connecting successfully, click "Unlock".
Renew in process...
Just wait until 100%.

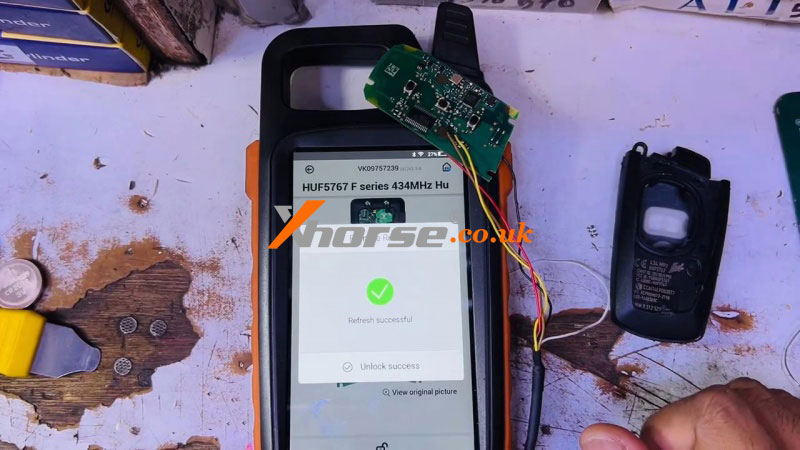

Refresh successful.

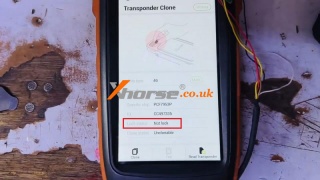

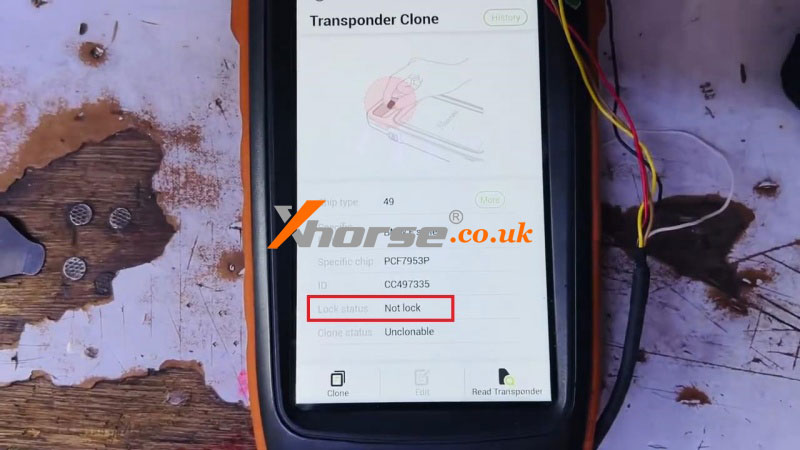

Go back to read the transponder; the key has been unlocked now.




Using the VVDI Key Tool Max helps save both time and money while supporting a wide range of BMW models. Whether you're a locksmith or an automotive professional, this tool simplifies key renewal with minimal effort.

Try it yourself and experience a smarter way to handle locked keys!

www.xhorse.co.uk

Oznake: xhorse vvdi key tool max

The Xhorse Condor XC-TWINS is equipped with a host of advantages and powerful features. In this article, we will explore one of its standout capabilities: the Intelligent AI Optical Recognition function.

Introduction to the Principle
What is the Optical Recognition Function of the XC-TWINS?

The fundamental principle involves the device's built-in camera capturing images of a key under different lighting angles. Subsequently, the integrated Artificial Intelligence (AI) automatically identifies the key type and marks the valid biting positions for decoding.

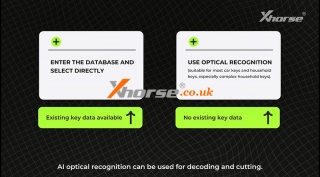

When to Use This Function
It is recommended to use the AI Optical Recognition function in the following scenarios:

If the key database already contains data for the specific key, selecting the corresponding data directly is the most efficient method for decoding and cutting.
If the key database lacks data for the key in hand, AI Optical Recognition becomes the essential tool for decoding and cutting.
This function is suitable for most car keys and household keys, proving particularly effective for complex household key profiles.

Step-by-Step Operational Guide
Here is a complete walkthrough of using the AI Optical Recognition function:

1. Initiate Optical Recognition

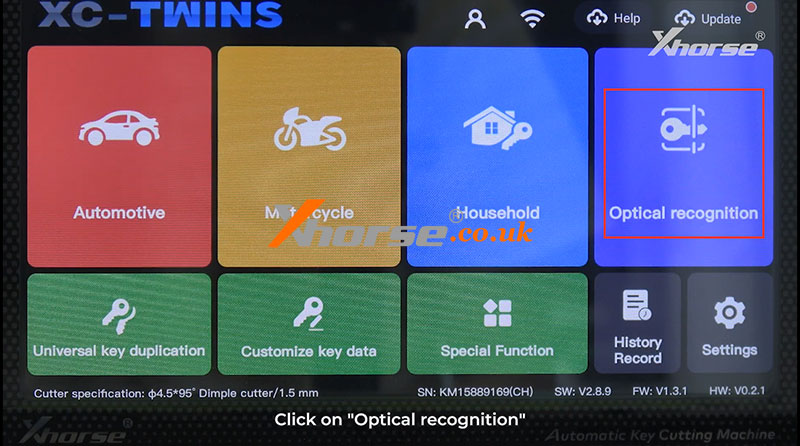

From the main interface, click on the "Optical recognition" option.


2. Select Key Type

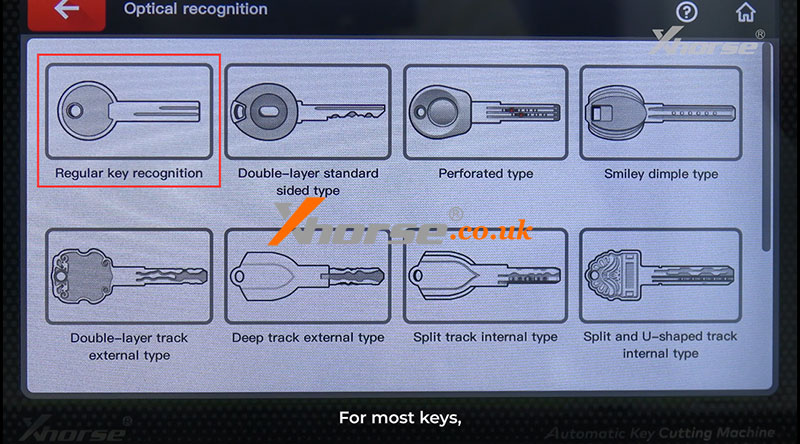

Choose the appropriate key category. For the majority of standard keys, you can select the "Regular key recognition" option.

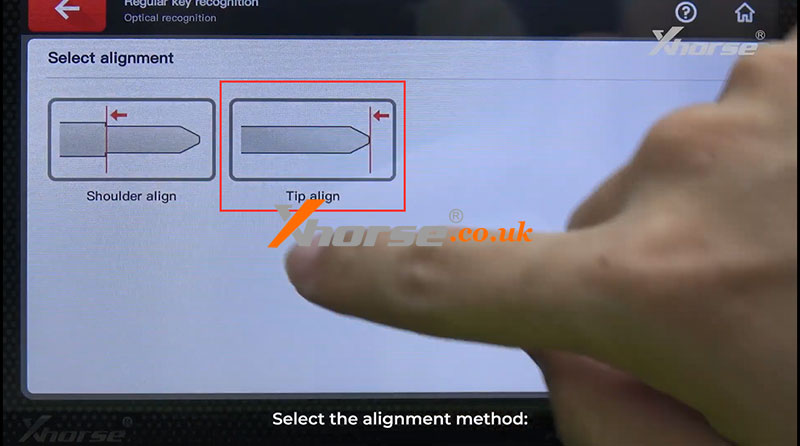

3. Select Alignment Method & Clamp
Choose the Tip align alignment method.

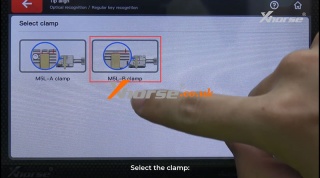

Select the appropriate clamp, such as the M5L-B Clamp.

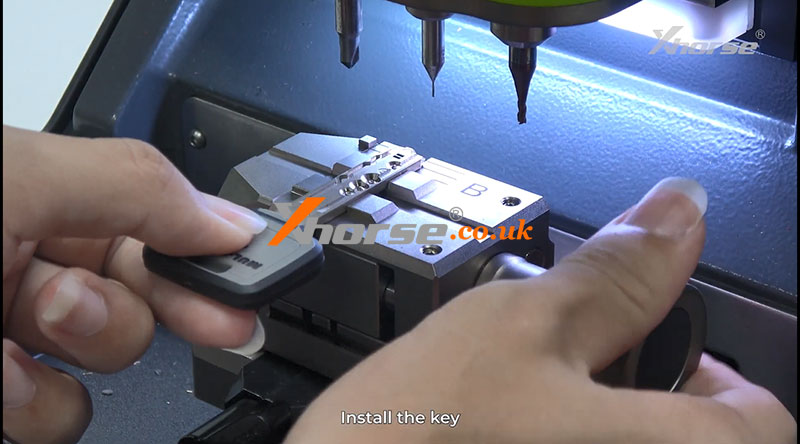

4. Install the Key
Securely mount the key into the selected clamp.

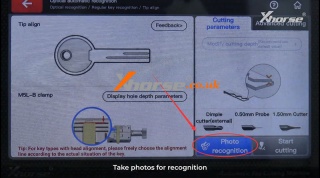

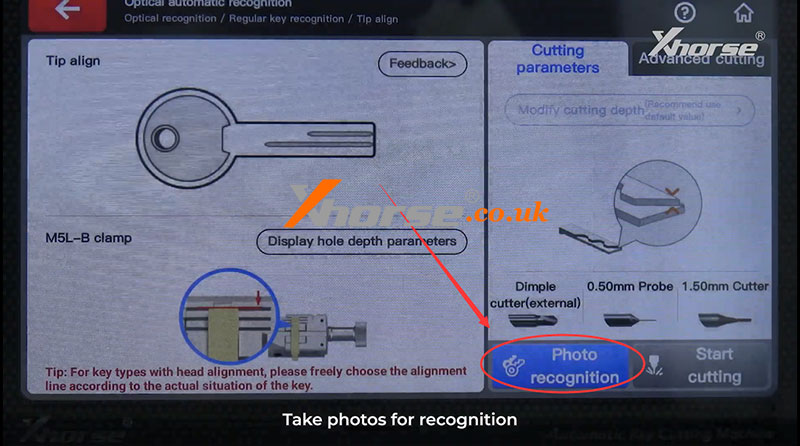

5. Capture Images for Recognition

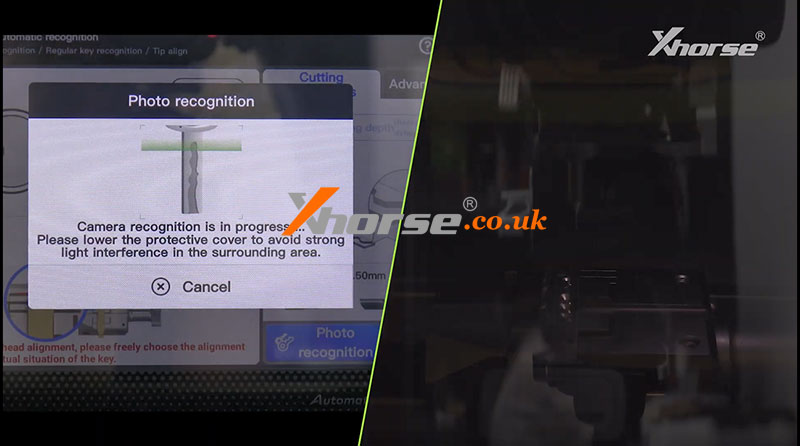

Ensure the protective cover is fully closed before starting. This is crucial to prevent interference from strong ambient light.
The device will automatically take the necessary photos for recognition.

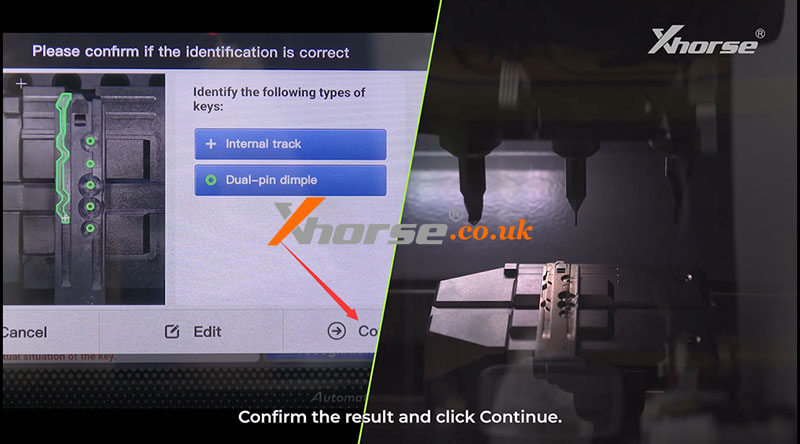

6. Confirm Key Identification
The AI will process the images and display the identified key type.
Review the result and click "Continue" to proceed.


7. Decode the Key
The device will now begin the automated decoding process based on the AI's analysis.

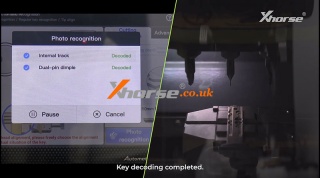

Once completed, a confirmation message will indicate that key decoding is finished.

8. Proceed to Cutting
Finally, install the corresponding cutter and proceed with the cutting operation as usual.


By following these steps, you can effectively utilize the Intelligent AI Optical Recognition to decode and cut keys, especially those not present in your pre-existing database.

Video guides:
https://youtu.be/pb3aruRUJ5o
