Problem: The Xhorse MVCI PRO J2534 Cable is connected to the car. But when starting the Audi diagnostics, it will immediately shut down and start flashing red and green even though all the firmware has been updated. The option to test the cable in software doesn't even work.

It prompted:" Command timeout! Close other J2534 software, plug the device, upgrade firmware, and retry!"

What's the problem? Please help.

Solution
It's suggested to install ONE original software in the same system. Only the driver of the software used is installed.
1. Close or uninstall other software;
2. Plug the J2534 Diagnostic Cable to upgrade firmware, then try again.

www.xhorse.co.uk

Oznake: xhorse mvci pro j2534

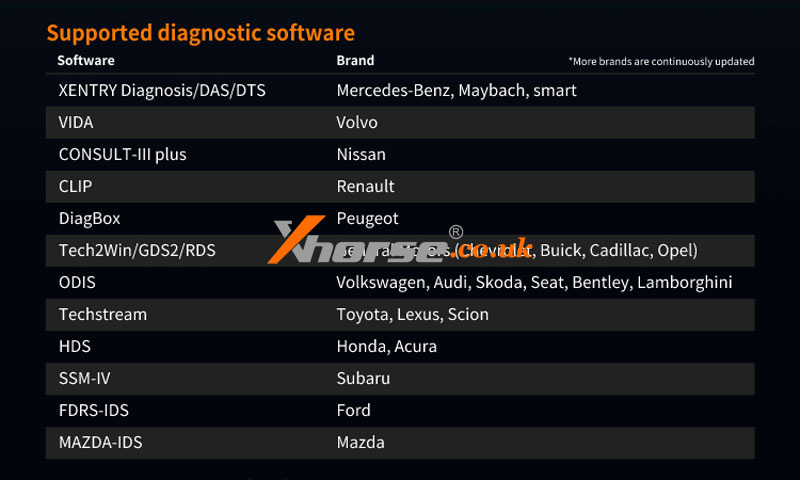

Xhorse.co.uk provides Xhorse MVCI PRO J2534 Driver free download & installation user guide. Compatible with VAG ODIS, TIS(Toyota Techstream), Honda HDS, Subaru SSM4, FDRS IDS, and Mazda IDS diagnostic software.

Where to free download Xhorse MVCI Pro j2534 driver?

https://mega.nz/file/MuoiBJZa#MjmQNzgll4pJEERnq1v__sHx6n3C9nr-cMwJqChNPAs

Software Size: 52.2MB

Language: English, Chinese

Operating System: Windows7, Windows10

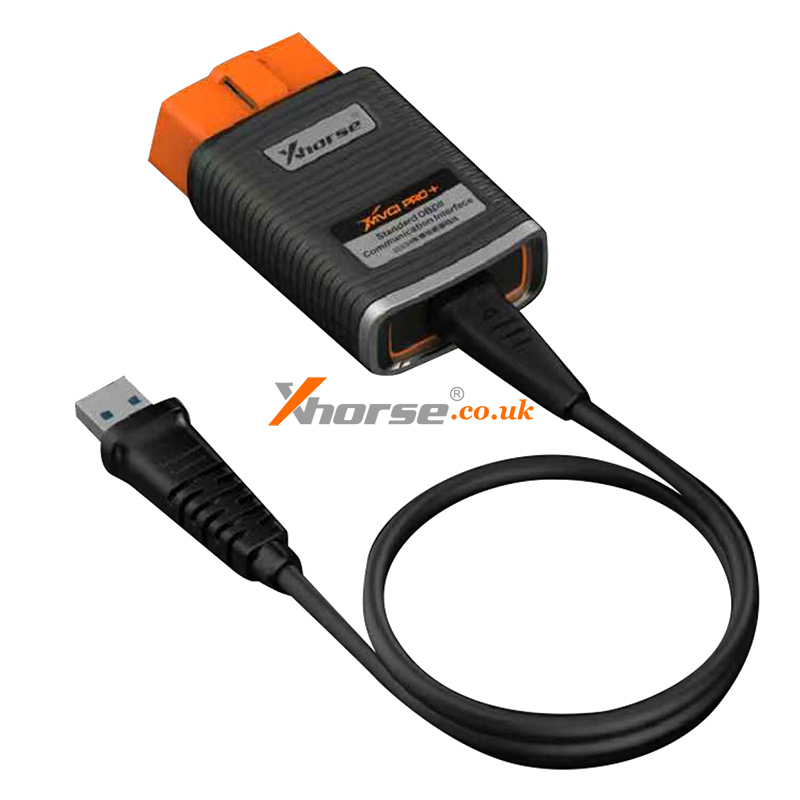

How to install & start Xhorse MVCI PRO J2534?

*Note: Ensure your computer has the original diagnostic software supporting J2534. Please download it from the original manufacturer's website or a third party.

1. Install the J2534 driver

Select language >> Next >> Next >> Install >> Finish






2. Connect MVCI PRO J2534 to car OBD & computer.

3. Start MVCI PRO J2534.

` Click "Connect": after a successful connection, here can check the device info including firmware version, serial number, etc.
a Read authorization - read the current device authorization status and available times (when the available times are 0, most functions will be limited).
b Update authorization - update the latest authorization status and reset the available times of the device.



c Vehicle diagnosis - install the driver of the corresponding brand, which currently supports VW, Honda, TOYOTA, FORD, MAZDA, and SUBARU. After installation, users can perform the original diagnostic software.

d Upgrade - check the current version info, and update software and firmware.

e Setting - switch language, open and save operation logs.

What's new in Xhorse MVCI PRO J2534 Cable?

MVCI Pro J2534 vs. MVCI

` MVCI Pro is new.
a MVCI Pro supports D-PDU protocols while MVCI cannot.
b MVCI Pro is compatible with Subaru SSM4, Ford IDS, Mazda IDS, and VAG ODIS diagnostic software while MVCI cannot.
c MVCI Pro supports updating while MVCI cannot.
