Obdstar X300 DP Plus vs. Obdstar X300 DP

Obdstar X300 DP Plus (X300 DP PAD 2) is coming soon. So, what’s new and different, compared with X300DP?

Here you go.

What's Obdstar X300 DP Plus?



Note: it will be testing and released soon in http://www.chinacardiags.com/

What’s Obdstar X300 DP?



Source: http://www.chinacardiags.com//obdstar-x300-dp-x-300dp-pad-tablet-key-programmer-full-configuration-33733.html

Obdstar X300 DP Plus vs. X300 DP:

Hardware:
- X300DP Plus main unit and vci adapter 2 in 1:

Obdstar makes X300 DP Plus and the VCI adapter in one machine. No need worry you forget to take the VCI if you’re out. And the built-in VCI box offers more stable communication.

- larger screen:

X300 DP Plus comes with 8-inch touch screen, which offers better visual experience than X300DP (7 inch).

- no buttons on the main unit:

X300 DP has four buttons on the left, while X300 DP Plus is a real pad without buttons.

- with a back bracket/support on the back:

You cant put the unit on the steel wheel or on the table when you are testing with a car.

- reduce production cost:

Obdstar adopts high-tech but spends a lot on it’s firmware design. But the pad works as a real diagnostic tool in fact, so it’s unnecessary to do so. X300 DP Plus cut the cost in firmware design but make sure of the performance as good as X300DP.

- new adapters:

3 adapters are integrated into the X300 PAD Plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.

Functions:
- Toyota smart key card!!!!!!!!!
- read 8-pin chip data!!!!!!!!!!!!

- ECU Programming/Cloning

ECU cloning means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.

When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won’t need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.

ECU clone Pros :

No need to go to 4S shop, convenient, fast and save money.

Simplify the operating steps, even the amateur can also operate.

No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

- Switch activation function

Nowadays, many car models’ accessory power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.

However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won’t boot. X300 DP Plus ” switch activation function” can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

- New “Help” function including the testable car models, update notice, special features, help instruction, wiring diagram etc.

Testable car models: The user can read the testable car models and year.

Update notice: The user can read all of the update content.

Features: The user can read all of the special features and the functions that only X300 DP Plus supports.

Help instruction: Built-in the guide and instruction for each car model or function.

Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

Obdstar X300 DP Plus Testing:



Obdstar X300 DP Plus will be tested on more cars and released in in the near future.



This is from obdstar x300 dp blogger:Obdstar X300 DP Plus vs. Obdstar X300 DP

Digiprog 3 changes mileages of Nissan Pathfinder HCS12

This is how to use Digiprog 3 odometer correction tool for Nissan Pathfinder HCS12 km change.

Nissan PATHFINDER:



Requires plug 48:

ST 48

yellow 18 yellow = brown

green 17 green = red

white 7 white = black

brown 13 brown = orange



PATHFINDER HCS12:

Remove and disassemble the speedometer.



Find the solder points as shown in the picture on the

Next page described.

Solder the cables from ST48



Now choose the program: Cars / Trucks - NISSAN - PATHFINDER HCS12.



The DIGIPROG 3 indicates the old / wrong KM level.

Programming the new / correct KM booth.

Remove all solder joints again.

Finished.

Note that make sure how much is on you display because on some japan cars u see on miles or kilometers and some time you device reading by miles but you have to convert to kilometers and programming by km 4 example

the display shown in mile but you have to schedule in kilometers. first converted miles to the amount of kilometers you want to view on the display after program kilometers example

120123 miles to km =193319 so yo if you want 120123 on you display yo have to program 193319 km and you see 120123 on you dashboard this is some time. but some time no.



This is from blog.chinacardiags.com: Digiprog 3 changes mileages of Nissan Pathfinder HCS12

How to use VVDI2 Read BMW ISN with BMW ISN DME Cable

VVDI2 and VVDI Prog both support to read BMW ISN.For VVDI Prog,if support,it will display in the software.And here we will display VVDI2 read BMW ISN,read out BMW ISN on bench with BMW ISN DME cable.





1.Connect VVDI2 with computer,and vvdi2 with BMW DME cable,as well as the BMW ECU.



2.Start VVDI2 BMW Software.



3.Choose Key Learn>>ECU/CAS ISN.



4.Click read. Then processing.







5.Get BMW ISN successfully.



6.You can also check the video.

[embed]https://www.youtube.com/embed/bIJm44B8pHU[/embed]



KeyDIY KD-X2 Reviews

KD-X2 KeyDIY remote generator review:



Keydiy KD-X2 ID48 96 bit copy: free

48 chip clone is not yet activated. KeyDIY factory is moving their online server. They will do an update in May, after the update, all KD X-2 can activate 96 bit 48 chip clone functions freely by the update 96 bit 48 clone functions cost tokens. You can gain tokens by generating remotes using KD X-2 . Generate 5 remotes, gain one tokens. They have not made the decision yet on tokens or how much tokens will be for 96 bit id48.

KeyDIY for LKP-03: (kin lee tested)

New sheriff on the block & it's time to tell you that you’d better have a KeyDIY instead of VVDI2 Xhorse, if you want a key tool only  for transponder 48 (96 bit) copy.

Xhorse changes $250 to clone 48(96 bit), while well KeyDIY is giving all that for free!! And I got a mint VVDI Key Tool for sale for $180 or I'll give it to my partner. KeyDIY has a larger & better remote making database too!

Keydiy KD-X2 firmware updatable:



KeyDIY works good with 2016 Kia Forte:

2016 Kia Forte with KD Mini and MyTab instant success and no need to stock a bunch of dead inventory.


Keydiy is greater than vvdi key tool:
I recently purchased this. I feel it is the greater universal remote maker between vvdi key tool and keydiy. I have made more remotes with this then the key tool was ever able to do.



LKP-03 copy: key tool fail but KD-X2 made it
06 Accord tried to clone it on VVDI Key Tool with LKP-03 failed so used KD-X2 & Boom!! It work ed!!

NB22 key working:

Got this new toy today.

NB22 key working on Peugeot 207 reg 06



Ps. More KeyDIY reviews will be updated here..

(04.2018) Renault CAN CLiP 176 Download: 100% Tested No Issues!

Hello mates, Renault CLIP software version 176 has already been tested successfully!

FREE version - CANCLiP 176 download:

http://blog.obd2diy.fr/2018/03/28/03-2018-renault-can-clip-v176-download-free-no-password/

TESTED version - CLIP Renault 176 download:

http://www.obd2diy.fr//can-clip-pour-renault-v151-logiciel-cd.html



IMPORTANT: Renault CLIP 176 software CANNOT work with all Renault diagnostic tools from China. Please check your hardware before you wanna update CLIP software; otherwise, you would FAIL to install CLIP V176.

Windows 7 32 bit for those with CAN CLIP interface SP19-D:

SP19-D: http://www.obd2diy.fr//renault-can-clip-diagnostic-interface.html

Windows 7 64 bit for those with CANCLIP interface SP19-A, SP19-C

SP19-A: http://www.obd2diy.fr//can-clip-for-renault-avec-puce-complete-multi-languages-auto-diagnostic-interface.html

SP19-C: http://www.obd2diy.fr//renault-can-clip-diagnostic-tool.html

Btw, SP19-A: maximum quality

SP19-D: cheapest version

SP19-C: populous version

CLIP INFO 176

NEW FEATURES:

No new vehicles for this version.

GENERAL INFORMATION:

Starting with version CLIP 173, Windows XP is no longer compatible with CLIP.

Warning :

Maintenance of the Tecra A11 and CF19 MK2 ceased in January 2017 and they can no longer be registered.

Since January 2016 the DELL E5500 units have no longer been serviced and cannot therefore be registered any longer.

Since August 2015 the PANASONIC CF19 MK1 units have no longer been serviced and cannot therefore be registered any longer.

Maintenance of the PANASONIC CF18s ceased in May 2014 and they can no longer be registered.

Starting with DVD CLIP 161, reprogramming with a battery tension lower than 13V is no longer possible.

You absolutely have to connect a battery charger to the vehicle.

Three charger are currently available:

- Ateq BC512 (with or without printer), link: https://www.renault-equipment.com/bc512-15a-automatic-charger.html

- Acctiva Fronius Professional Flash 50A, link: https://www.renault-equipment.com/fronius-automatic-battery-charger-approved-for-new-vehicles-preparation.html

- GYS Flash 50-12HF (rather favourable), link: https://www.renault-equipment.com/gysflash-50-12-hf.html

Please make sure you have this battery charger before starting any work.

Order via your retailer or via the catalogue for Garage equipement: www.infotech.renault.com or www.renault-equipment.com

Oznake: plaža

SEC-E9 CNC Key Machine and NSN11 2 in 1 Tool add Nissan Key

Operation points for attention:

1. Use a LISHI NSN11 2-in-1 tool to open the Nissan hack car door lock;



2. Write down the key tooth number read by the 2-in-1 tool;



3, enter the "data search" - "key blank search" - "manual input" in sec-e9 kutting machine, from the left third place to enter thecombo tool to read the key tooth number ;





4, the flat key blank milling jig fixed to the upper layer , selected from the group select "velocity", "three-terminal targeting " mode,Cleaning clip before cutting with hygiene, the cutting is completed, remove the key, the cleaning jig health ;









5, cutting is completed, remove the key, and use the original lock to detect whether the cut is successful, unlock the lock.



This is from SEC-E9 Cutting machine blog: SEC-E9 CNC Key Machine and NSN11 2 in 1 Tool add Nissan Key

Oznake: plaža

OBDSTAR X300 DP Standard to full,Why is worthy?

Service to Get OBDSTAR X300 DP/PRO3 Key Master Full Package Configuration:

1.Get EPB+Oil Service/Reset+Battery Matching Functions.

2. Make OBDSTAR Key Mater More Powerful

Feedback:

"I bought full license and rfdi. I see the full license can make mutch more immo program".

https://www.facebook.com/groups/obdstar.x300.dp/

Oznake: plaža

SEC-E9 Key cutting machine Inspection & cutting key

First, the first step to receive the product, check the packaging. After opening the package, please confirm whether the machine and accessories are complete , SEC-E9 standard package of CNC key machine (below).



2. After confirming that the packing items are complete, please read the supporting manual carefully and follow the instructions strictly.

Third, online power : the power switch is connected to the power strip, open the power strip, the screen automatically lights up;

Please note: This is a Chinese version sec-e9 picture, the function is the same with the overseas version



appears cool open logo, rotate the emergency stop button, open the next crew;



screen main interface into the main program, on behalf of the screen and the lower position Get in touch.



Fourth, Bluetooth auto pairing takes tens of seconds. Please wait patiently. Do not touch any buttons on the screen . If the Bluetooth is disconnected, please click the Bluetooth icon in the lower right corner to find the corresponding model serial number. Enter the password and click Next to display the connection. The Bluetooth setting is completed.



Poke the following video to play the boot, shutdown, restart operation demonstration.

V. Probe, milling cutter installation and machine calibration :

Machine calibration operation points for attention:

01. Take out 2 probes and tighten them with T-wrench to the right.

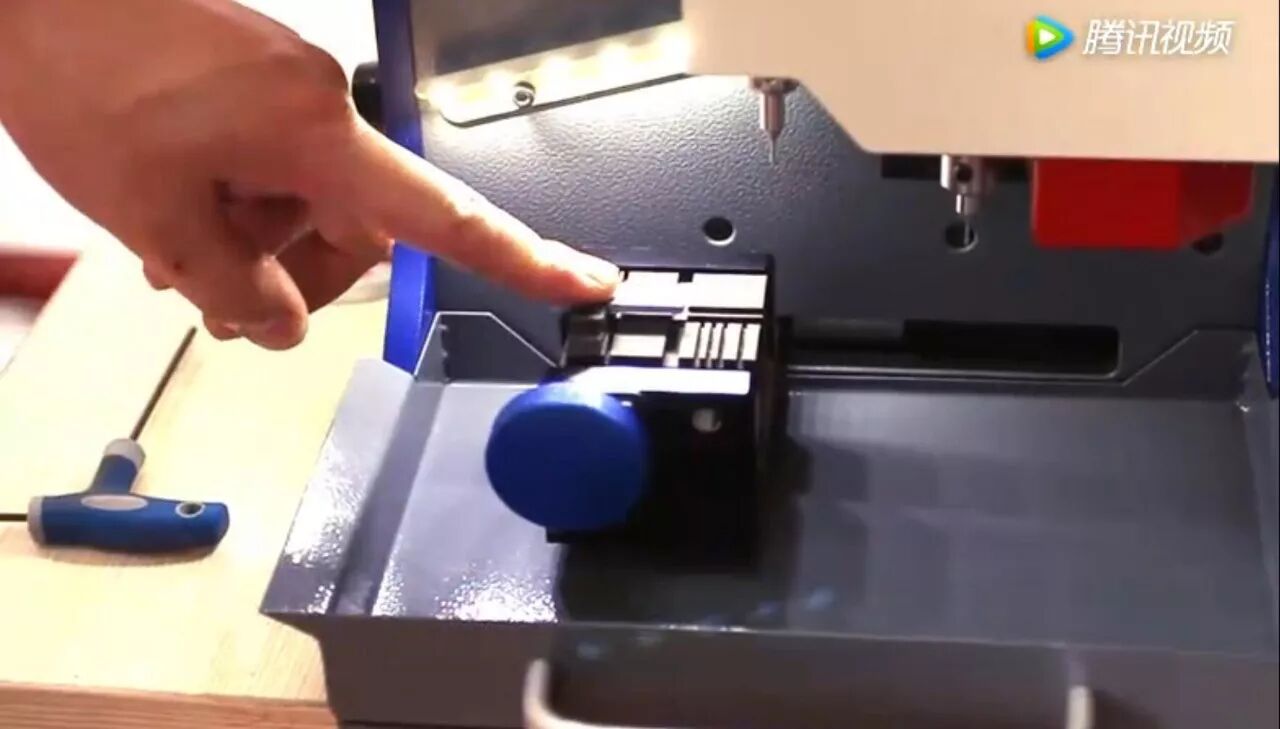

02, the calibration block is fixed in the fixed position of the fixture;

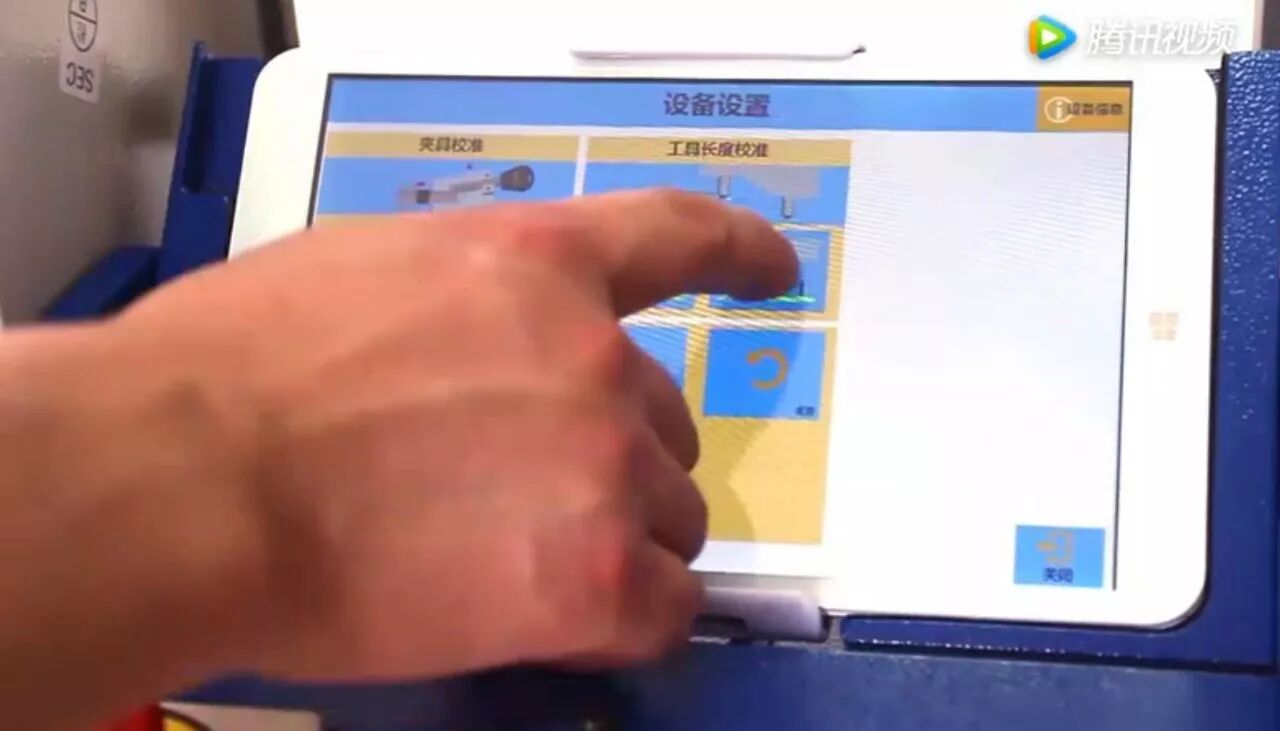

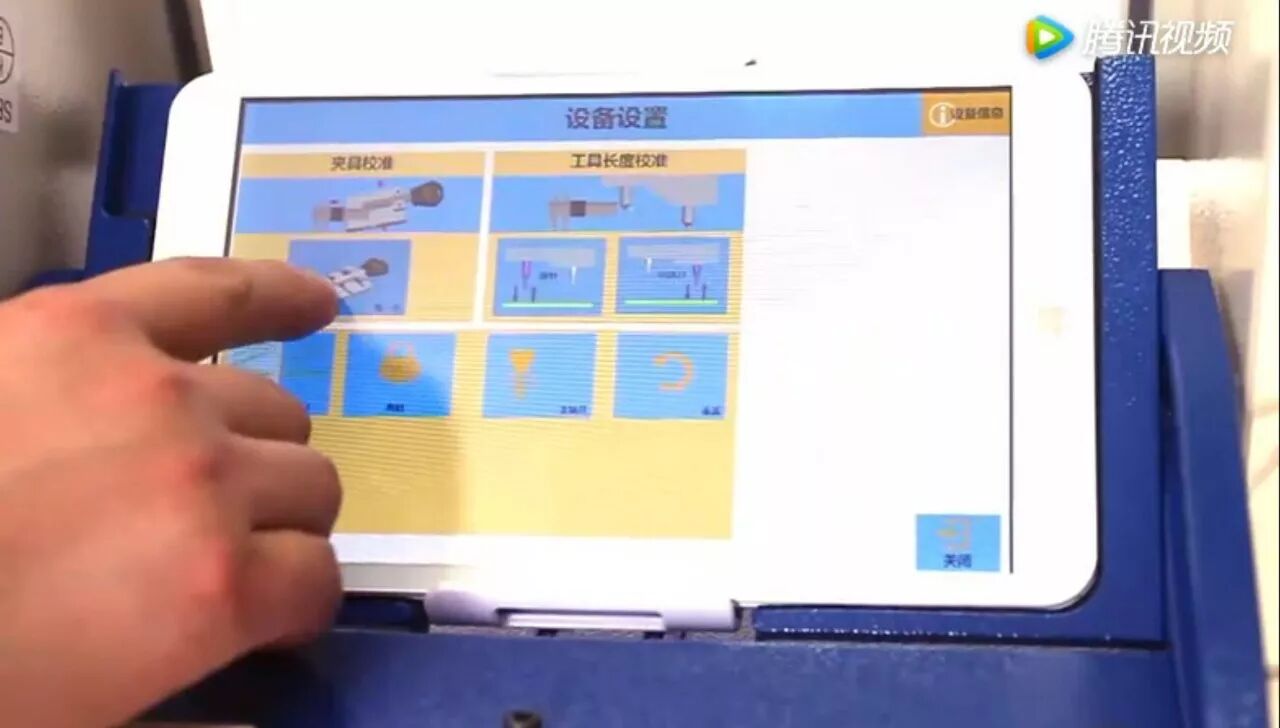

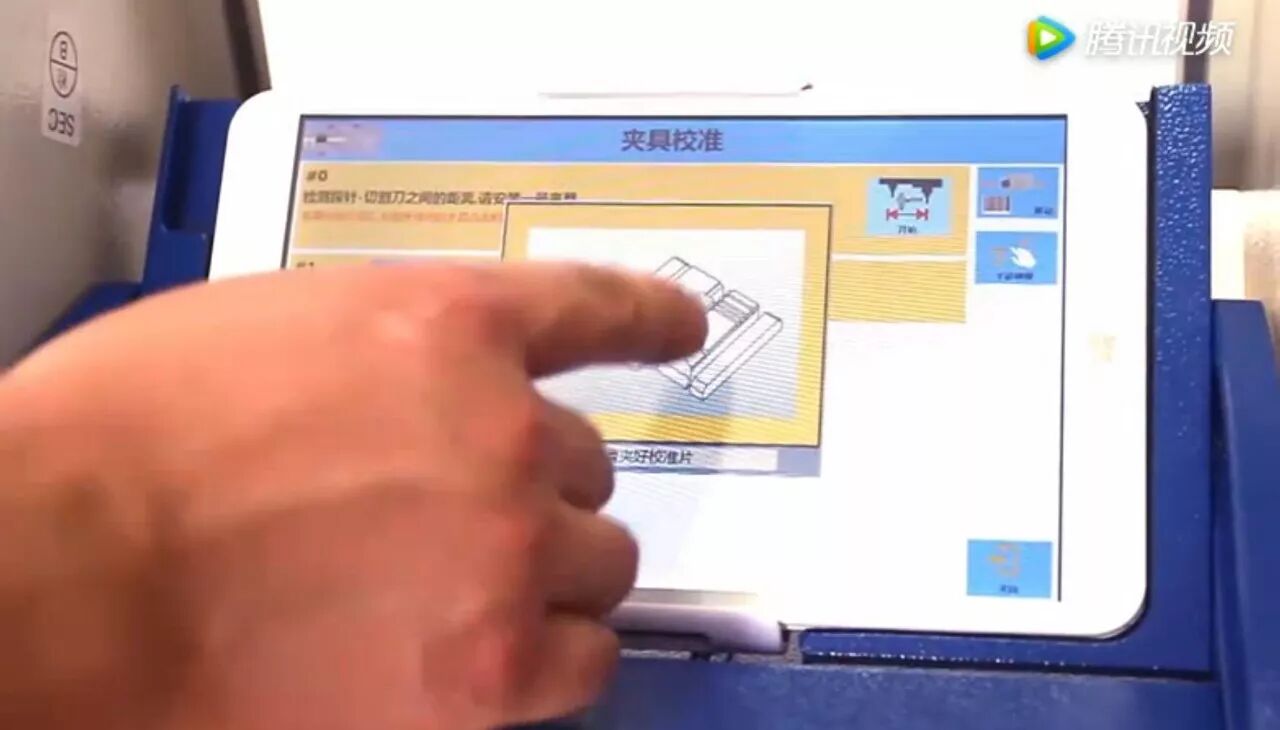

03, from the main interface into the "Settings" menu, click "fixture fixture" - "Start", confirm that the calibration block is installed, click the prompt box to calibrate the fixture; 04, fixture calibration is completed , click the "probe" icon to explore Needle calibration;

05, remove the right probe, install the spindle cutter, enter the "settings" interface calibration cutter.

Note:

A. After receiving the new machine or using it for a period of time, please recalibrate the machine so as to ensure the accuracy of the machine;

B. If you reset the distance between the probe and the milling cutter, all fixtures need to be recalibrated;

C. Make sure to record the changed settings for future use;

D. The value of each machine may be different. After replacing the motherboard or upgrading the firmware, please re-execute the calibration process.

E. The data in this interface can be fine-tuned left and right, before and after, which will change the origin of the fixture, but generally do not need to change;

F. The above data is for reference only and is not used as a standard value.

Six, with spoon. Take the example of TOY43 Toyota Camry key with SEC-E9 CNC key machine + 2 in 1 Lee tool as example:

During the operation, please strictly follow the video requirements .

Operation points for attention:

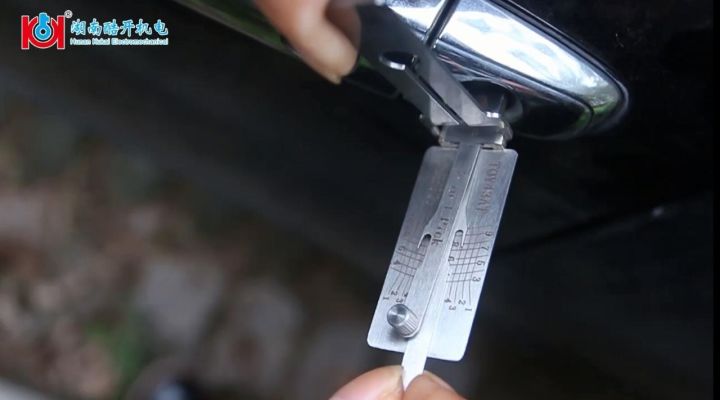

01. Open Toyota Camry car door lock with 2-in-1 tool;

02. Toyota TOY43 door lock 8 pieces, ignition lock 10 pieces;

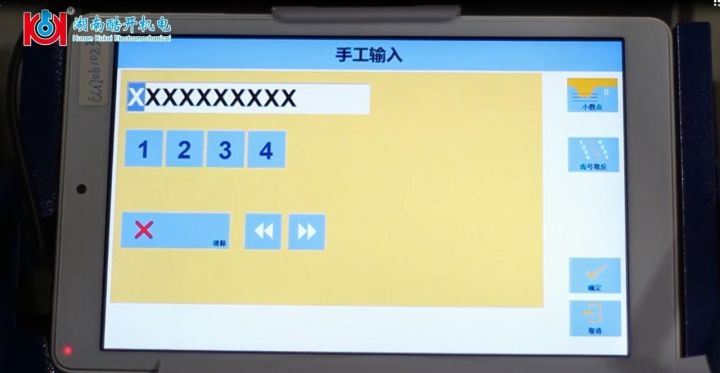

03, enter the "data search" - "key blank search" - "manual input", from the left third place to enter the combo tool to read the key tooth number ;



04, the flat milling key blanks fixed in the upper fixture, select the "middle speed", "three-terminal positioning" mode, clean the fixture before cutting hygiene, cutting is completed, remove the key, clean the fixture.



This is from china car diag:SEC-E9 Key cutting machine Inspection & cutting key
