Mercedes Smart Key Teach-in support k-line Smart (1998-2002)

Disclaimer:
Smart Key Teach-in only supports Mercedes-Benz Smart (1998~2002) with K-line protocol.



Smart Key Teach-in support ECU type as follows:
Smart-Key-Teach-in-ECU-type-1 Smart-Key-Teach-in-ECU-type-2

MB - Smart vehicles dongle key programmer

SMART Teach-in is required when keys are lost, damaged or if additional key is needed.
Also, this procedure synchronizes engine ECU with BSI - can be used when changing damagedECU or BSI with new/used one!

For adapting each remote with Immobilizer / BSI module the following dongle can be used:
1. Turn ignition ON without starting engine (position "1").
2. Insert dongle in OBD connector (it is located under steering column, near pedals).
3. The LEDs must lit both, then green must blink few times. If all OK, green LED remains lit and red must be off. If red LED blinks fast, this means an error, you may remove dongle and try again.
4. If red LED is off and green is on, turn OFF the ignition key.
5. Press twice LOCK button on each remote (if 3 button remote used) within 30 sec. Maximum of 4 keys can be programmed.
6. Turn ignition ON again, this completes learning sequence. Remote controls are working only when ignition is OFF, cranking is possible only when vehicle is in UNLOCK-ed state.

http://www.obdexpress.co.uk/
source:http://blog.obdexpress.co.uk/2016/08/05/mercedes-smart-key-teach-in-support-k-line-smart/

06.08.2016. u 10:56 | 0 Komentara | Print | # | ^

Carprog v8.21 Unit CRC error solution

Here is a customer solution of Carprog v8.21 with the following error message:

Unit CRC error: Delete LIB file and make UPDATE -> INTERNET

A1 OBDII adapter (resistor must be rem)

carprog-unit-CRC-error

User solution:

TRY ON YOUR OWN RISK!
there are two files software (carprog_v15x.exe) and device LIB file (i.e.
070925CAR001XAB1.lib)
you should copy both files to your laptop after update compleate!!! (the same directory)

or try this:
delete LIB file (located an your software directory)
connect update server to restore it

this will solve your problem if LIB file is corrupted

i.e.
I have two PC`s
1. desktop PC that have internet connection
2. laptop PC on which I`m working

to update device + software I`m use desktop PC
after update compleate LIB file stored on desktop PC is updated to, but on Laptop still not
so if you will connect your Carprog device to laptop without copying LIB file from desktop PC this causes some conflicts



User feedback on solutions above:

I was getting "unit crc error" when working with HC12 MCU. I also work on two different computers...
I deleted the .lib file and updated and it fixed my problem.



http://www.obdexpress.co.uk/

04.08.2016. u 08:22 | 0 Komentara | Print | # | ^

INPA setup on Lambda O2 sensors and BMW M5

Here’s a real user experience of DIY coding Lambda O2 sensors on BMW E series M5, via BMW K+DCAN INPA cable



Tools used:

K+DCAN cable with running INPA 5.0.2

new-bmw-inpa-kcan-with-ft232rq-chip-expressuk-6s

Symptom in a sentence:

Lambda probe 1 and 2 dropping off, very high INPA RUN UNREST values, bad idle, misfire, sporadic symptoms



Details of M5 setup:

I'm helping a friend with his M5, he's been trying to fix it the last 2 months. From what i've been told, he's changed the 4 CPS, O2 sensors, CCV, plugs, and both vanos boards. I tested both boards today and the solenoids respond as they should. He had issues with vanos first and it appears as if it didn't help at all.

The symptoms i'm experiencing consist of the car starting just fine. It will run great for the first minute or two, then the probe voltage value will dip down to 0. It's really random with what bank it is, usually the right bank(pass side). Sometimes both will drop but when the probe voltage begins to drop, the RUN UNREST values significantly spike on all 8 cylinders. I tried plugging a brand new O2 sensor i had in which did not change anything. A bad connection in the circuit defaults the readings to 0.45 but the values being ~0 indicates something else is going on. Once the reading drops to zero, i can blip the throttle and 9 out of 10 times the readings will quickly jump back up to .75+ or something near the other bank and the car will run absolutely great. Then a after about another 10-15 seconds the probe voltage begins to drop back down the symptoms come back. A check engine light eventually does come up, i've attached all the codes that are present. Misfires on all 8 cylinders.

I pulled the plenum and swapped ICV, check the vacuum lines for leaks and i could not find any. Replaced the plastic elbow on the T fitting that goes on the throttle body side of the ICV. Swapped all 8 coil packs with no change, swapped O2 sensors with no change.

The car is running an Alpha N tune so the MAFs don't make a difference. I put the old tune back on and it did not change the symptoms of the car, it acted exactly the same.

inpa-codes (1)inpa-codes (2)inpa-codes (2)inpa-codes (2)inpa-codes (2)



Finally solved!

Eliminated the MAF code, there was some questionable wiring done.
Now i'm getting a O2 code via the K+DCAN cable.



O2-sensor-code-from-inpa

That is likely because the MAFs are toast, but you may need to run the car a few hundred miles to let it re-adapt. Relative filling looks to high for idle. Pretty sure that is calc load which should be 18%. If you go back to Alpha then you will be stuck with bad adaptions. Regardless of what companies are saying we never see the adaptions change on Alpha and the report is always that middle of the road reading which seems to be INPA lying.



The bank 1 O2 sensors were crossed with the bank 2 O2 sensors. Whoever did the clutch install messed it up and the owner has been driving the car like that since and throwing money at parts randomly. He failed to tell me that it started once the clutch was installed.

This explains why when the car was running alpha-N, it would be extremely sporadic. The car relies heavily on the O2 because there is no maf. One bank was getting fueling increased and the other decreased. The increased side would not throw codes and the lean side would. It also explains why the car went back to normal when you revved it, it didn't need the O2 sensors and was relying on the throttle/cam/crank position sensors to calculate fuel ratios.

The MAFs helped calm the car down a little bit because it had a second input from the MAFs which were trying to adjust the fuel trims, but they could only do so much before the car threw a fuel trim code.

Everything is fixed and the car is running just like it should now.

PS:Special thanks for tradin1’s sharing at www.m5board.com



http://www.obdexpress.co.uk/

Oznake: car diagnostic tool

03.08.2016. u 09:50 | 0 Komentara | Print | # | ^

VXDIAG VCX NANO 5054 odis 3.0.3 vs VAS 5054A odis 3.0.1 vs 5054 plus



This table here is aimed to clarify differences among wifi VXDIAG VCX NANO 5054 odis 3.0.3, VAS 5054A odis 3.0.3, 5054 plus odis 3.0.1.





















Product NameVXDIAG VCX NANO 5054VAS 5054AVAS 5054 Plus

VXDIAG VCX NANO 5054

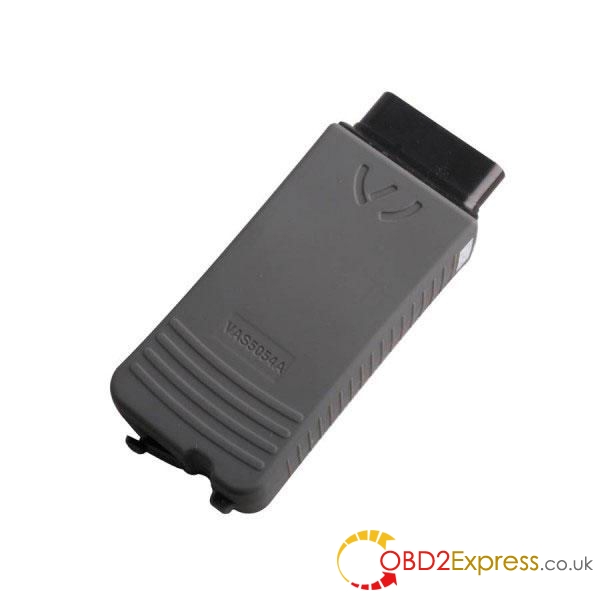

VAS 5054A



VAS 5054 Plus


Price€72.50€93.00€90.00
OriginalYes, it’s originalNo, it’s Chinese copyNo, it’s Chinese copy
Software VersionODIS V3.03ODIS V3.0.1ODIS V3.0.1
UpdateUpdate via download linkvia CD/emailvia CD/email
Operation System WIN 7 32 bits / WIN 7 64 bitsWindows 7 32bitWindows 7 32bit
LanguageEnglish/Japanese/Portuguese/

Romanian/Korean/Dutch/Polish/

Turkish/Spanish/French/Italian/

Croatian/Danish/German/

Swedish/Finnish/Slovenian/

Czech/Russian/Greek/Chinese
English/Japanese/Portuguese/

Romanian/Korean/Dutch/Polish/

Turkish/Spanish/French/Italian/

Croatian/Danish/German/

Swedish/Finnish/Slovenian/

Czech/Russian/Greek/Chinese
English/Japanese/Portuguese/

Romanian/Korean/Dutch/Polish/

Turkish/Spanish/French/Italian/

Croatian/Danish/German

/Swedish/Finnish/Slovenian/

Czech/Russian/Greek/Chinese
ConnectionWiFi and USB ConnectionBluetooth and USB ConnectionBluetooth and USB Connection



(Bluetooth Chip AMB2300, work stable)
DiagnosisYesYesYes
Online codingYes, if you have ID to log inYes, if you have ID to log inYes, if you have ID to log in
UDS ProtocolYesYesYes
Support VehicleVW, AUDI, SKODA, SEAT Bentley and LamborghiniVW, AUDI, SKODA, SEAT Bentley and LamborghiniVW, AUDI, SKODA, SEAT Bentley and Lamborghini
ConclusionYou are advised to buy VXDIAG NANO 5054 because of

- the best price (about €20 cheaper than vas504a and 5054 plus)

- the newest ODIS 3.0.3 for the new VAG models

- connection via WiFi is more stable than that via Bluetooth

http://www.obdexpress.co.uk/service/vxdiag-vcx-nano-5054-odis-303-vs-vas-5054a-odis-301-vs-5054-plus-9383.html

Oznake: car diagnostic tool

03.08.2016. u 03:42 | 0 Komentara | Print | # | ^
